10. Removal and installation of the projector covers

10.1 Removal of the lamp cover

Necessary tools
Flat screwdriver
How to remove

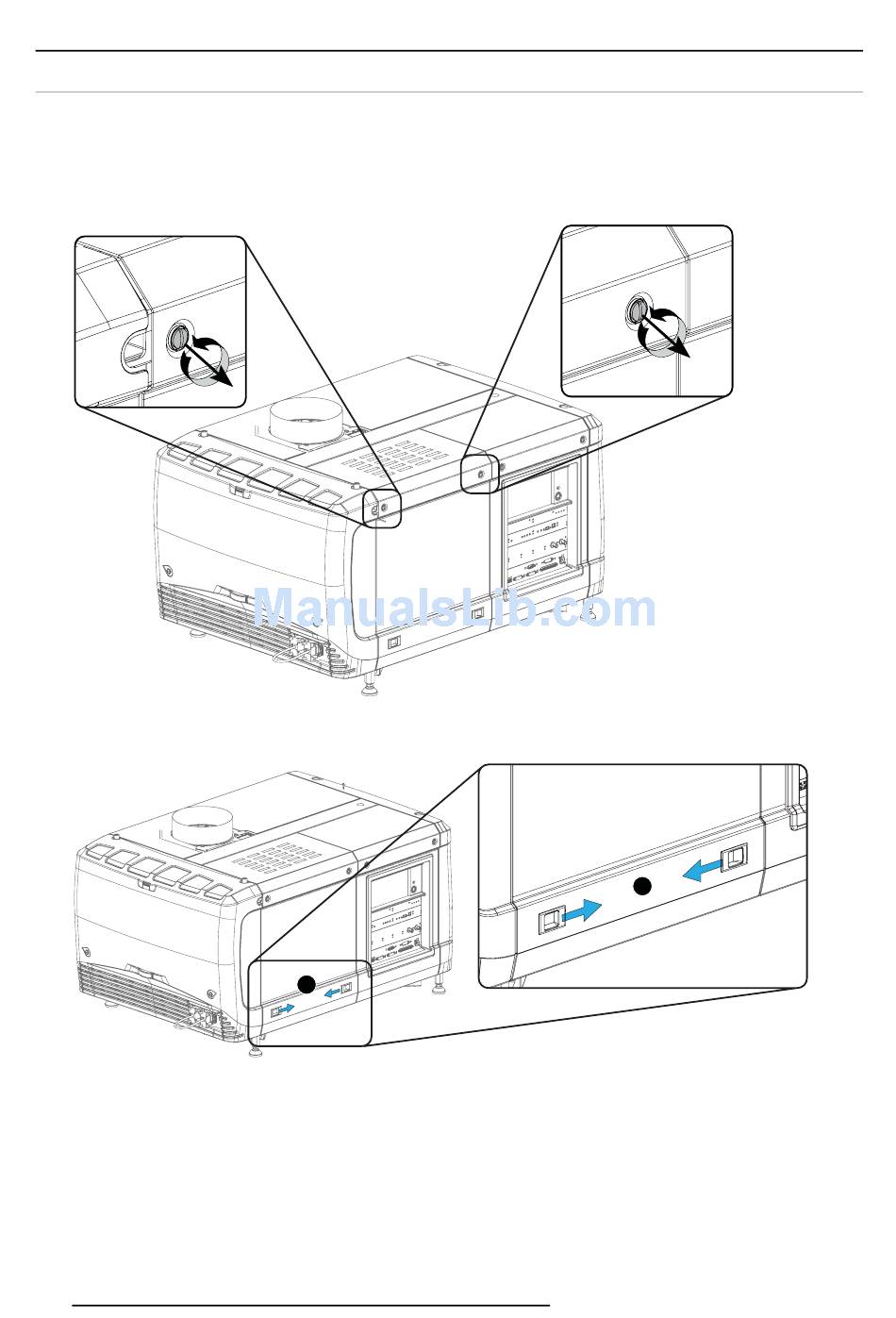

1. Release both captive screws on top of the lamp cover.
Image 10-2
Lamp cover, fasting screws
2. Push both lock to each other to release the locks and pull at the same time the bottom side of the cover away form the projector.
Image 10-3
Lamp cover, locks
3. Take off the cover.
132
