Ruckus Wireless SmartCell Gateway 200 Command Line Interface Reference Manual page 22

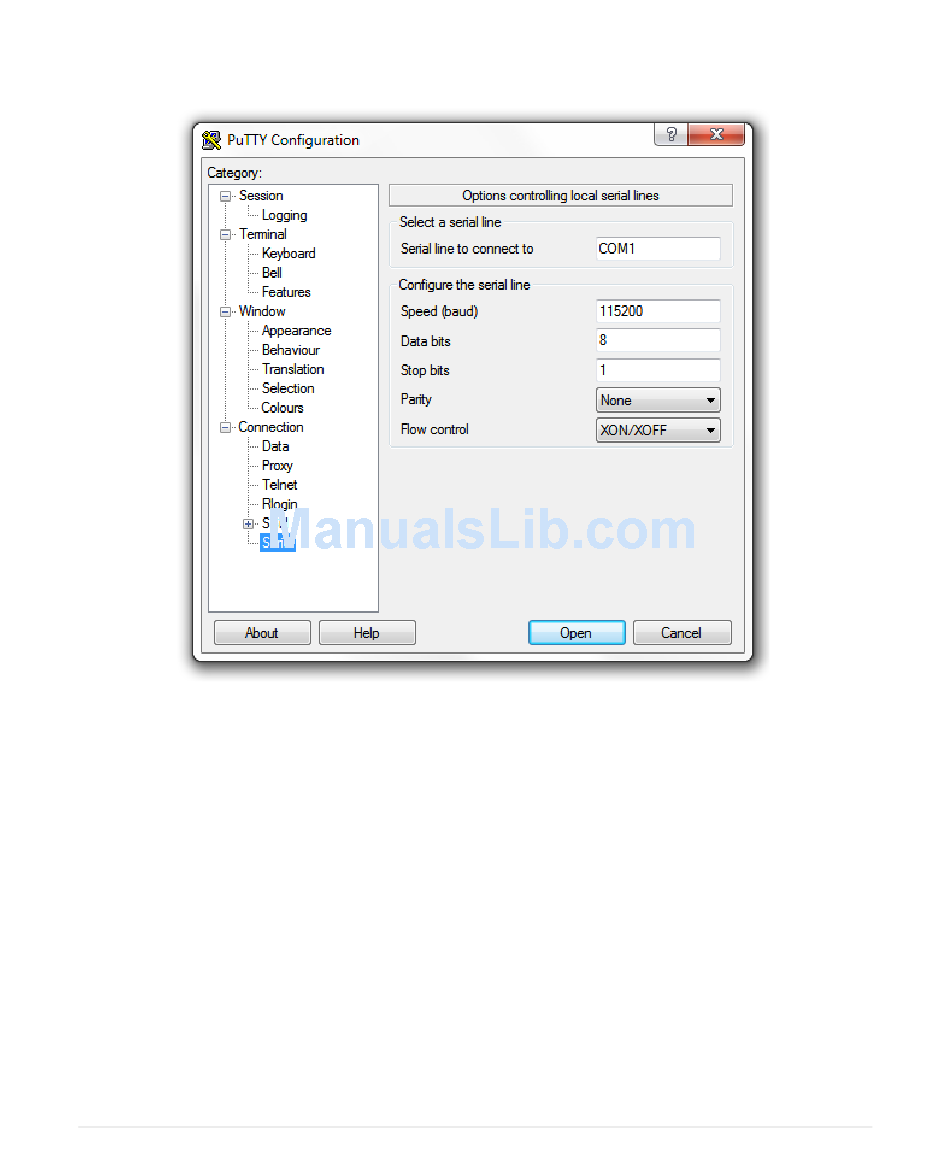

Figure 5. PuTTy's default serial connection setting
4 Configure the serial connection settings as follows. See
• Serial line to connect to: Type the COM port name to which you connected
the RS-232 cable.
• Bits per second: 115200
• Data bits: 8
• Stop bits: 1
• Parity: None
• Flow control: None
SCG200, vSZ-H and SZ300 Command Line Interface Reference Guide for SmartZone 3.5.1, 800-71515-001 Rev A
Introduction to the Controller Command Line Interface
Accessing the Command Line Interface
Figure 6.
22
