Using Serial Connection

If you have connected the administrative computer to the console port on the
controller using an RS-232 serial to RJ45 cable, follow these steps to start and
configure the SSH client.
1 Start PuTTY. The PuTTY Configuration dialog box appears, showing the Session
screen as seen in
2 In Connection type, select Serial if you are connecting via serial cable.

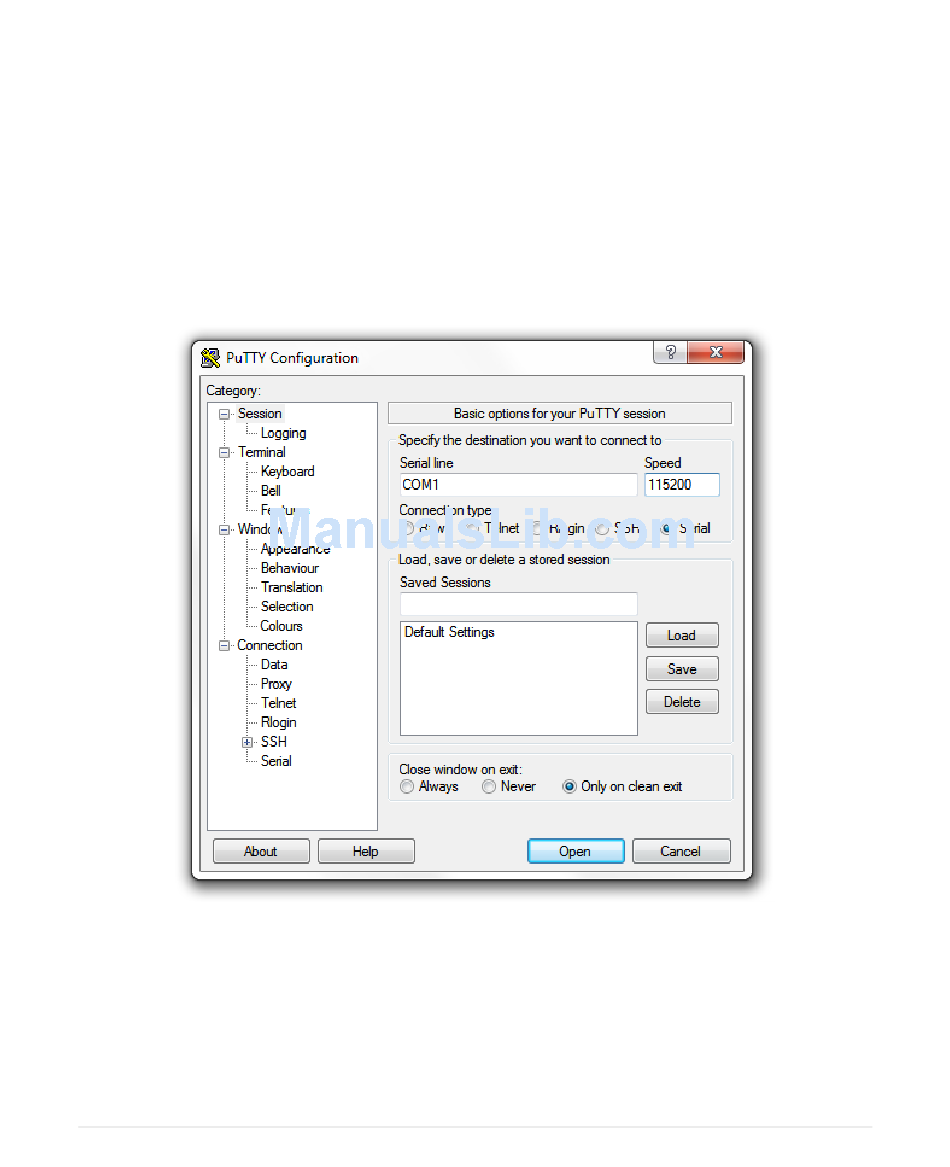

Figure 4. Selecting serial as a connection type
3 Under Category, click Connection > Serial. The serial connection options appear
on the right side of the dialog box, displaying PuTTY's default serial connection
settings. See
SCG200, vSZ-H and SZ300 Command Line Interface Reference Guide for SmartZone 3.5.1, 800-71515-001 Rev A
Figure 4.
Figure 5.
