Ruckus Wireless SmartZone 300 Quick Setup Manual

SmartZone 300
Quick Setup Guide
This Quick Setup Guide provides basic instructions for setting
up the Ruckus Wireless SmartZone 300 (SZ300) on the
network. For information on advanced configuration and
management options, see the Getting Started Guide and
other appropriate documents, which are available for
download from the Ruckus Wireless Support website:
https://support.ruckuswireless.com/documents
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
このガイドの日本語版は
https://support.ruckuswireless.com
でご覧ください。
이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
Licensing Information
The SmartZone 300 (SZ300) comes pre-shipped with 10,000
temporary AP Capacity Licenses, which are valid for a period
of 90 days from when the SZ300 is configured via the initial
setup configuration. For operation beyond 90 days, you
MUST buy permanent AP Capacity licenses. The purchased
Licenses MUST be activated for them to become valid.
The management of the AP Capacity Licenses and the ability
to activate the permanent License will be through the Ruckus
Wireless Support Portal (https://support.ruckuswireless.com).
An email will be sent to the User that is identified on the
Purchase Order and full instructions as to how to activate the
Licenses is included in the email. As a guide, full instructions
can be found at https://support.ruckuswireless.com/activate.
Using the LiMAN (license management) portal on the Ruckus
Wireless Support website, you can assign licenses to or from
©
Copyright 2017 Brocade Communications, Inc.
Published November 2017, Part Number 800-71711-001 Rev A
a SZ300 or move them to another SZ300 (see a summary of
LiMAN features in the table below). To physically manage the
distribution of licenses from the Support website to the actual
SZ300, connect the SZ300 directly to the Internet.
NOTE: In the event that the SZ300 is not connected to the
Internet, you can download the actual licenses from the
Support Portal and manually upload to the specific SZ300.
For step-by-step instructions on how to activate the SZ300's
licenses, see Step 5: Activate the SZ300's Licenses
3.
TABLE 1 LiMAN features and how to activate them on the SZ300
LiMAN Features SZ300 Online
(Connected to the
Internet)
• Register SZ300 No action required.
controllers, The SZ300 syncs
licenses, support with LiMAN
entitlement automatically within
24 hours and
• Add capacity
applies the
licenses to
appropriate
SZ300
licenses.
controllers
• Remove licenses
from one SZ300
and add to
another
https://
Warning Message for Missing AP Support
Capacity License
Starting in SmartZone release 3.2, Ruckus Wireless has
introduced a "Warning Message" feature to notify you if
Support for AP Capacity Licenses has not been purchased.
This is a warning only in SmartZone 3.2 with full enforcement
occurring in a later release. This warning will only be displayed
when you try to upgrade to a release beyond SZ 3.2 (i.e. SZ
3.2.1).
The message is purely informational and does not affect your
ability to upgrade nor does it impact your service in any way.
In order to upgrade your network, without any warning
messages, you will need to have both a Controller Support
Contract and Support on the AP Licenses as well.
For more information on purchasing of a Support for AP
License, contact your Wireless Ruckus Sales representative.
Before You Begin
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• Release Notes and other user documentation are available
at https://support.ruckuswireless.com.
• Software upgrades are available at
on page
support.ruckuswireless.com/software.
• Software license and limited warranty information are
available at https://support.ruckuswireless.com/warranty.
SZ300 Offline
Package Contents
(Disconnected

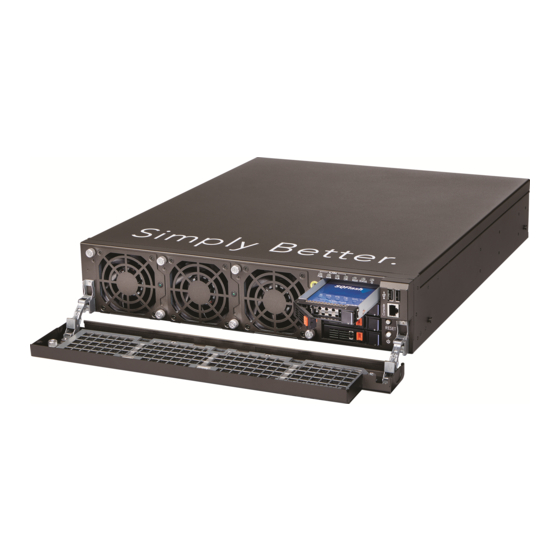

• One SmartZone 300 appliance with two AC
from the Internet)
supply units and AC power cords
Three steps
• One rack mount kit
required:
• Two front rack mount brackets and handles with fasteners
1. Download the
• Service Level Agreement/Limited Warranty Statement sheet
license file
• Regulatory Statement sheet
from LiMAN.
• This Quick Setup Guide
2. Log on to the
SZ300, and
What You Will Need
then upload
the license file
• An administrative computer (admin PC) with a connection to
from LiMAN.
the local area network
3. Download the
• A web browser, such as Internet Explorer, Mozilla Firefox,
license
Google Chrome or Apple Safari
response file
• The IP address, netmask, gateway and DNS server
from the
addresses assigned to the SZ300—a static network
SZ300, and
address is strongly recommended.
then upload it
to LiMAN.
Step 1: Connect the SZ300 to the Network
1. Connect the SZ300 to a convenient power source, and
press the power switch on the front panel. The Alarm LED
shows a flashing red light as the SZ300 starts up. When
the SZ300 has started up successfully, the Alarm LED
turns to a solid green light.
2. Obtain an Ethernet cable. Connect one end of the
Ethernet cable to any of the LAN ports with a yellow label
on the SZ300, and connect the other end to your
network's switch or router. See
Reference on page 2 for more information.
NOTE: The SZ300 is a Universal Plug and Play (UPnP)
device. Once you connect it to the network, it will
automatically configure itself, obtain an IP address, and
make its presence known to other devices on the
network.
https://
or DC power
or DC power cables.
Ethernet Port Color
Page 1 of 4
