Ruckus Wireless SmartZone 300 Quick Setup Manual

SmartZone 300
Rack Mount Kit
Quick Setup Guide

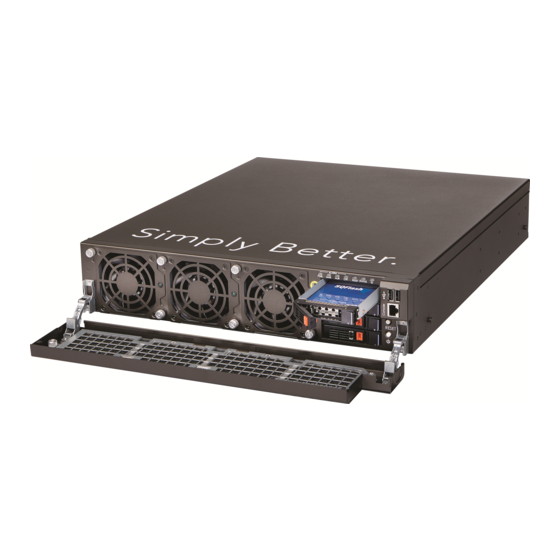

This Rack Mount Kit Quick Setup Guide provides step-by-
step instructions on how to install the Ruckus SmartZone 300
(SZ300) into a server rack using the Ruckus Wireless 902-
S330-0000 kit. The SZ300 is standard 2U server designed for
mounting in a standard EIA 19" server rack.
Before You Begin
Before deploying your Ruckus Wireless product, verify that all
items listed in Package Contents below are included in the
package. If any item is damaged or missing, notify your
authorized Ruckus Wireless sales representative. Also, make
sure that you have prepared the required hardware and tools.
NOTE: Some standard EIA 19" server racks have square or
slotted mounting holes. The fasteners in this kit may not
work with these racks, requiring the customer to supply
rack-mount fasteners.
DANGER: Observe careful handling. The kit may contain
sharp edges.
NOTE: Using sliding rails could result in non-compliance
with Seismic Zone 4 requirements of NEBS-3 certification.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
このガイドの日本語版は
https://support.ruckuswireless.com
でご覧ください。
이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
©
Copyright 2017 Brocade Communications, Inc.
Published November 2017, Part Number 800-71712-001 Rev A
What You Will Need
• No. 1 Phillips screwdriver
• Ruler for measuring the rack depth
Package Contents
A complete rack mount installation kit includes two rail
assemblies and all of the items listed below:
• Two outer rails with front and rear mounting brackets
• Two inner rails with safety stops
• Eight M4 x 4mm long pan head screws
• Two M5 x 20m long pan head screws
Rack Mount Kit Quick Setup Guide
• This
Step 1: Separate the Rail Assemblies into
Outer and Inner Rails
1. Extend the inner rail until it locks.
2. Slide the plastic tab towards the direction of the extension
lock and pull it in the direction of the arrow (as shown in
the following figure) to release the inner rail.
3. Remove the inner rail from the outer rail assembly.

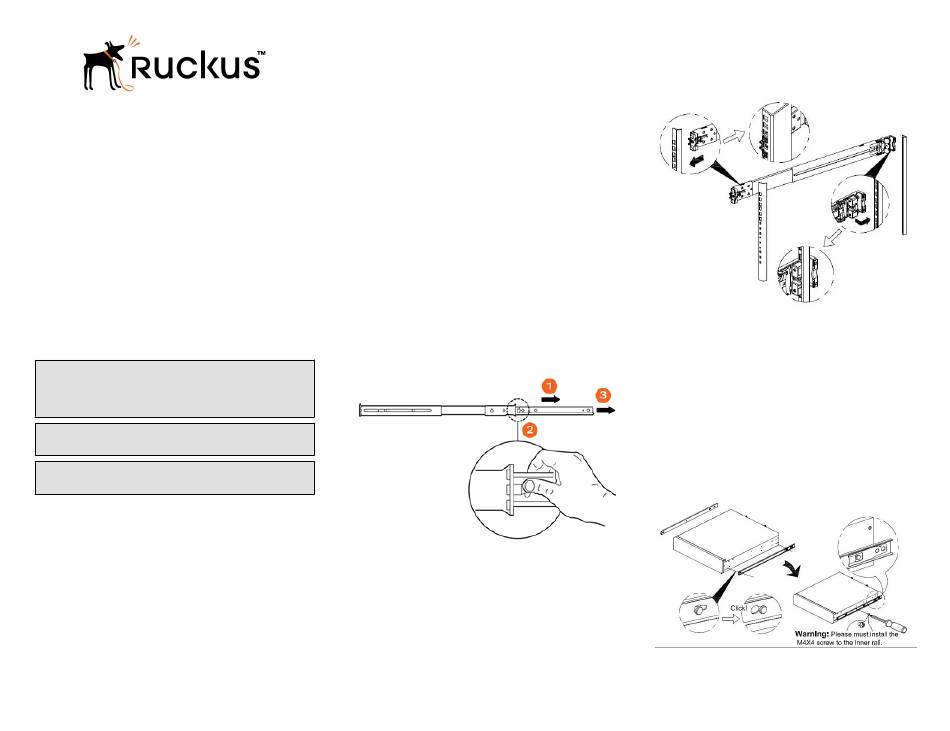

FIGURE 1 Separate the rail assemblies
Step 2: Assemble the Outer Rails to the
Inside of the Rack
1. Extend the outer rail assemblies with the front stamped
portion protrusions positioned into the slots of the rack.
https://
Repeat this on the opposite end of the rail until its
protrusions are positioned in the back of the rack.
2. Repeat Step 1 on the adjacent side of the rack. Ensure
that the correct slot levels on the rack are aligned with the
adjacent side rail assembly as shown in the following
figure.
FIGURE 2 Assemble the outer rails
Step 3: Attach the Inner Rails to the Server
1. Attach the inner rail to the side of the server chassis. To
do this, align the protrusion on the side of the server to
the keyhole cutout on the inner rail, and slide it in until you
hear a click.
2. Use one (1) M4 x 4 screw to fasten the inner rail to the
server chassis. Fasten until snug.
3. Repeat Steps 1 and 2 above for the other side of the
chassis.
FIGURE 3 Attach the inner rails to the server chassis
Page 1 of 2
