Ruckus SmartZone 300
Spare Hard Disk Drive
Quick Setup Guide for
SmartZone 5.1
This Quick Setup Guide provides basic instructions for
ordering and installing a spare hard disk drive (HDD) into
the Ruckus SmartZone 300 (SZ300) controller.
For information on advanced configuration and
management options, see the Getting Started Guide and
other appropriate documents, which are available for
download from the Ruckus Support website:
https://support.ruckuswireless.com/documents.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版 https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à
l'adresse suivante https://support.ruckuswireless.com.
このガイドの日本語版は https://
support.ruckuswireless.com でご覧ください。
이 가이드의 한국어 버전은 웹 사이트 (https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta
guía en https://support.ruckuswireless.com.
Hard Disk Drive Ordering Information
To order a spare hard disk drive for the SmartZone 300
controller, contact Ruckus Support.
For information on how to contact Ruckus Support, visit
https://support.ruckuswireless.com/contact-us. When
asked for the part number, provide the information in the
following table.
Part Number Description
902-S350-0000 Kit, Spare (FRU), hard disk drive, SZ300
Copyright © 2018 ARRIS Enterprises LLC. All rights reserved.
Published November 2018, Part Number 800-71882-001 Rev A
Opening the Front Bezel
The front bezel helps prevent accidental access to the
controller's modules. Before you can install a module,
you must open the front bezel.
NOTE: If the controller is mounted in a rack with
adjacent units below the unit where a module needs to
be serviced, Ruckus recommends extracting the
controller from the rack approximately 5cm (2 in.). This
will provide clearance of the bezel when rotated out
towards you.
Follow these steps to open the front bezel.
1. With the controller in front of you, place your fingers
on both sides of the front bezel.
2. Pull the bezel toward you until it opens.
3. Gently lower the bezel to expose the controller's
replaceable modules.

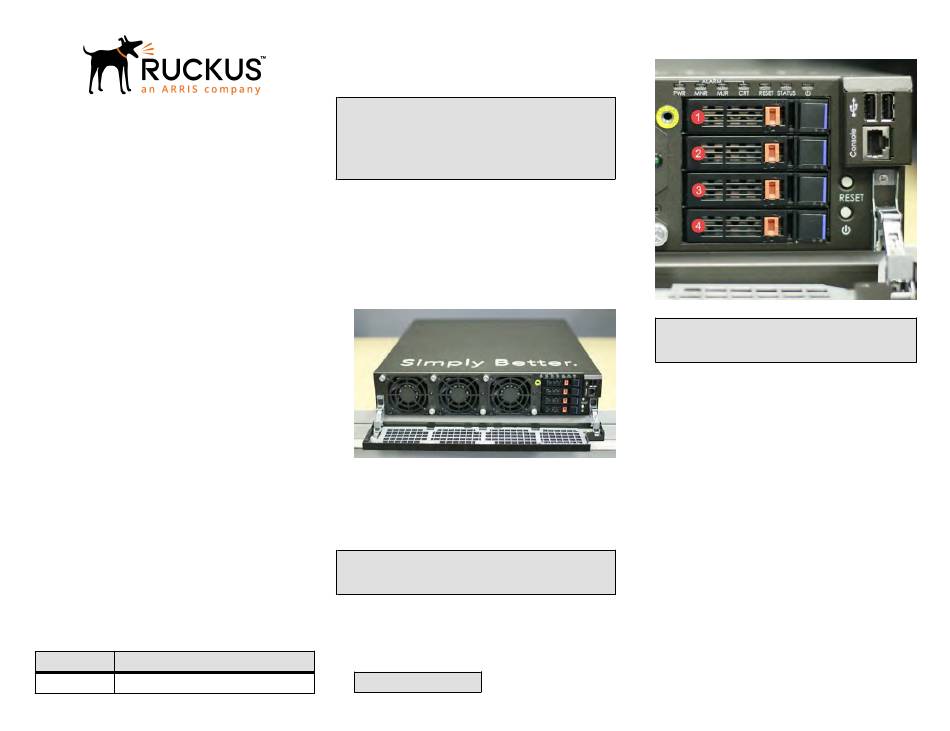

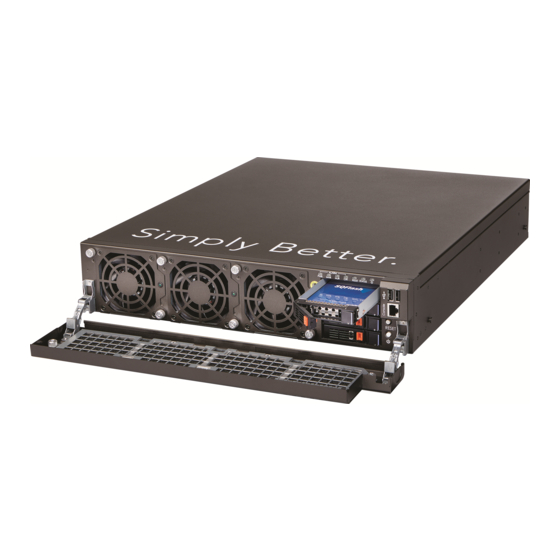

FIGURE 1 Controller with the front bezel open
Installing a Spare Hard Disk Drive
After you have obtained a spare hard disk drive and
opened the front bezel of the SmartZone 300 controller,
you are ready to install the drive.
NOTE: Both hard disk drives (HDDs) are redundant and
hot-swappable. You do not need to power off the
controller to swap a single failed HDD.
Follow these steps to install the hard disk drive.
1. On the front panel, identify the HDD that you want to
replace. From the top of the front panel, disk tray 1 is
for a solid state drive (SSD), and disk trays 2 and 3 are
for HDDs (see the following figure).
NOTE: Tray 4 is unused.
FIGURE 2 Disk trays on the front panel of the controller
NOTE: If you are replacing a failed disk, check the
LED of each tray. A red or amber LED indicates that
the disk is not operational.
2. Unlock the disk tray by moving the orange disk tray
lock to the left (unlock) position.
3. Press the black/blue tray button to open the tray
handle.
