Rack Mount Kit Quick Setup Guide

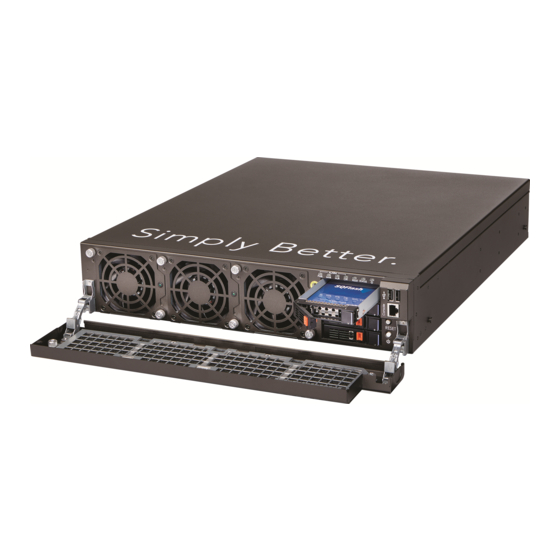

This Rack Mount Kit Quick Setup Guide provides step-by-step
instructions on how to install the Ruckus Wireless SmartZone
300 (SZ-300) into a server rack using the Ruckus Wireless
902-S330-0000 kit. The SZ-300 is standard 2U server
designed for mounting in a standard EIA 19" server rack.
Before You Begin
Before deploying your Ruckus Wireless product, verify that all
items listed in Package Contents below are included in the
package. If any item is damaged or missing, notify your
authorized Ruckus Wireless sales representative. Also, make
sure that you have prepared the required hardware and tools.
NOTE: Some standard EIA 19" server racks have square or
slotted mounting holes. The fasteners in this kit may not work
with these racks, requiring the customer to supply rack-mount
fasteners.
WARNING! Observe careful handling. The kit may contain
sharp edges.
NOTE: Using sliding rails could result in non-compliance with
Seismic Zone 4 requirements of NEBS-3 certification.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の⽇本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com)
에서 확인하시기 바랍니다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
Copyright © 2017 Ruckus Wireless, Inc.
Published June 2017, Part Number 800-71631-001 Rev A
Required Hardware and Tools
• No. 1 Phillips screwdriver
• Ruler for measuring the rack depth
Package Contents
A complete rack mount installation kit includes two rail
™ assemblies and all of the items listed below:
300
• Two outer rails with front and rear mounting brackets
• Two inner rails with safety stops
• Eight M4 x 4mm long pan head screws
• Two M5 x 20m long pan head screws
• This Rack Mount Kit Quick Setup Guide
Step 1: Separate the Rail Assemblies into
Outer and Inner Rails
#1 Extend the inner rail until it locks.
Slide the plastic tab towards the direction of the extension
#2
lock and pull it to direction of the arrow to release the inner
rail.
Remove the inner rail from the outer rail assembly.
#3

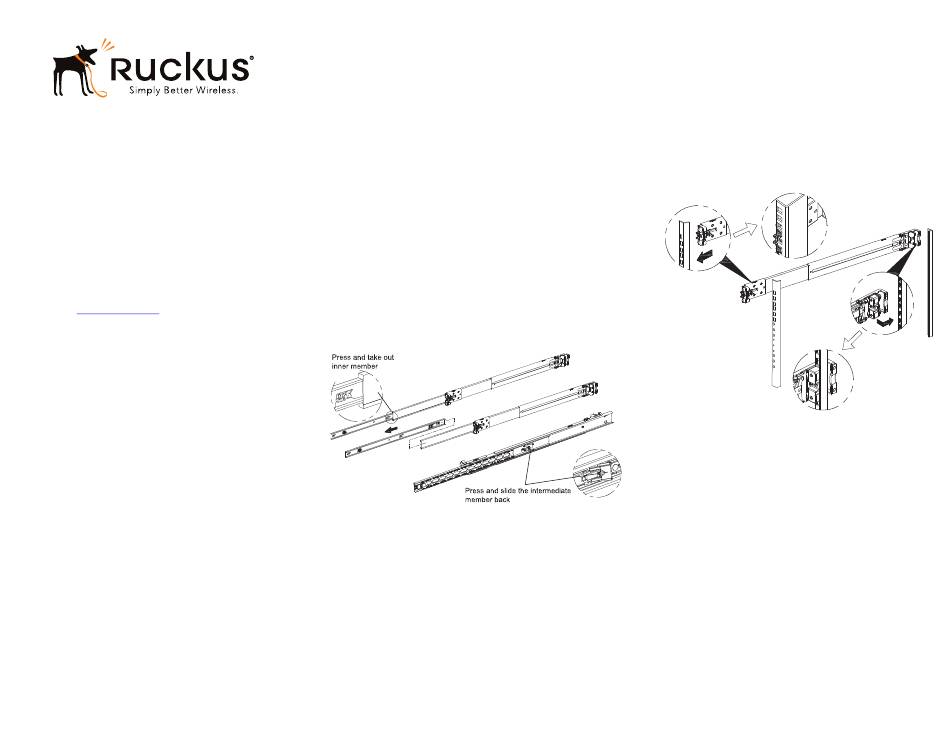

Figure 1. Separate the rail assemblies
Step 2: Assemble the Outer Rails to the
Inside of the Rack
Extend the outer rail assemblies with the front stamped
#1
portion protrusions are positioned into the slots of the rack.
Repeat this on the opposite end of the rail until its
protrusions are positioned in the back of the rack.
Repeat step 1 on the adjacent side of the rack. E nsure that
#2
the correct slot levels on the rack are aligned with the
adjacent side rail assembly.
Figure 2. Assemble the outer rails
[
Page 1 of 2
