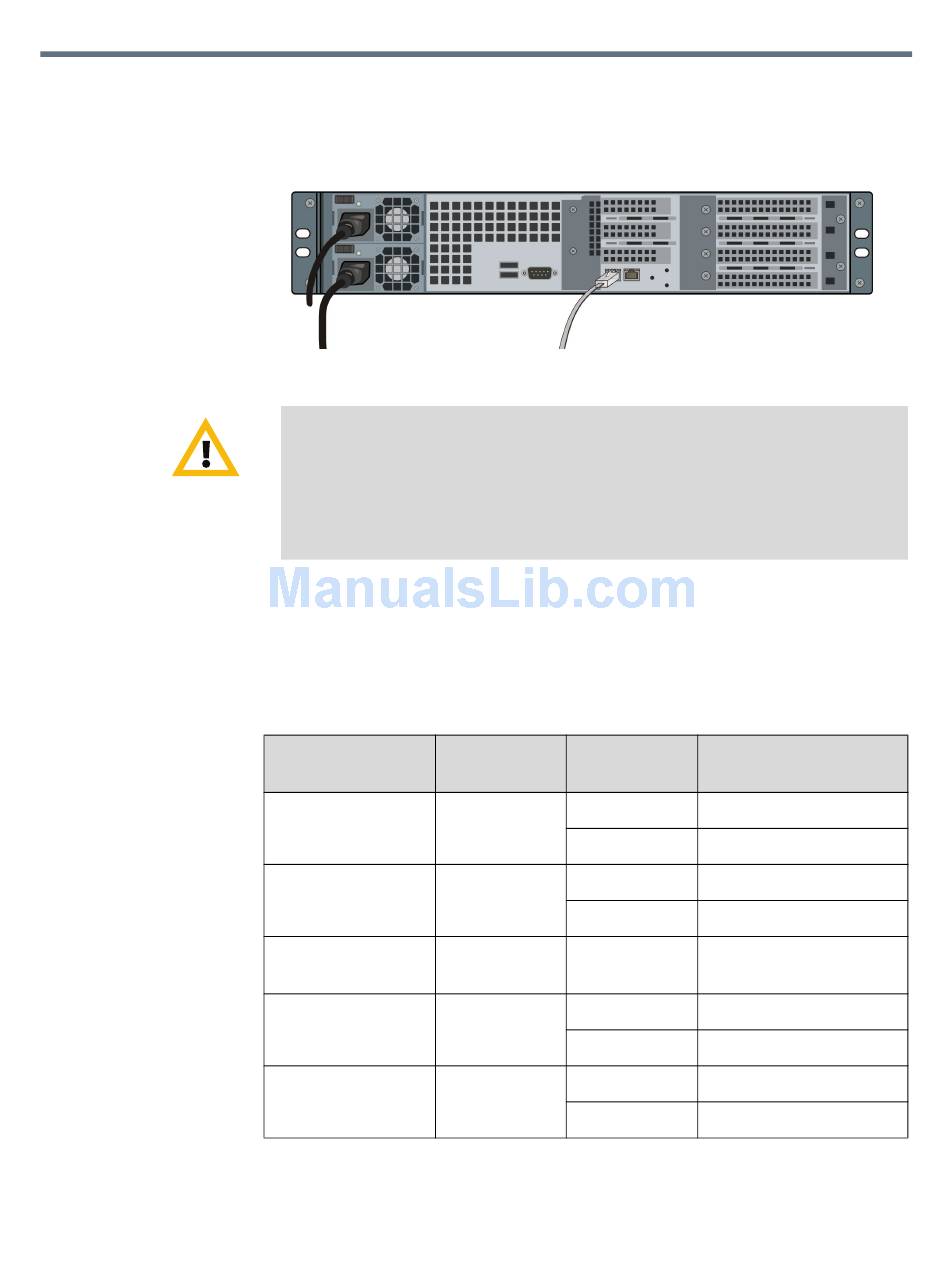

3 Power on the system.
Connect a network cable to LAN1 in the back of the system.
4
5 Turn on the power switch.
• The socket outlets to which this apparatus is connected must be installed near the
equipment and must always be readily accessible.
• In order to fully isolate the equipment, both power cords should be disconnected.
Otherwise the system remains energized.
• The LAN2 is used for network separation purpose, you need to remove the dummy
cover to achieve this.
When the system is running, indicators on the front panel indicate operating
conditions of the system. Refer to the table below for the indicators and their
explanations.
Panel
Indicator Identifier
LAN1 Activity LAN1 LED
Status Indicator
LAN 2 Activity LAN 2 LED
Status Indicator
System Status STATUS LED
Indicator
Hard Disk Status HDD LED
Indicator
Power Status Power LED
Indicator
Status Explanation
Green Network connection
Off No network connection
Green Network connection
Off No network connection
Blinking blue System active
Blue Hard disk idle
Blinking blue Hard disk access
Green Power normal
Blinking red Power alarm
