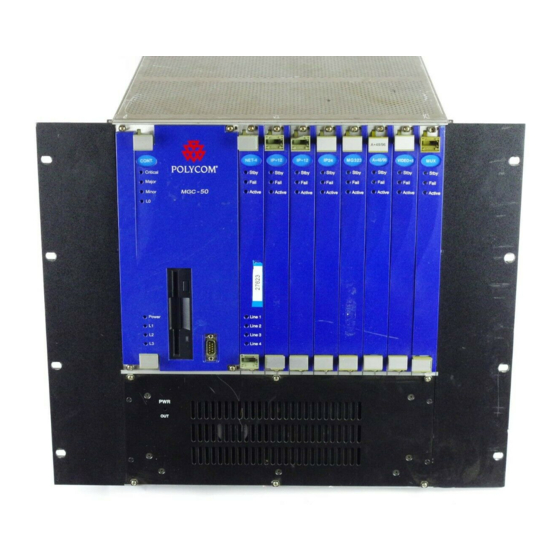

MGC-25/50/100
MGC+50/100

Release Notes

Version 7.5
February 2006
DOC2134A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGC+100 and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom MGC+100

Summary of Contents for Polycom MGC+100

  • Page 1: Release Notes

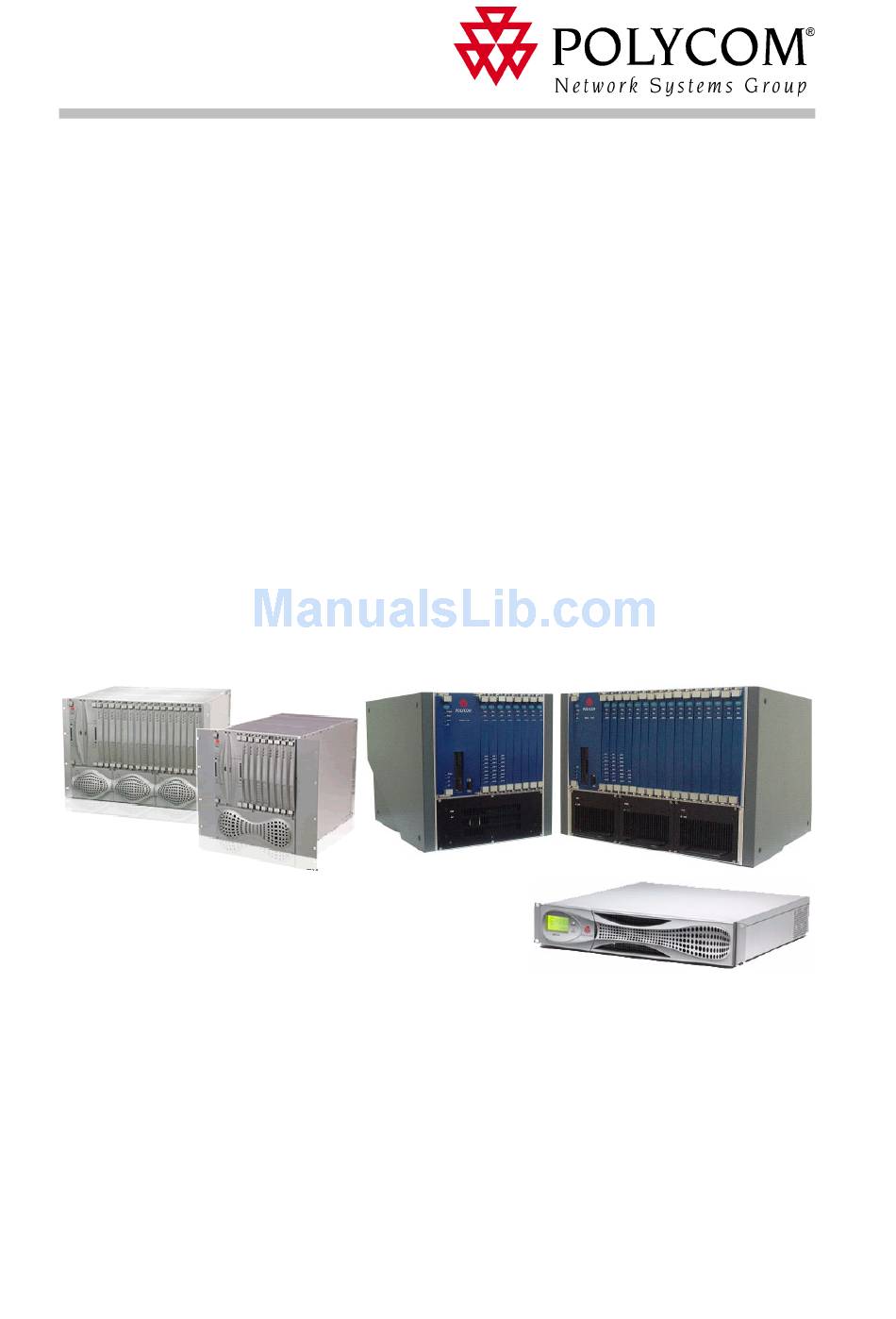

    MGC-25/50/100 MGC+50/100 Release Notes Version 7.5 February 2006 DOC2134A...
