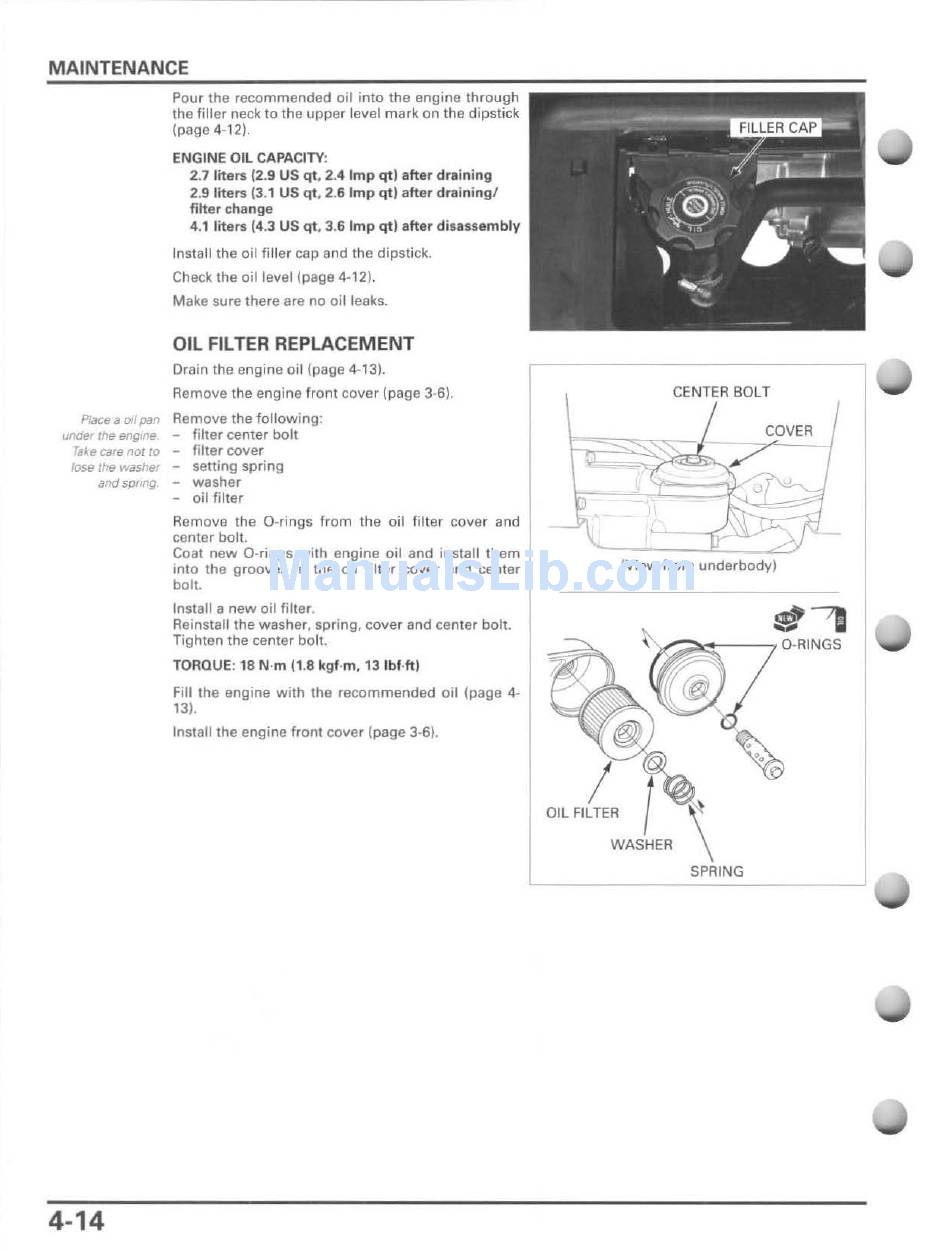

MAINTENANCE
Pour the recommended oil into the engine through
the filler neck to the upper level ma rk on the dipstick
(page 4- 12).
ENGINE Oil CAPACITY:
2.7 liters 12.9 US qt, 2.4 Imp
qt)
after draining
2.9 lit ers (3.1 US qt, 2.6 Imp qtJ afte r drainingl
fitter change
4.1 liters (4.3 US qt, 3.6 Imp
qt)
afte r disassembly
Install the oil filler cap and the dipstick.
Check the oil level (page 4-12).
Make sure there are no oil leaks.
OIL FILTER REPLACEMENT
Drain the engine oil (page 4-13).
Remove the engine front cover (page 3-6).
Place
a
oil pan
Remove the following :
under the engme -
filter center bolt
Ta*e care not to - filter cover
lose the washer -
setting spring
and spnng -
washer
- oil filter
4-14
Remove the O-r ings from the oil filter cover and
center bolt.
Coat new O-rings with engine oil and install them
into the grooves in the oil fil t er cover and cen ter
bolt.
Install
a
new oil filter.
Reinstall the washer, spring, cover and cen t er bolt.
Tighten the center bolt.
TORQUE: 18 N·m 11.8 kgf·m , 13Ibf.ft)
Fill the engine with the recommended oi l (page 4-
13).
Install the engine front cover (page 3-6).
CENTER BOLT
COVER
(View from underbody)
g~
" ' - - 7 O·RINGS
