X5_2: Digital Outputs - REXROTH EcoDrive Cs Project Planning Manual

Table of Contents

Advertisement

Rexroth EcoDrive Cs Drives

X5_2: Digital Outputs

Graphic Representation
Connection Cross Section
Connection of Digital Outputs
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Technical Data of the Terminal Connector

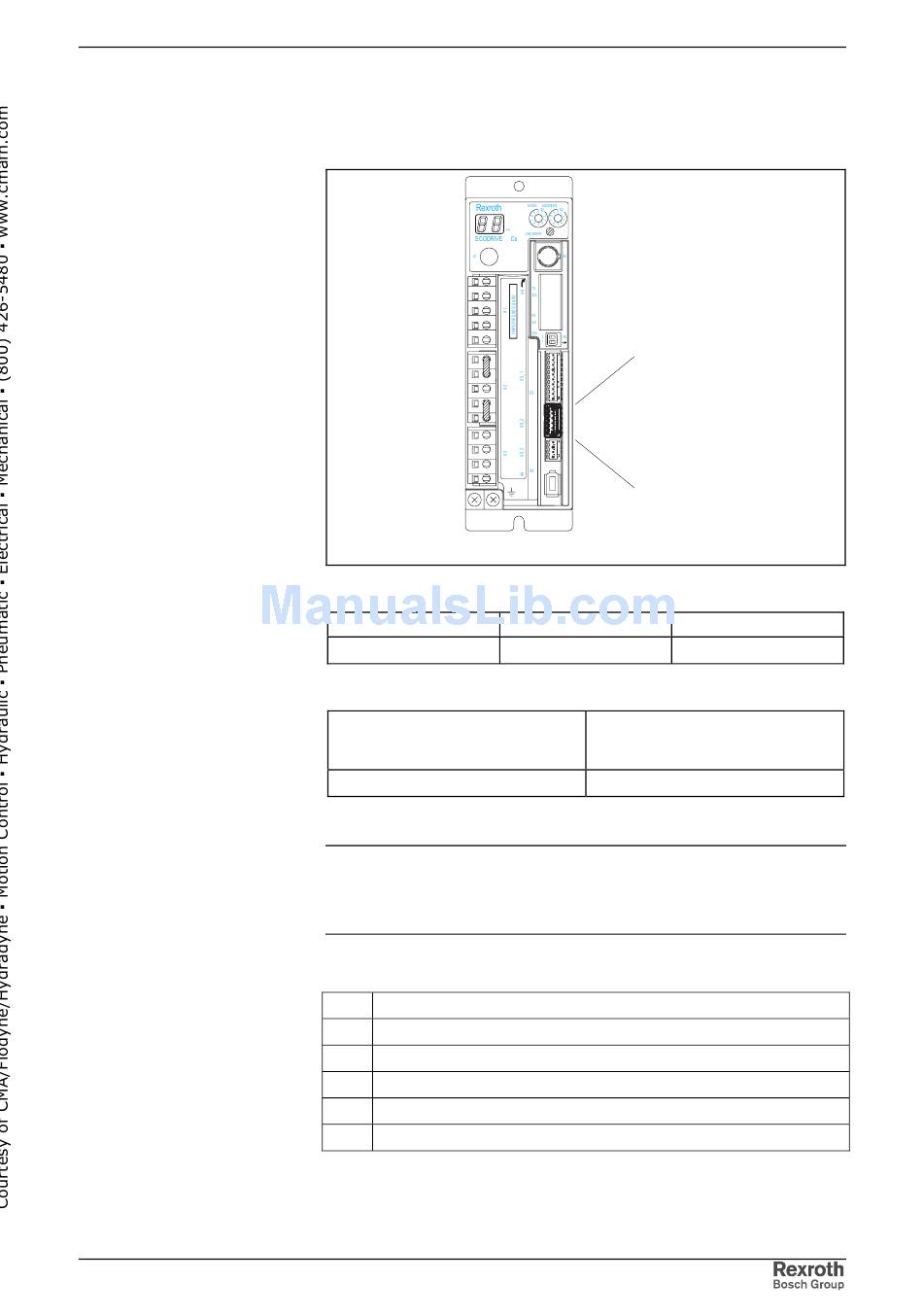

Fig. 5-30: Terminal connector X5_2
Design
Type
spring tension
Fig. 5-31: Design
Cross section
single-core
0,25 - 0.5
Fig. 5-32: Connection cross section
Note:
The digital outputs can be configured by means of the "Digital
outputs" firmware function in conjunction with the freely
configurable signal status word. The following paragraph
describes the default configuration.
Connections (Default Configuration)
6
"ready for operation" contact (relay output; N/O contact)
5
"ready for operation" contact (relay output; N/O contact)
4
OUT7
3
OUT8
2
0 V ext
1
+24 V ext
Fig. 5-33: Control outputs
Number of poles
6
[mm²]
Electrical Connections
Bb2
Bb1
OUT7
OUT8
0V_ext
+24V_ext
schnittstellen_X52.fh7
Type of design
socket on connector
Cross section in AWG
gauge No.
23 - 20
5-15
