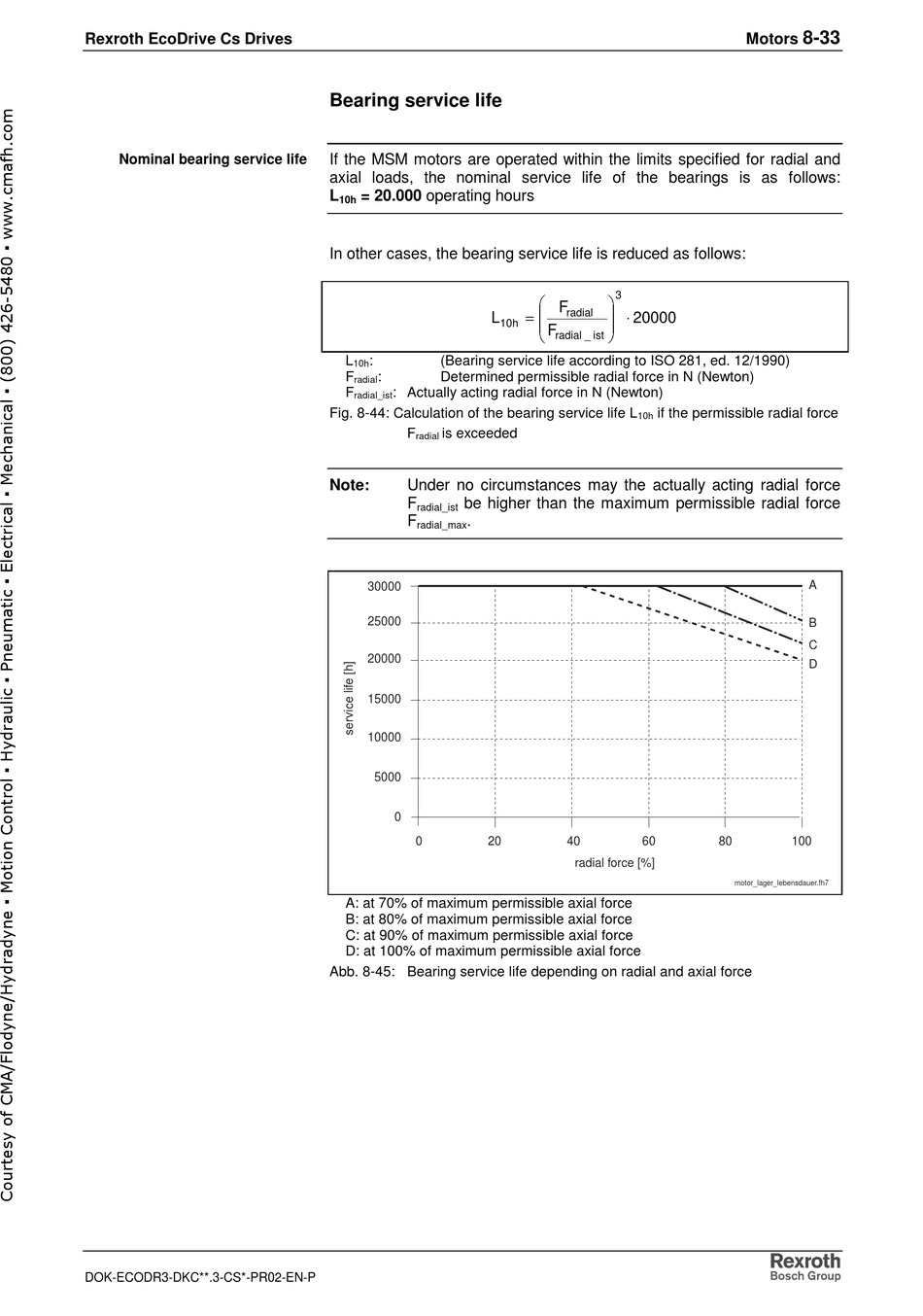

Bearing service life
If the MSM motors are operated within the limits specified for radial and
axial loads, the nominal service life of the bearings is as follows:
L
= 20.000 operating hours
10h
In other cases, the bearing service life is reduced as follows:
L
10
L
:
(Bearing service life according to ISO 281, ed. 12/1990)
10h
F
:
Determined permissible radial force in N (Newton)
radial
F
: Actually acting radial force in N (Newton)
radial_ist
Fig. 8-44: Calculation of the bearing service life L
F
is exceeded
radial
Note:
Under no circumstances may the actually acting radial force
F
be higher than the maximum permissible radial force
radial_ist
F
.
radial_max
30000
25000
20000
15000
10000
5000
0
0
20
A: at 70% of maximum permissible axial force
B: at 80% of maximum permissible axial force
C: at 90% of maximum permissible axial force
D: at 100% of maximum permissible axial force
Abb. 8-45: Bearing service life depending on radial and axial force
3
F
=
radial
⋅
20000
h
F
radial
_
ist
if the permissible radial force
10h
40
60
radial force [%]
8-33
Motors
A
B
C
D
80
100
motor_lager_lebensdauer.fh7
