X1, Mains and Control Voltage

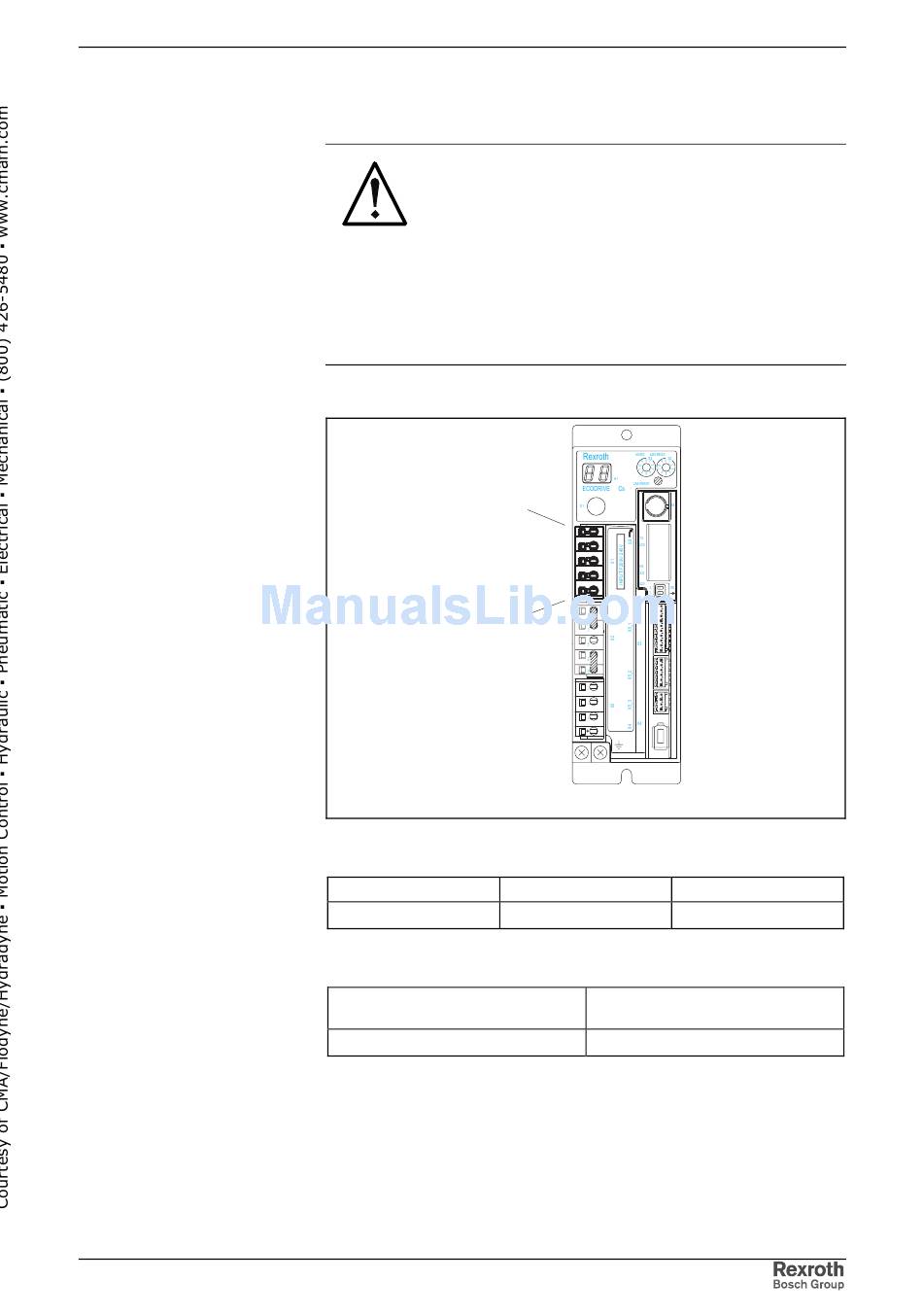

Graphic Representation
Connection Cross Section
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
DANGER
Technical Data of the Terminal Connector
Fig. 5-6: Terminal connector X1
Design
Type
spring tension
Fig. 5-7: Design
Max. connectable cross section
Fig. 5-8: Connection cross section
Connection of Mains and Control Voltage
See chapter 6 Mains and Supply Voltage Connection
Lethal electric shock caused by live parts with
more than 50 V!
⇒ Before starting to work on the drive controller switch
off the voltage supply via the main switch or the
circuit breaker.
Always mount or dismount both connectors (motor
⇒
connection and mains connection) at the drive
controller.
Observe the notes in the "Safety Instructions for
⇒
Electric Drives and Controls" chapter.
L1
L2
L3
L1C
L2C
schnittstellen_X1.fh7
Number of poles
5
[mm²]
2.5
Electrical Connections
Type of design
socket on connector
Cross section in AWG
gauge No.
12
5-5
