Control and Display Elements (H1, S1, S2, S3)

H1 (Diagnostic Display)

S1 (Button)

S2, S3 (Address Switch)

Address Switch S2, S3
Drive Address
H1
S1

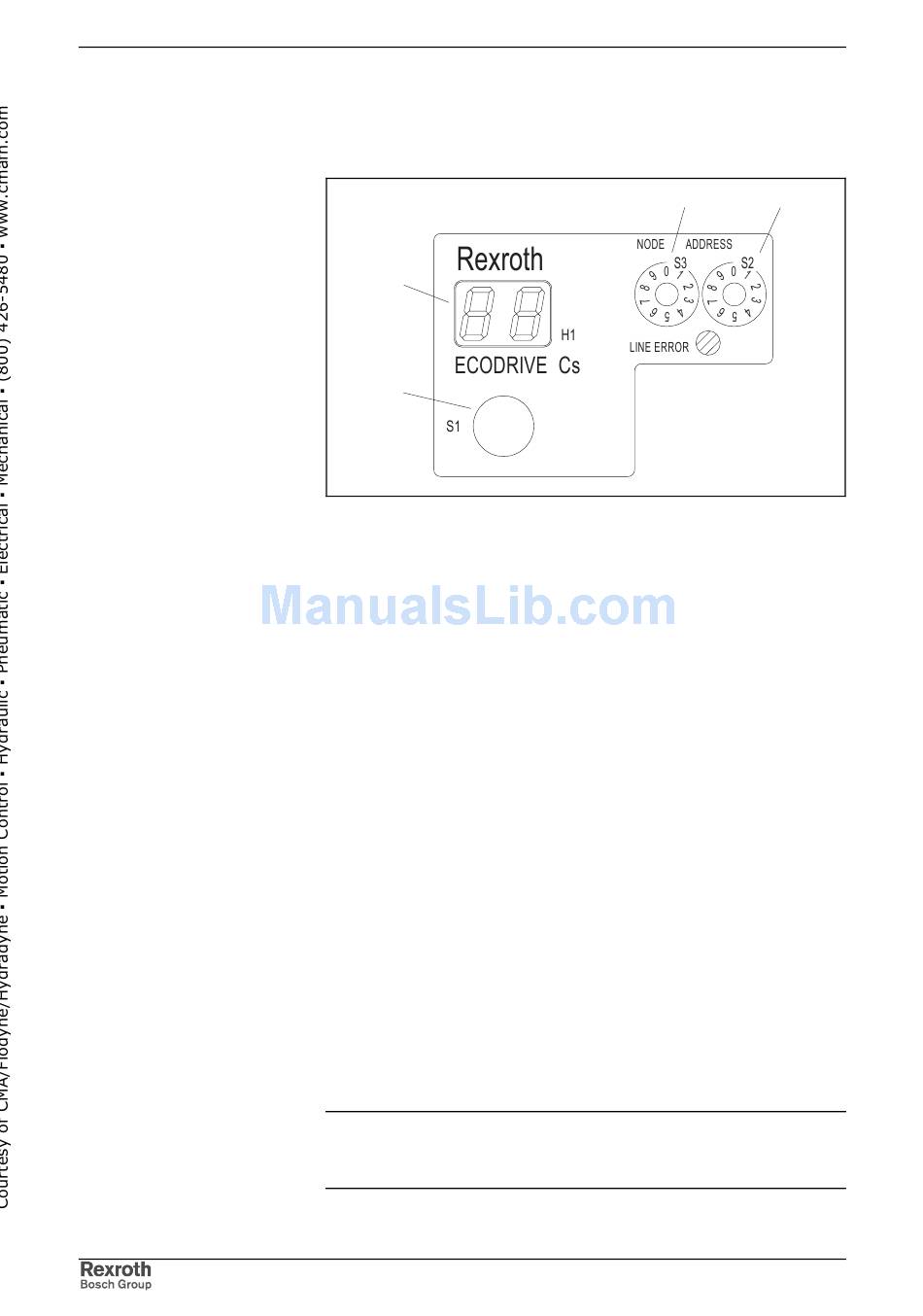

Fig. 4-16: H1: diagnostic display, S1: button, S2, S3: address switch
For display of the diagnostic messages (errors and operating states).
Depending on the situation the S1 button has different functions:
•
Normal operation:
Reset button for resetting error diagnoses.
•
Device initialization (after switching on the supply):
button for activating the bootstrap loader (firmware update)
•
With baud rate scan:
button for activating the manual mode
•
Commissioning:
During baud rate scan press button for at least 5 seconds to get into
the setting mode.
Switch for setting the drive address.
The address of the drive can be set by means of two ten-stage switches.
The address can be a number from 1 to 99.
Example:
switch setting S3 = 9 (tens unit)
switch setting S2 = 1 (unit)
drive address = 9 * 10 + 1 = 91
Note: The unit is supplied with the address not being pre-set.
The setting of switches S2 and S3 depends on the type series,
the firmware which is used or the desired drive address.
⇒ See Functional Description of firmware
