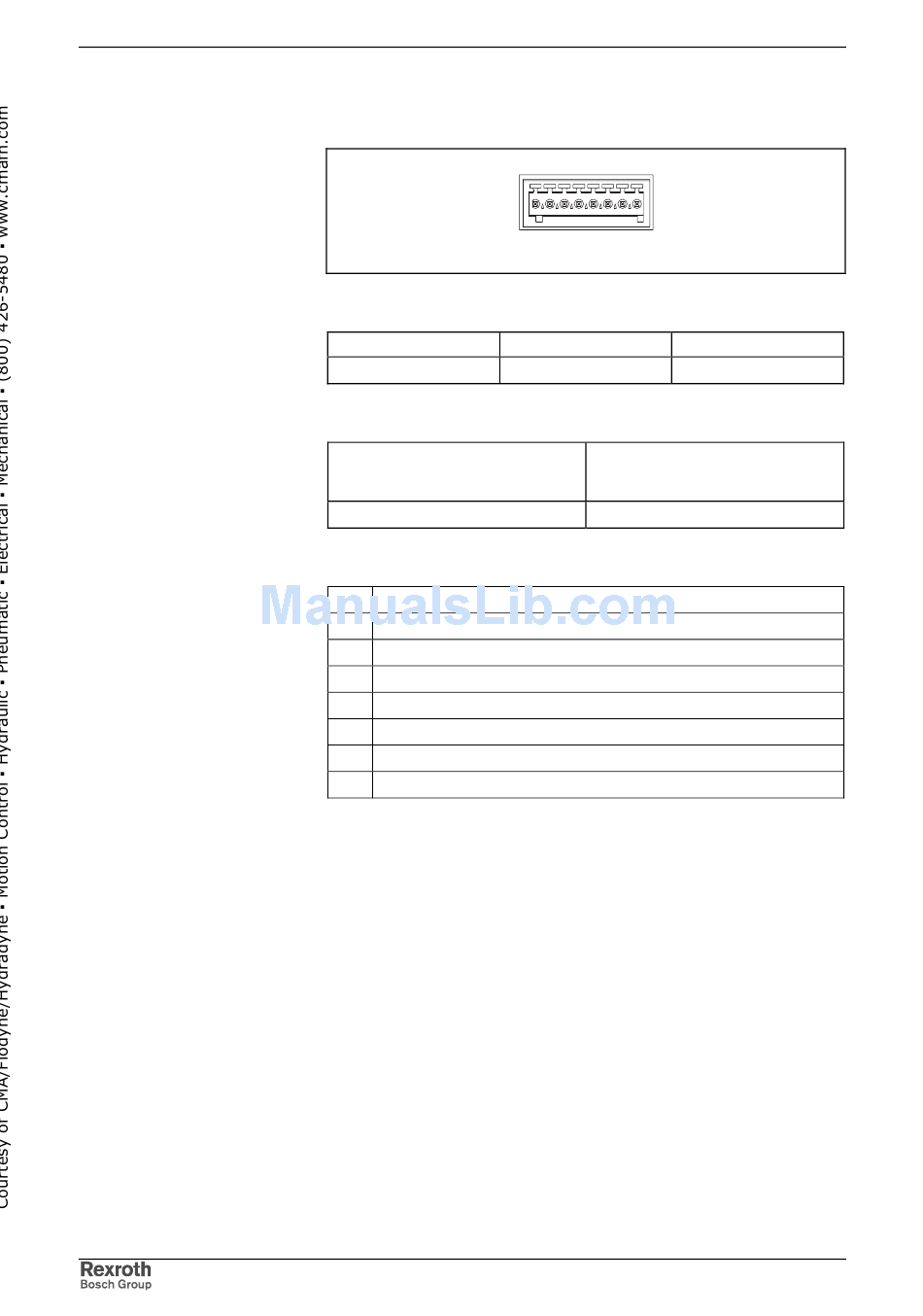

REXROTH EcoDrive Cs Project Planning Manual page 192

10-18
Additional Components
Illustration
Connection cross section
Connection
Interface X8
Fig. 10-24:
Design
Type
spring tension
Fig. 10-25: Design
Cross section
single wire
0,25 - 0,5
Fig. 10-26: Connection cross section
1 Hall sensor A
2 Hall sensor B
3 Hall sensor C
4 Motor temperature (IN)
5 Motor temperature (GND)
6 +5V (Power supply Hall sensor)
7 GND (Hall sensor)
8 GND
Fig. 10-27: Connection
1 2 3 4 5 6 7 8
geberadapter_X8.fh7
Connector X8
No. of pins
8
[mm²]
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Rexroth EcoDrive Cs Drives
Design
bushings
Cross section
in AWG
gauge no.
23 - 20
