Housing Materials

5
4

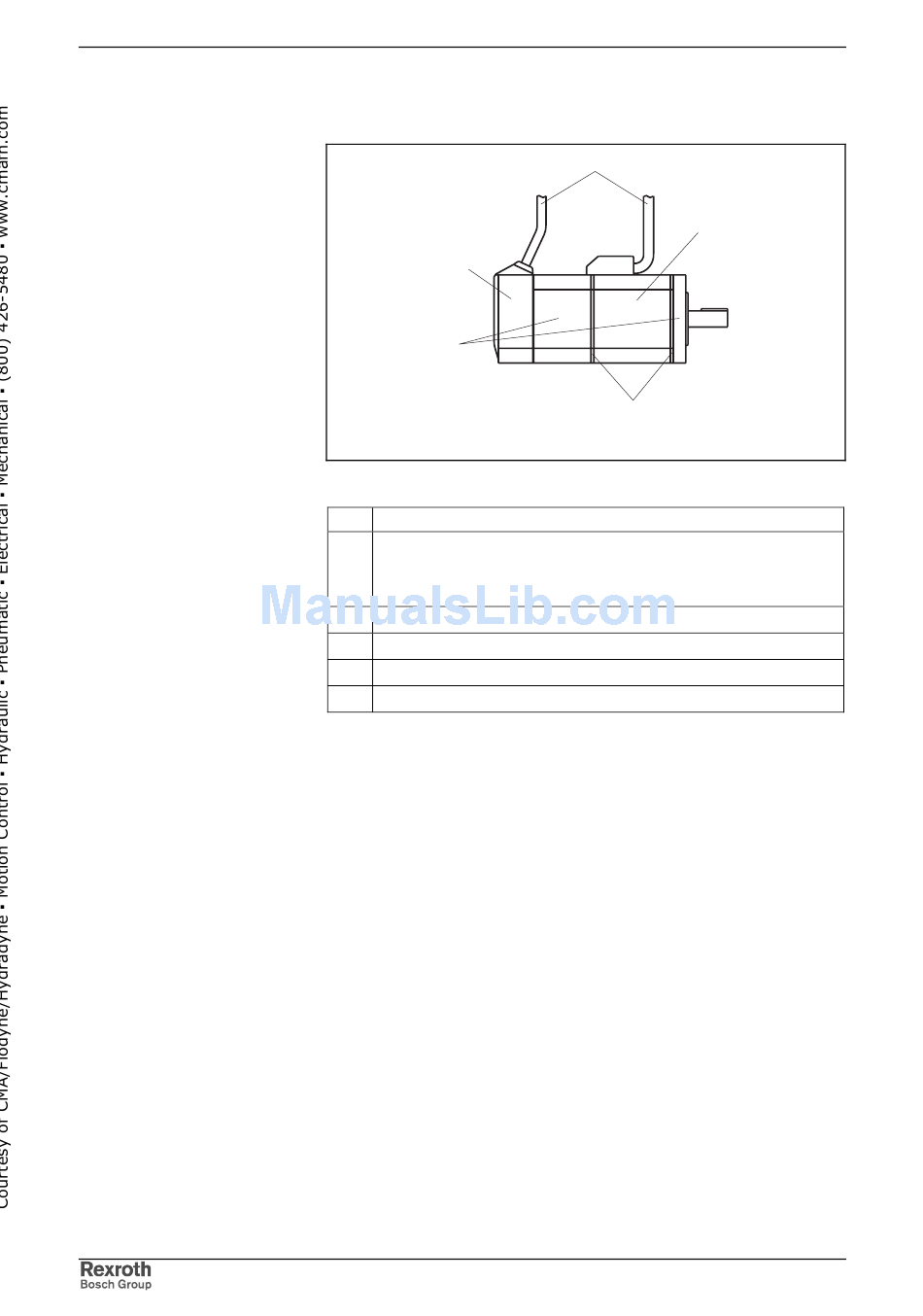

Fig. 8-38: Housing materials
No. Material
1 polyvinyl chloride resin;
(oil resistance: according to standard "JIS C 3005" the 20
test conditions: oil temperature: 70 °C; test time (cable in oil): 4 hours;
oil: machine oil 46 (from GENERAL))
2 aluminum; anodized
3 rubber
4 die-cast aluminum; bare
5 polyamide 46 (nylon 46)
Fig. 8-39: Materials
Rexroth EcoDrive Cs Drives
