Rexroth EcoDrive Cs Drives
9

Identifying the Components

9.1

Marking the Components

9.2

Type Plates

Type Plates at the Drive Controller

DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Each drive component is marked by a type designation.
A type plate is attached to all units including the motor.
A label (cable marker) is wrapped round the ready-made cable. The type
designation and length are indicated on this label. (The designation for the
cable itself - without connector - is printed on the cable sheath.)
The marking of accessories packed in bags is either printed on the bag or
indicated on an accompanying note.
2

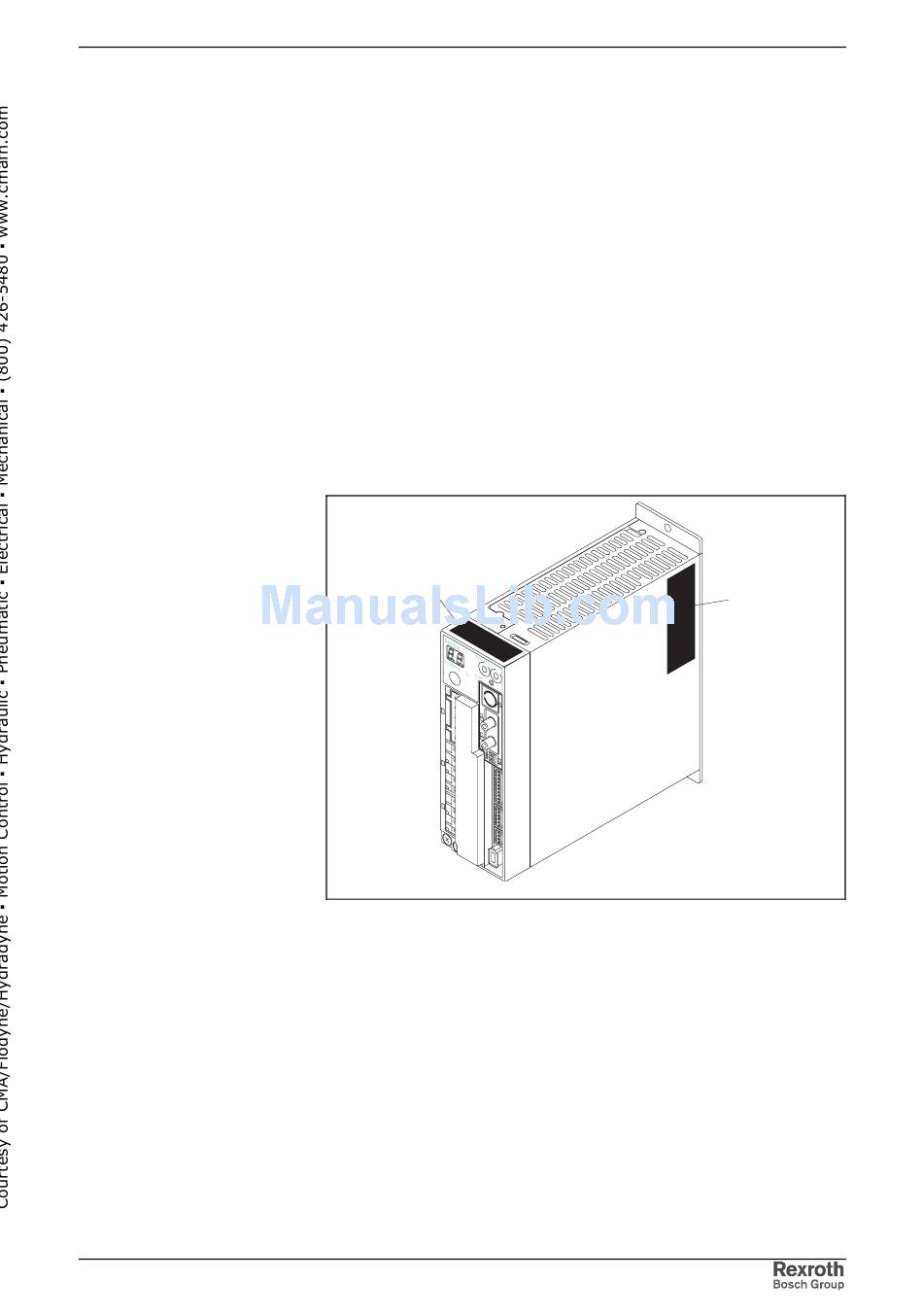

1: type plate 1
2: type plate 2
Fig. 9-1: Type plate arrangement at the drive controller
Identifying the Components
1
typenschilder_anordnung.fh7
9-1
