REXROTH EcoDrive Cs Project Planning Manual page 183

Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P

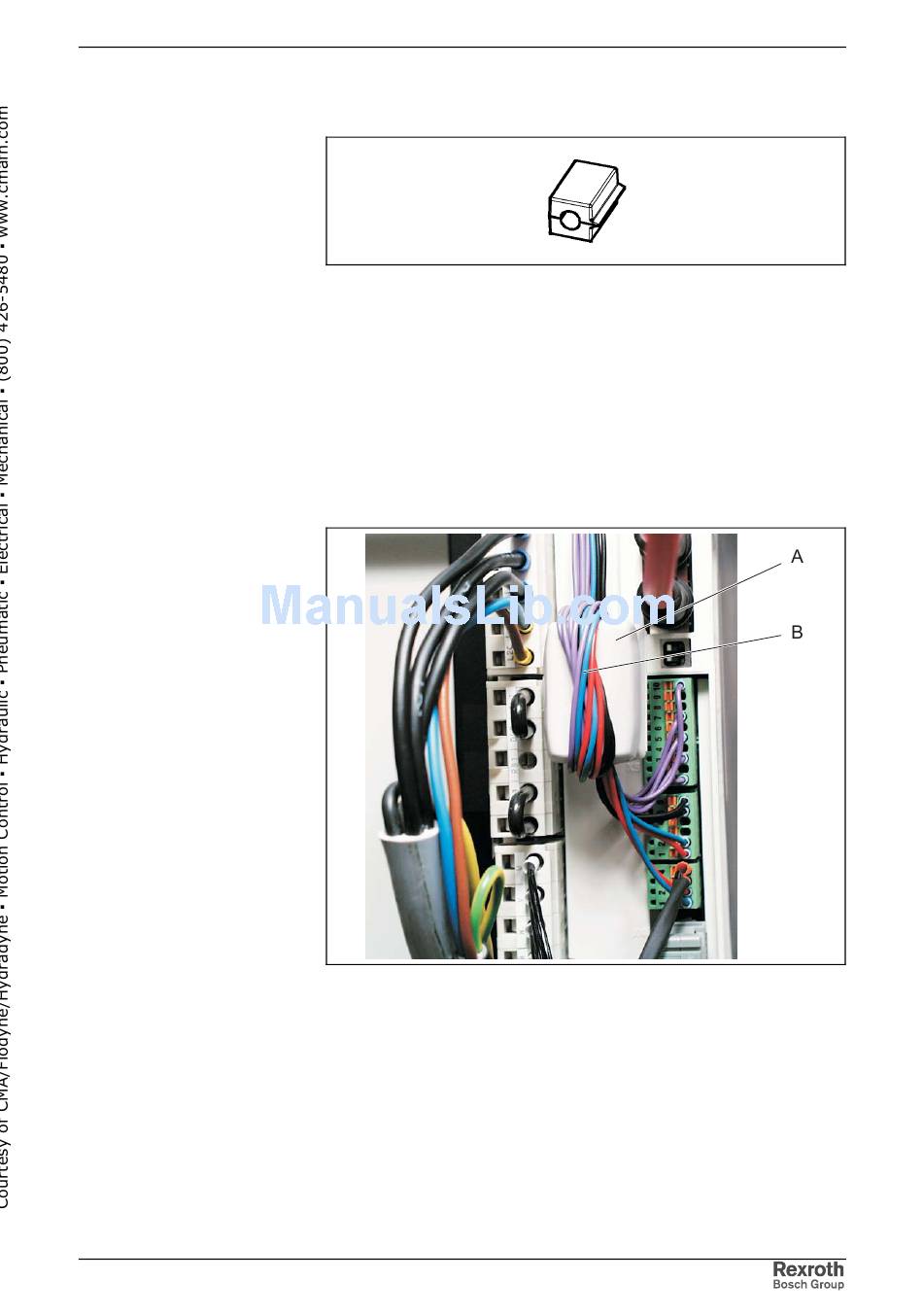

Folding Ferrite
Fig. 10-9: Folding ferrite
The folding ferrite reduces external electromagnetic interferences on the
inputs X5_1, X5_2 and X5_3.
How to Use the Folding Ferrite (see figure below):
• Open the folding ferrite
• Wrap control lines once around one half of the folding ferrite. Pay
attention to place the folding ferrite as near to the inputs X5_1, X5_2
and X5_3 as possible
• Close the folding ferrite
A: folding ferrite
B: control lines
Fig. 10-10: How to use the folding ferrite
Additional Components
10-9
