Rs232 Cable Ikb0041 - REXROTH EcoDrive Cs Project Planning Manual

10-6
Additional Components

RS232 Cable IKB0041

1
3,4,5
9
computer
2
RxD
3
TxD
5
GND
4
DTR
6
DSR
7
RTS
8
CTS
Secure solder joint with shrink hose (Pos. 7)!
order length = length of unfinished cable
INS0457

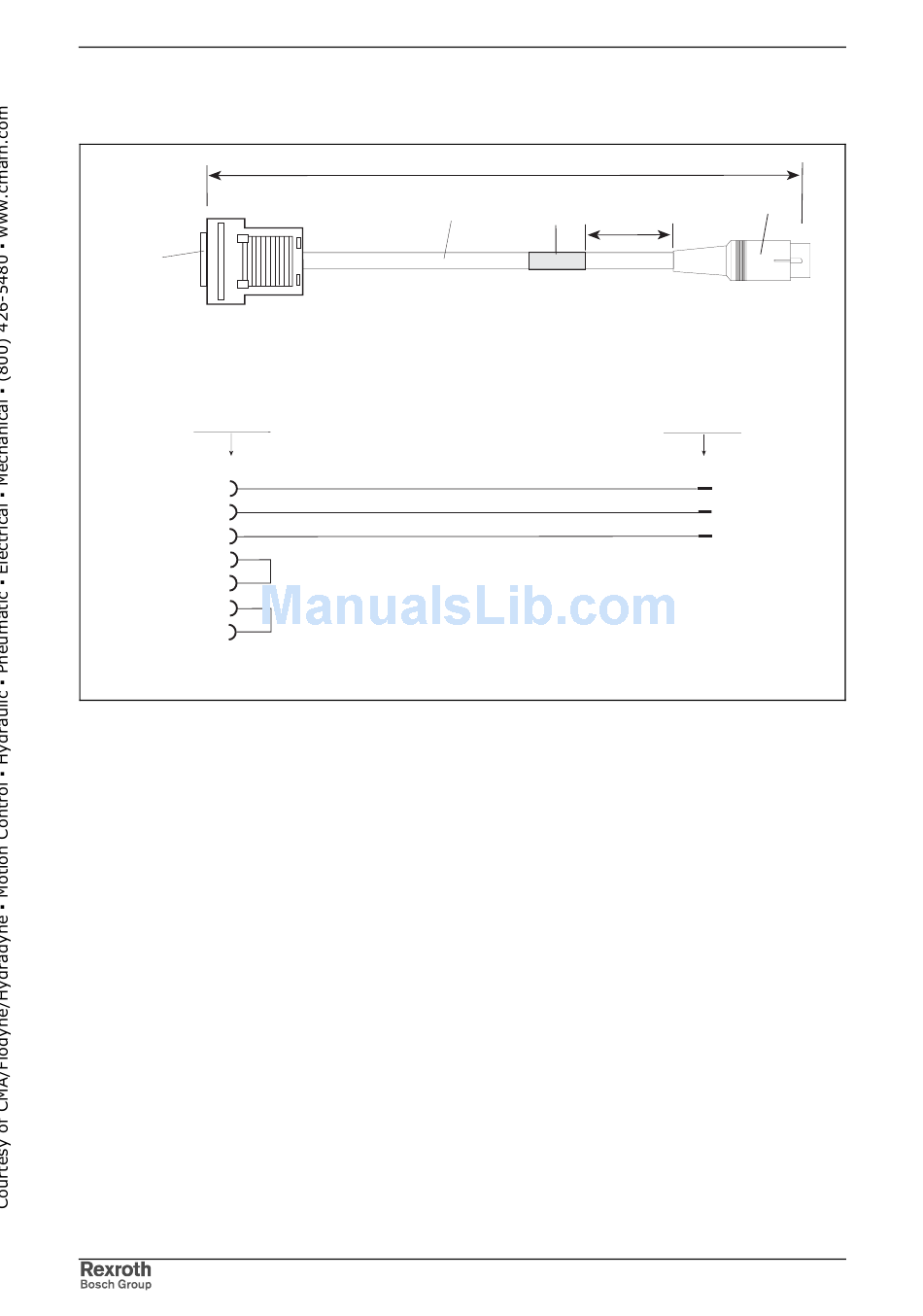

Fig. 10-6: RS232 cable
Cable IKB0041 replaces cable IKS0199 formerly used.
1
6
100
IKB0041
white
brown
green
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Rexroth EcoDrive Cs Drives
2
INS0663
amplifier
3
TxD
5
RxD
4
GND
