7-6
Designing the Control Cabinet
7.4

Wire Routing in the Control Cabinet

7.5

EMC in the Control Cabinet

•
Maintain a distance of at least 100 mm between power cables and
control or signal cables (e.g. feedback cables) or
•
separate cable duct with metal divider
Metal cable duct
Plastic cable duct

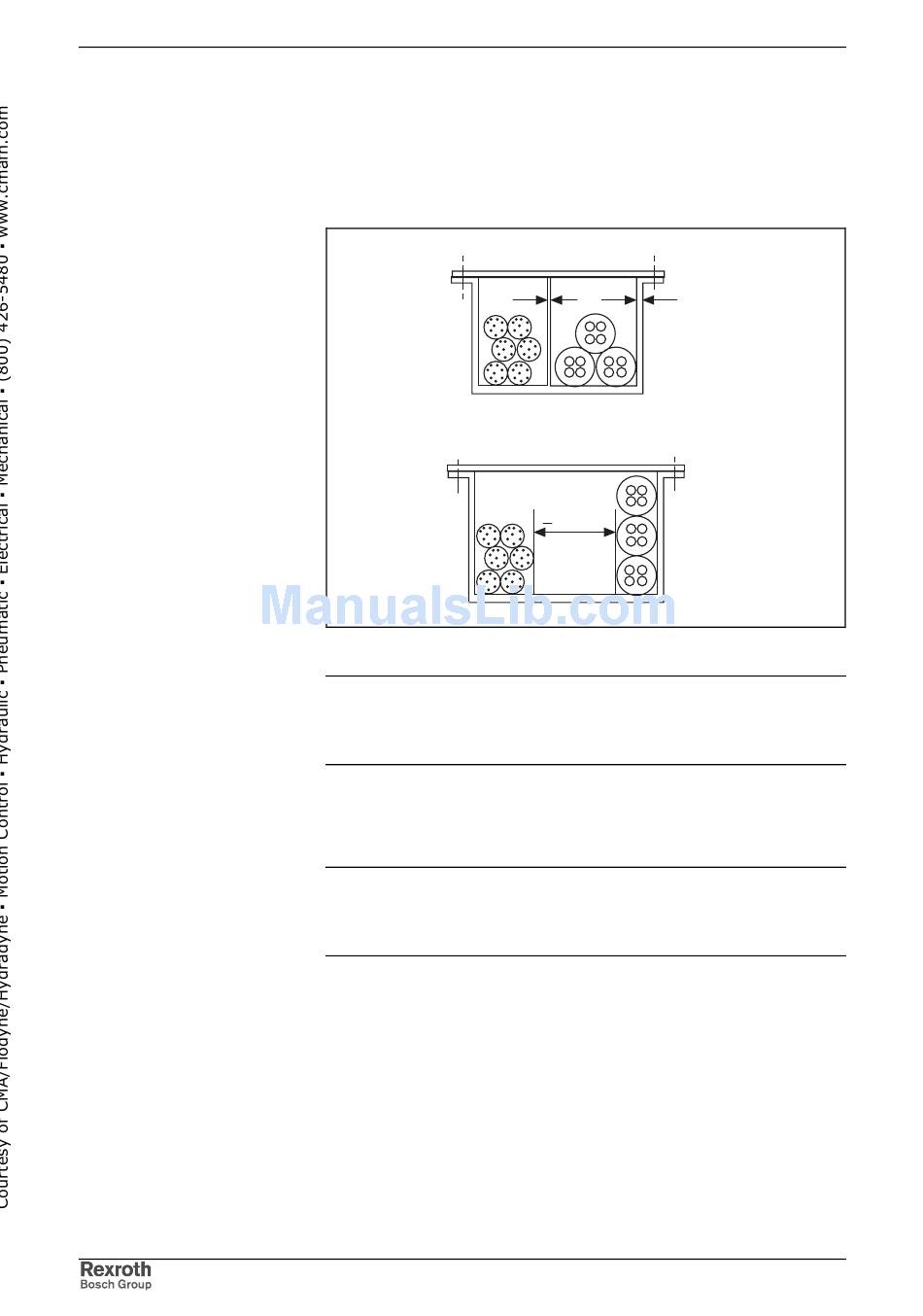

Fig. 7-5: Cable duct variants
Note: For details please see Project Planning Manual
"Electromagnetic Compatibility (EMC) in Drive and Control
Systems", document typecode
DOK-GENERL-EMV********-PRxx.
Note: For details please see Project Planning Manual
"Electromagnetic Compatibility (EMC) in Drive and Control
Systems", document typecode
DOK-GENERL-EMV********-PRxx.
Rexroth EcoDrive Cs Drives
2...4 mm
>100 mm
MB5008F1.FH7
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
