Choke Connection
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
DL1, DL2: Additional Choke
By connecting an additional choke it is possible to increase the allowed
continuous DC bus power.
Note: If there isn't any choke used these connections must be
jumpered. A wire bridge is supplied together with the device.
Note: Rexroth doesn't deliver additional chokes for Rexroth
EcoDrive Cs drives.
device-external

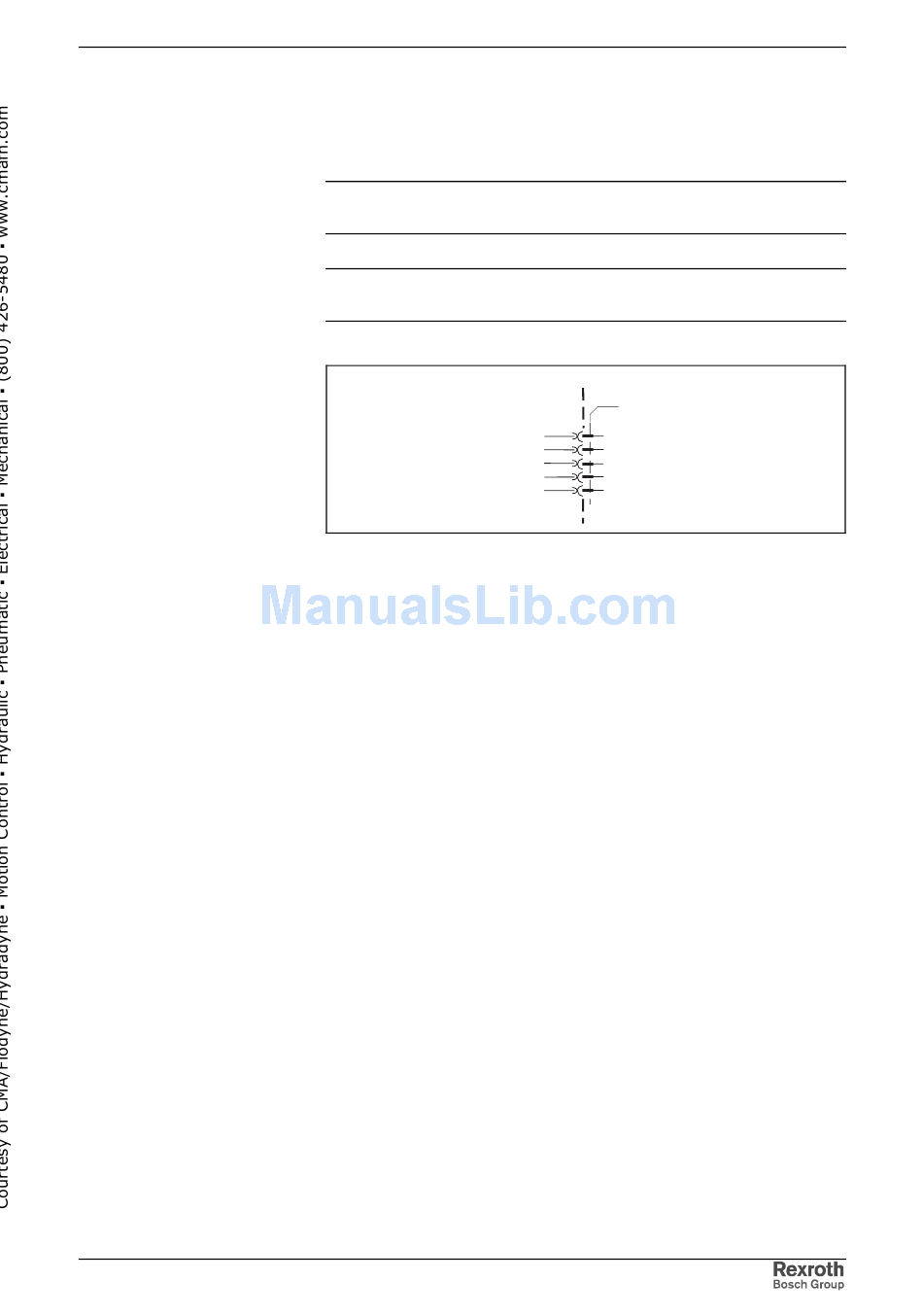

Fig. 5-12: Connection for choke
Electrical Connections
device-internal
X2
DL1 DL1
DL2 DL2
X2_Dx.FH7
