Electrical Connections
Accessory
Braking Resistor Connection
RB1, RB2, RB3: Braking Resistor
Note: The internal braking resistor causes a derating of the
continuous DC bus power. See page 4-12.
By connecting an external braking resistor the derating of the continuous
DC bus power can be prevented.
Note: When an external braking resistor is used, the drive has to be
informed of this fact by means of the DriveTop commissioning
software (call in DriveTop by menu item "Drive Functions ->
Drive controller")
An external braking resistor is available as an accessory.
Data for the internal braking resistor: see chapter 4.4 "Electrical Data"
Data
external braking
resistor

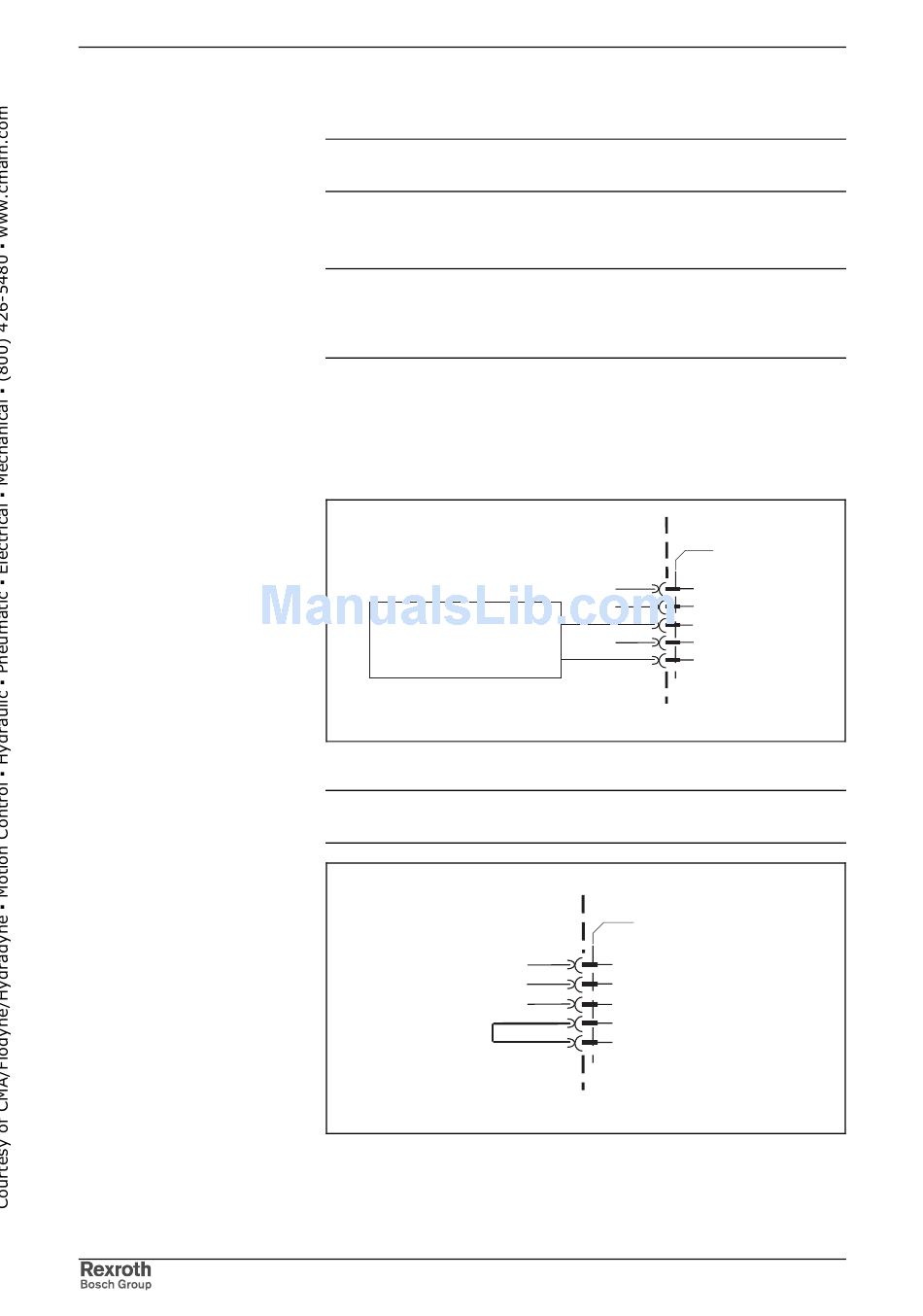

Fig. 5-13: Connection for braking resistor
Note: If you do not use any external braking resistor, the RB2 and
RB3 connections must be jumpered.
device-external
Fig. 5-14: Jumper on RB2 and RB3
Rexroth EcoDrive Cs Drives
device-external device-internal
X2
RB1
RB2
X2_RBx_mit_RB.FH7
device-internal
X2
RB3
RB2
X2_RBx_ohne_RB.FH7
