X5_1: Digital Inputs - REXROTH EcoDrive Cs Project Planning Manual

Rexroth EcoDrive Cs Drives

X5_1: Digital Inputs

Graphic Representation
Connection Cross Section
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Technical Data of the Terminal Connector

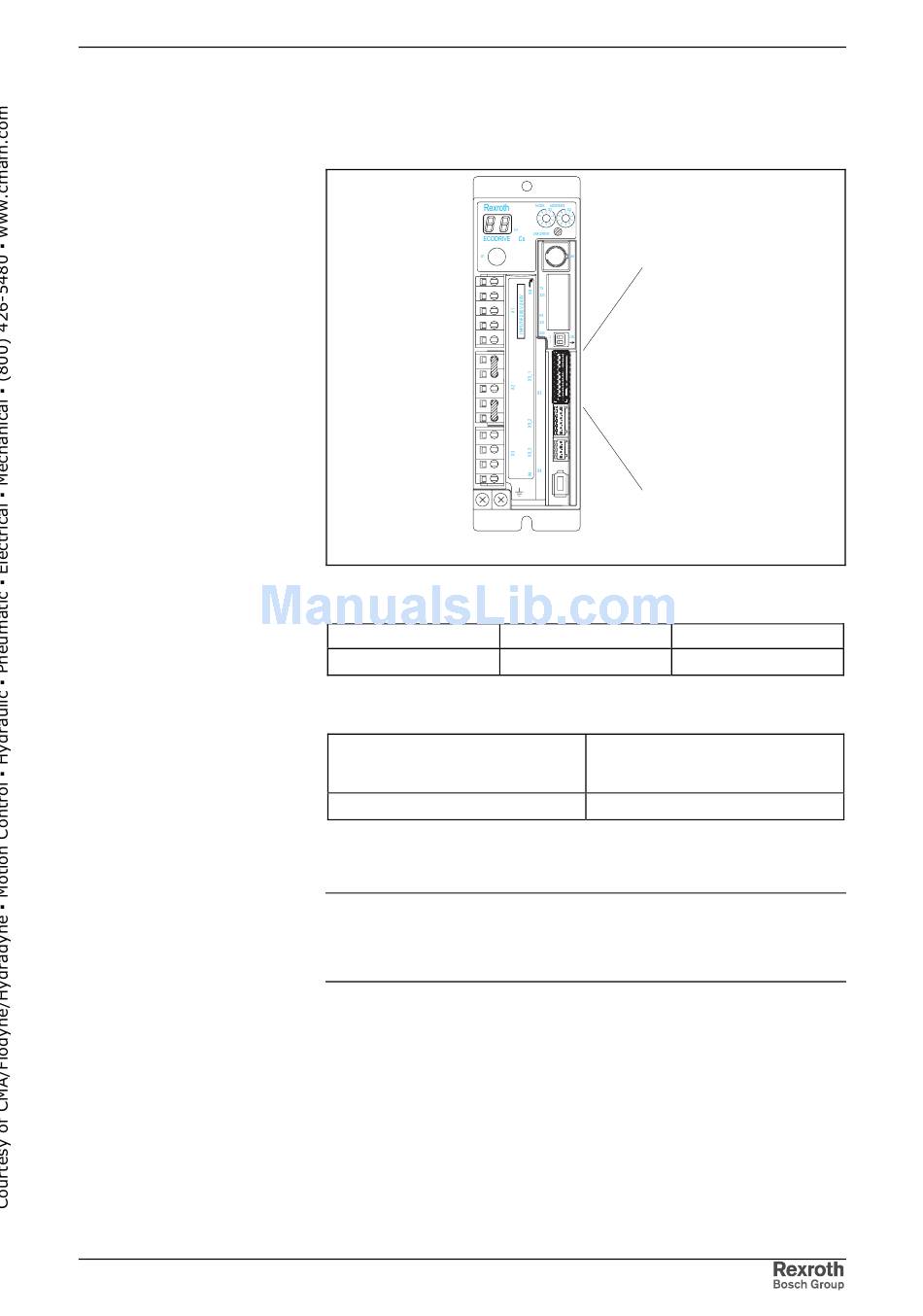

Fig. 5-24: Terminal connector X5_1
Design
Type
spring tension
Fig. 5-25: Design
Cross section
single-core
0,25 - 0.5
Fig. 5-26: Connection cross section
Note: The digital inputs can be configured by means of the "Digital
inputs" firmware function in conjunction with the freely
configurable signal control word. The following paragraph
describes the default configuration of the digital inputs.
schnittstellen_X51.fh7
Number of poles
10
[mm²]
Electrical Connections
OUT1
IN7
0V_ext
0V_ext
IN6
IN5
IN4
IN3
IN2
IN1
Type of design
socket on connector
Cross section in AWG
gauge No.
23 - 20
5-13
