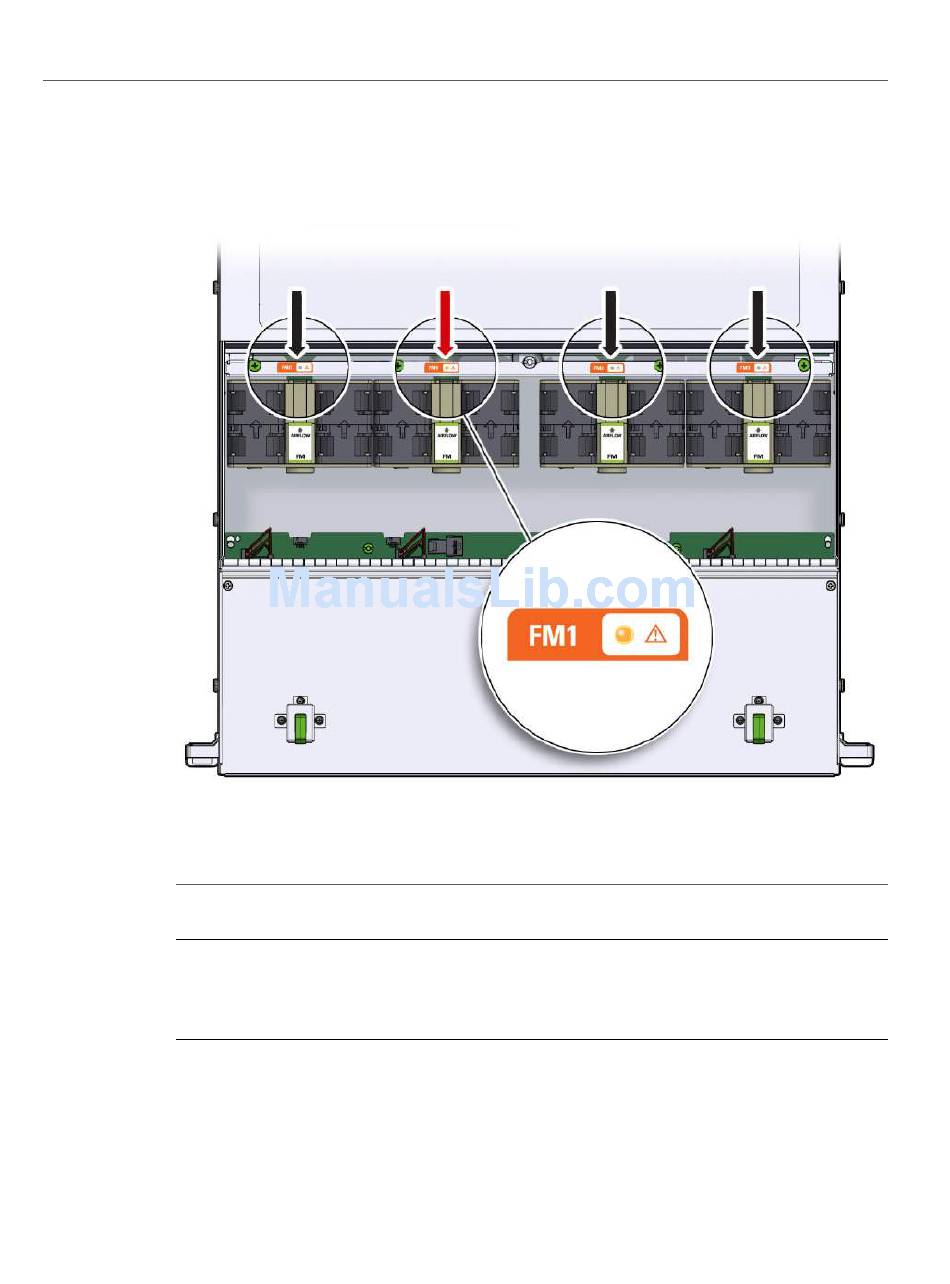

Server Fan Module Status Indicator
FIGURE 11
Status
Color
Indicator
Name
Fan Module
Off/Amber
Status
4.
Remove the faulty fan module.
Using your thumb and forefinger, grasp the fan module in the finger
a.
recesses located in the plastic between the fans.
State Meaning
■ Off – The fan module is correctly installed and operating within
specification.
■ Amber – The fan module is faulty. The front TOP FAN LED and the
front and rear panel Service Required LEDs are also lit if the system
detects a fan module fault.
Servicing CRUs That Do Not Require Server Power-Off
Remove a Fan Module
77
