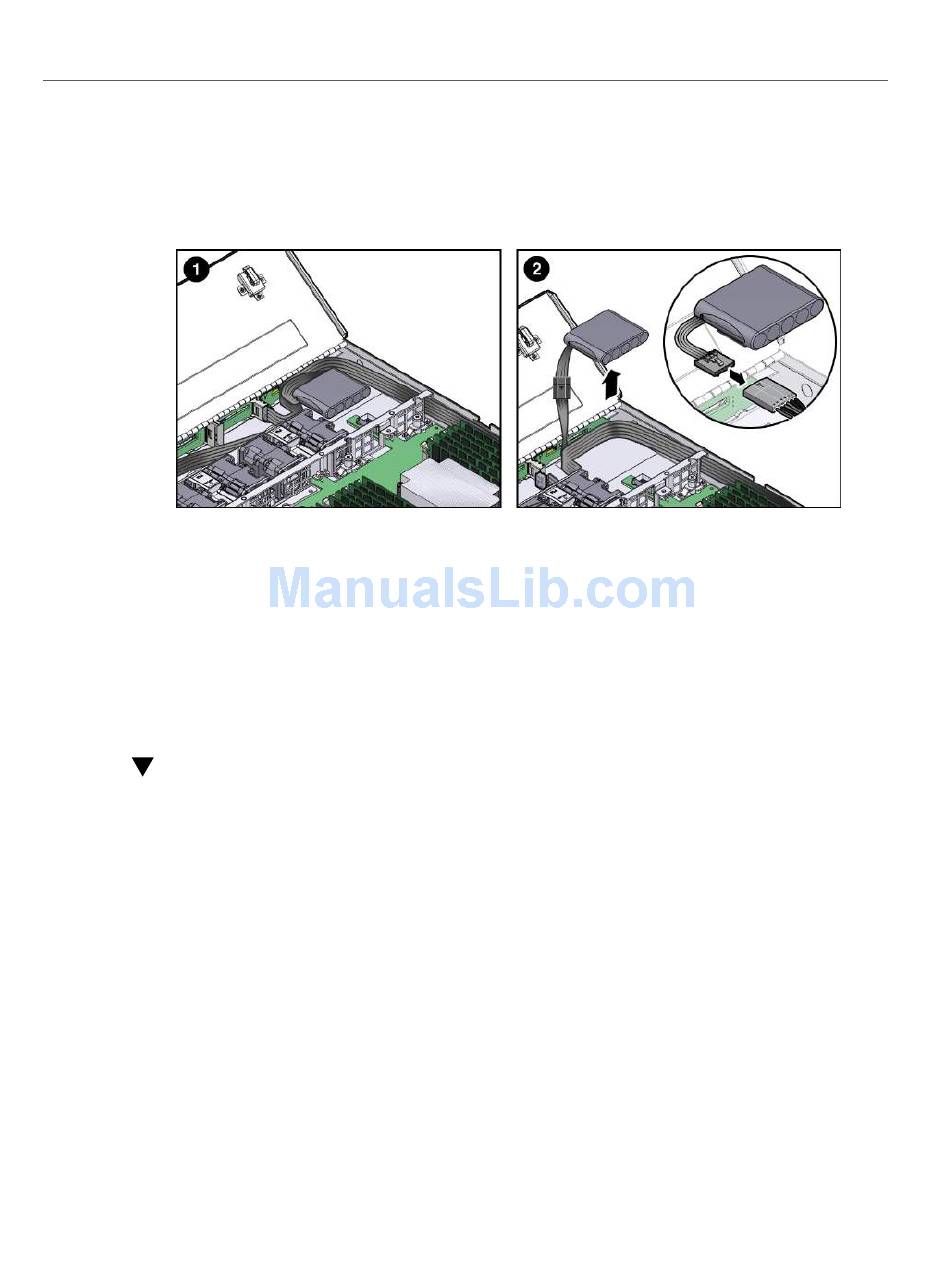

6. Lift the super capacitor up to release the reclosable fasteners that secure it to
the server's chassis [2].
7. Disconnect the super capacitor cable from the super capacitor and place the
super capacitor on an antistatic mat [2].
8. Carefully slide the SAS cables and super capacitor cable through the chassis
mid-wall and remove the cables from the server.
For instructions, see

Install the Internal HBA Card in PCIe Slot 4

Unpack the replacement host bus adapter (HBA) card, the super capacitor, the
1.
SAS cables, and the super capacitor cable, and retrieve the PCIe riser for slot 3.
"Remove the Internal HBA SAS Cable Assembly" on page
Install the Internal HBA Card in PCIe Slot 4
173.
Servicing FRUs 145
