Servicing Processors (FRU)

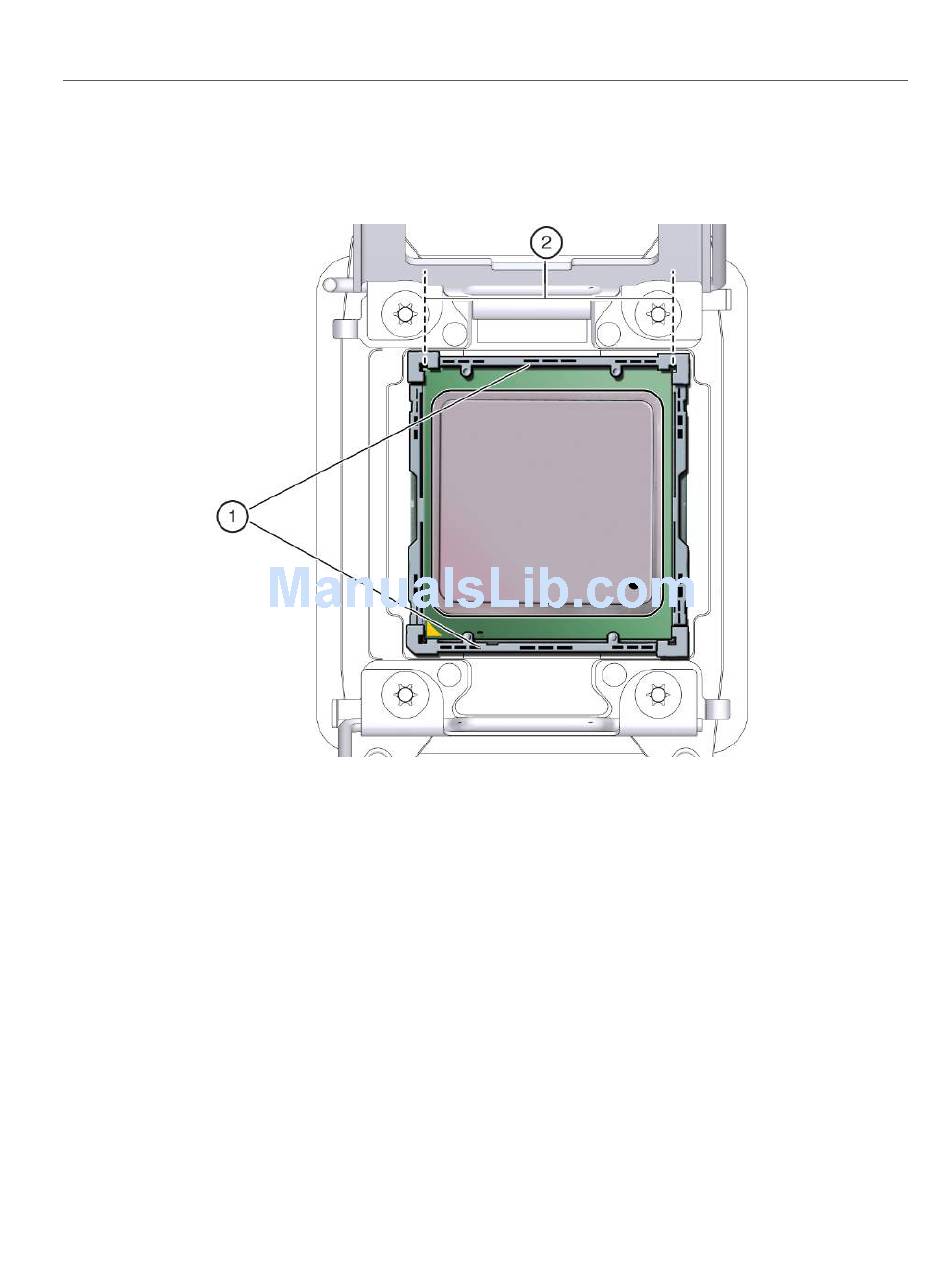

FIGURE 24
Figure Legend
1
Processor alignment brackets
2
Processor left and right edges are within alignment bracket boundaries
Figure 25
processor extend beyond the boundaries of the processor alignment brackets.
122
Oracle Server X6-2 Service Manual • June 2016
Smaller Processor Installed in a Motherboard Processor Socket
shows a larger processor installed. Notice that the right and left edges of the
