10.3 Preparing a Test Chart

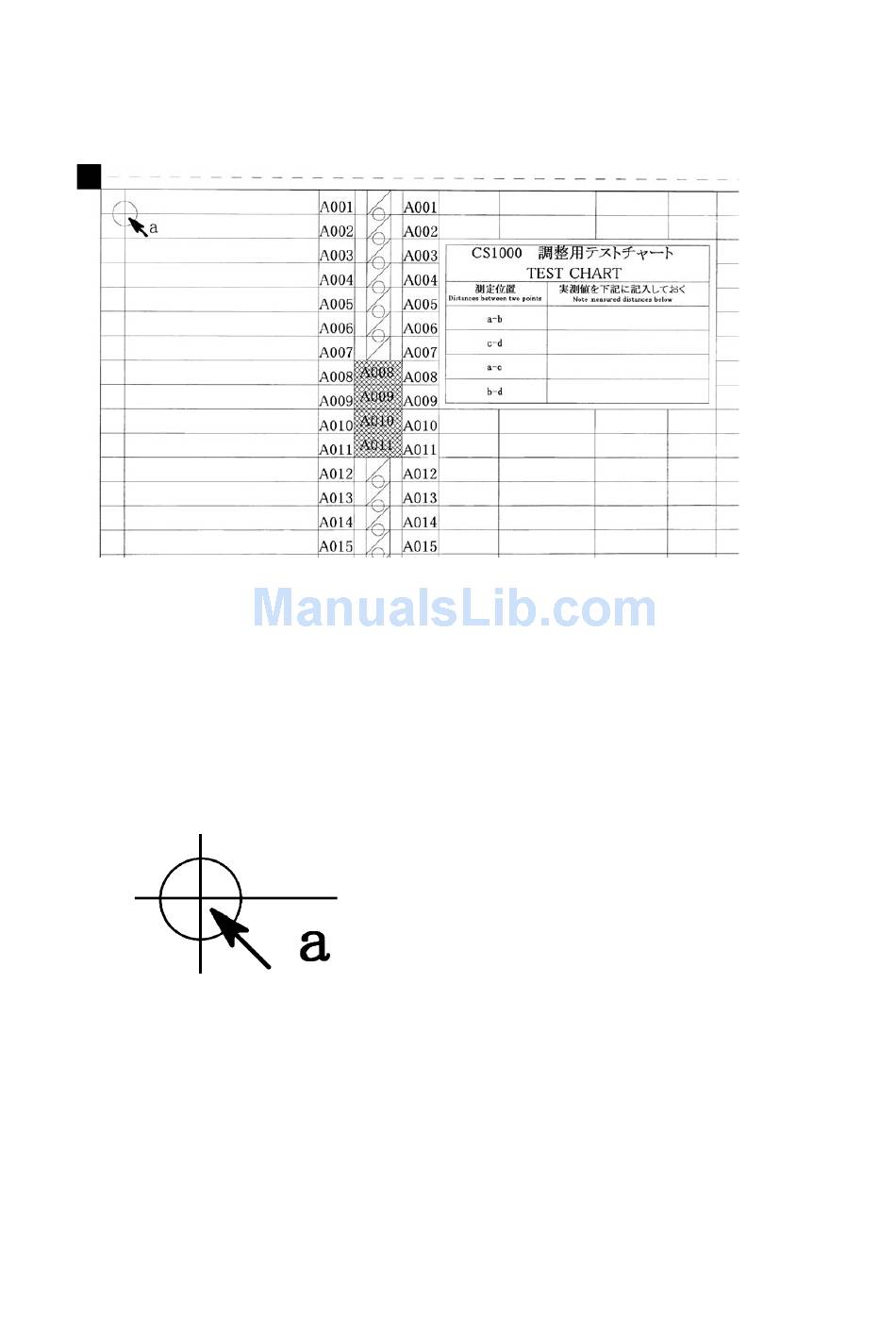

(1) Prepare a CS1000 adjustment test chart.
(2) Make sure that the distances (measured with a glass scale) between the two points in all pairs are
included in the chart in advance. (See the chart shown above.)
<<Tip 1>>
Test chart is made of Mylar paper.
For use in normal office environments (normal temperatures and humidity levels), you should
only need to measure each distance once.
Make sure that each distance is measured with the utmost accuracy.
<<Tip 2>>
Make sure that all staff members using this test chart select the same measurement points.
This chart has been designed with the assumption that the point shown below is used for
measurement.
<<Tip 3>>
If the user-specified paper must be used for adjustments, you should make the measurements
over as long a period of time as possible to obtain good results.
CS2000-UM-251-9370
10. ADJUSTMENTS USING THE SOFTWARE
10-4
