8.19 Front and Rear Paper Detection Sensors

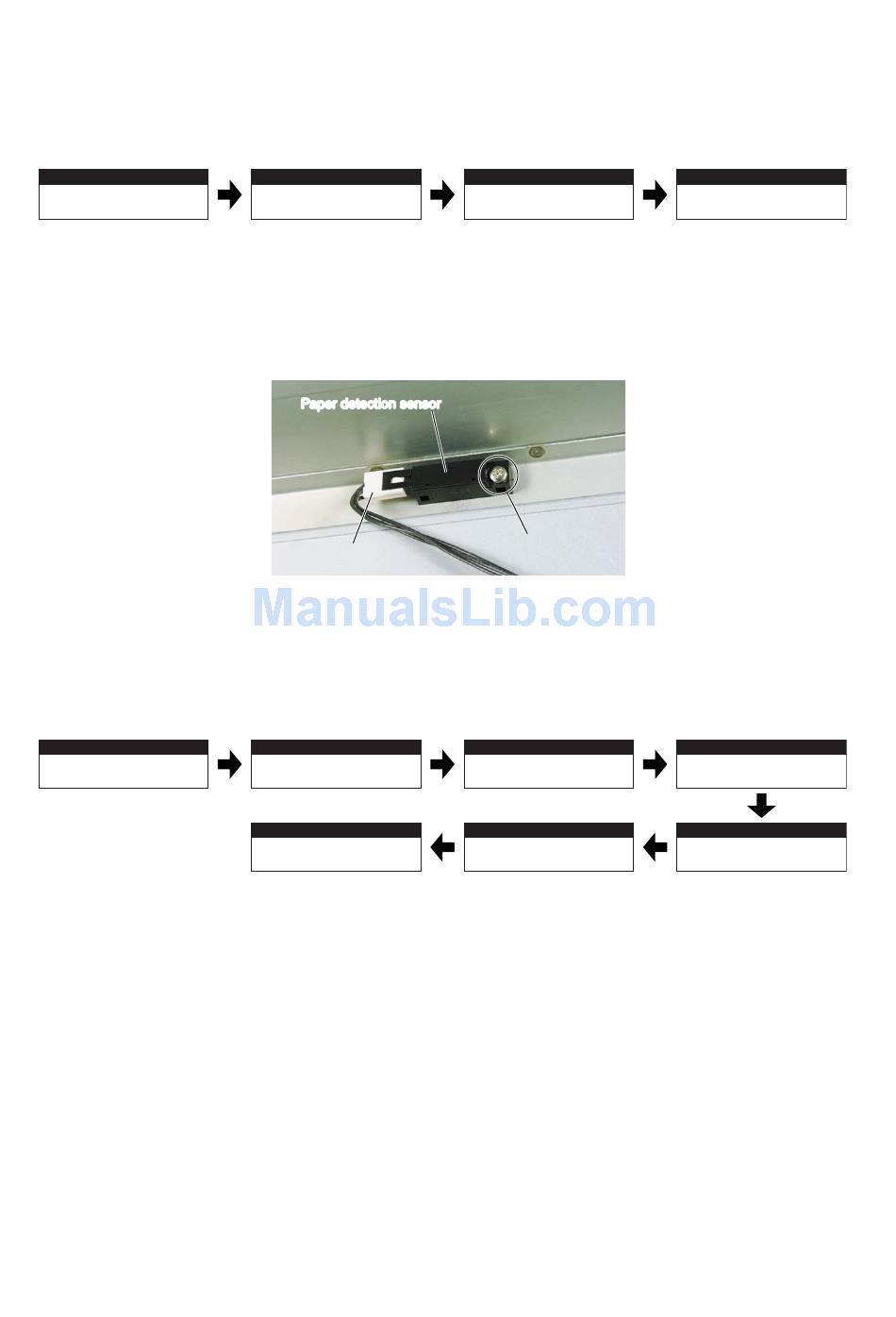

Disassembly procedure (front sensor)
8.2
p.8-2
Detaching the document
hold-down unit
Detaching the front paper detection sensor
(1) Remove the silver M3L10 binding head screw below the front guide.
(2) Detach the connector from the paper detection sensor.
Reattaching the front paper detection sensor
(1) Reattach the paper detection sensor by reversing the sequence of steps in which it was detached.
Disassembly procedure (rear sensor)
8.2
p.8-2
Detaching the document
hold-down unit
CS2000-UM-251-9370
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
8.4
p.8-5
Detaching the side covers
Paper detection sensor P aper detection sensor
Connector
8.4
p.8-5
Detaching the side covers
This Section
Detaching the rear paper
detection sensor
8-23
8.6
p.8-7
Detaching the front cover
M3L10
binding head screw
8.5
p.8-6
Detaching the top cover
8.16
p.8-19
Detaching the rear guide
This Section
Detaching the front paper
detection sensor
8.13
p.8-15
Detaching the separator
plates (the rear plate only)
8.14
p.8-16
Detaching the pinch roller
units (the rear unit only)
