Sensor joint alignment (X overlap, Y offset)

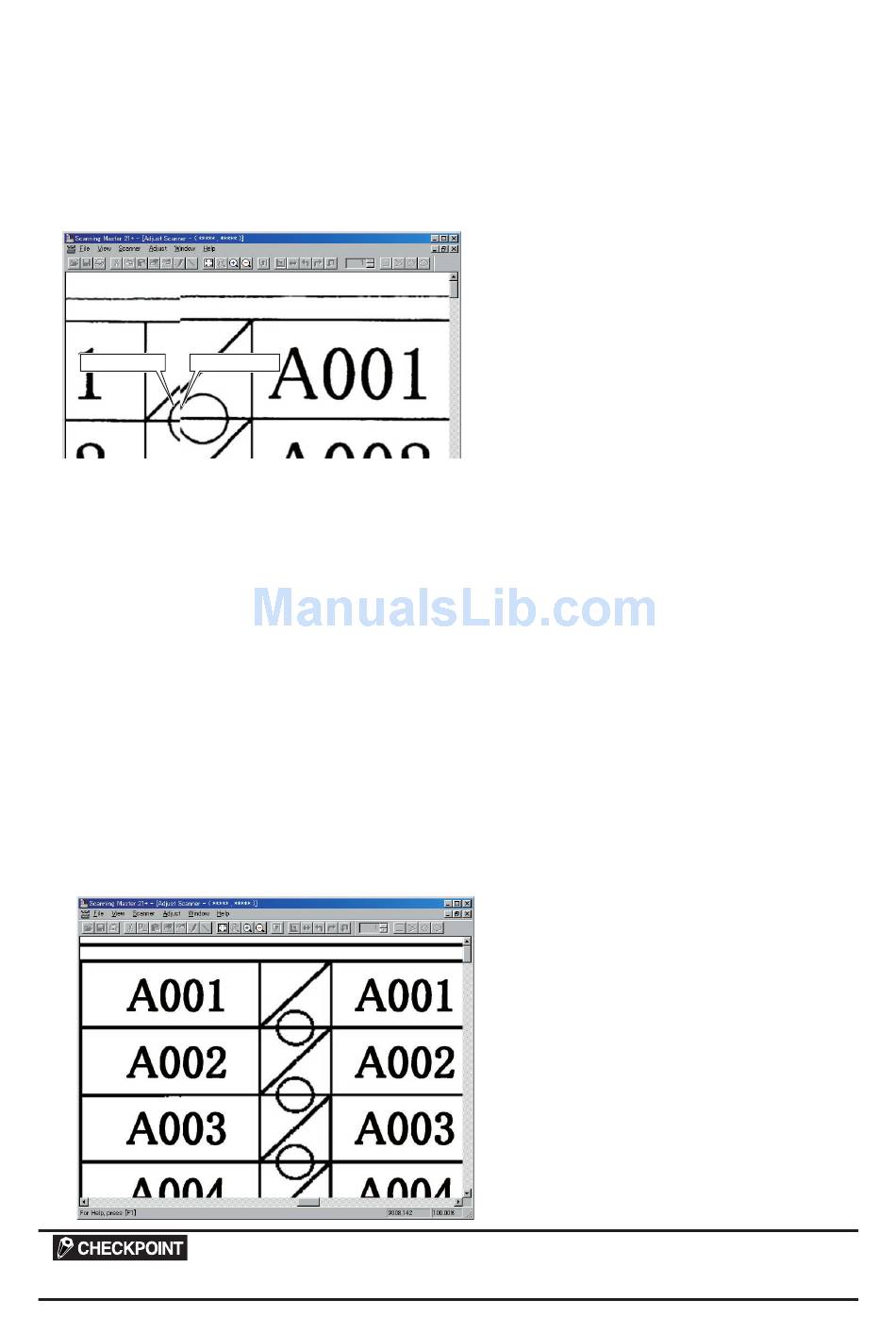

(1) When continuing with sensor joint alignment after offset adjustment, scroll the adjusted image to display
the portion shown below.
If you start with sensor joint alignment, follow Steps (1) through (4) in "Adjusting offset (origin)" on p. 10-8
to display the scanned image, and scroll to display the portion shown below.
Click here first.
(2) The image appears as shown above, with the left-hand portion of the image misaligned with the
right-hand portion. Click anywhere in the X Overlap box under "2-3." The crosshairs cursor will appear.
First click a position on the left-hand portion, then click the position of the right-hand portion that
corresponds to the position you selected first.
(3) Click the "Check" button first, then click the "Set" button. Follow the on-screen instruction to place the
CS1000 test chart on the scanner again.
(4) Repeat these steps until the left-hand portion is properly aligned with the right-hand portion.
In this task, you need to adjust the X overlap and Y offset at the same time.
See "Tips for Making Fine Adjustments" on the next page if you encounter difficulties making fine
adjustments.
(5) Similarly, make adjustments for 3-4, 1-2, and 4-5 in this order.
After finishing, close all adjustment menu windows. Use an A0 size document to perform a normal scan,
and confirm that the image appears properly.
Image after adjustments
After completing adjustments, reset DIP switch "2" to the OFF position.
CS2000-UM-251-9370
Click here next.
10. ADJUSTMENTS USING THE SOFTWARE
10-11
