8.

DISASSEMBLING AND ADJUSTING MECHANICAL PARTS

8.1 Considerations before starting disassembly

To prevent damage to image sensors, remove the document hold-down unit before disassembling any
mechanical parts.
Removing screws and any parts other than those shown in this chapter may adversely affect scanner
performance, including degraded scanning accuracy.
In particular, never attempt to remove or turn the red shielded screws and height adjustment screws.
The directions "left" and "right" given in this chapter assume that the scanner unit is viewed from the
front.
CS2000-UM-251-9370

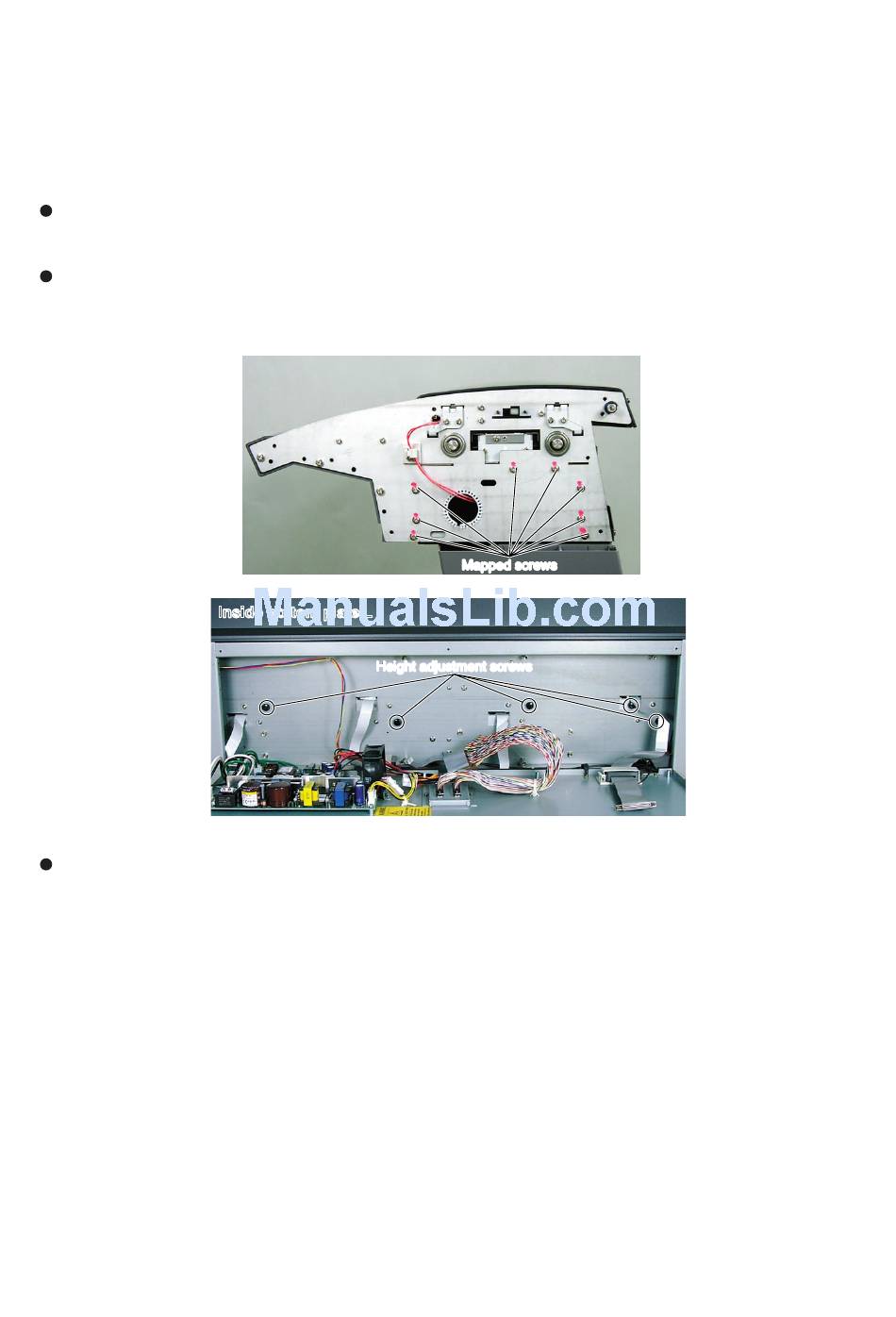

Inside bottom plate L Inside bottom plate L
Height adjustment screws Height adjustment scre ws
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
Mapped screws Mapped scre ws
8-1
