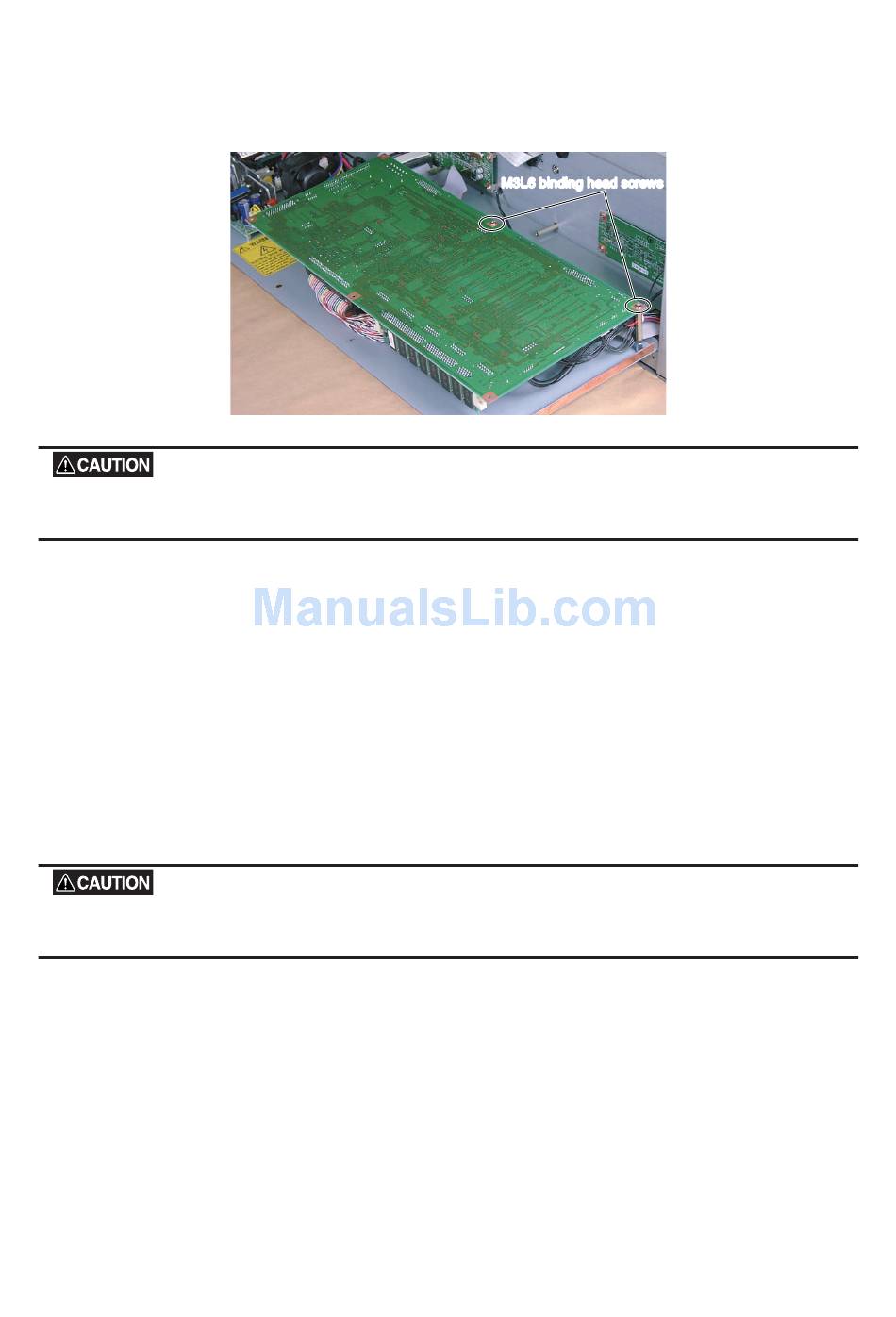

(3) To secure the board to the jig (BSB-335), use the two silver M3L6 binding head screws that were used to
hold the main board.
When attaching the main board to the jig (BSB-335), remove tie wraps and other restraints as necessary to prevent
the wiring and connectors from becoming strained.
Reattaching the main board
(1) Reattach the main board in the reverse order in which it was detached.
When detaching the main board completely (not for securing it to the jig)
Detaching the main board
(1) Remove all connectors and the six silver M3L6 binding head screws while supporting the board. (See the
previous page.)
To prevent the main board from falling and damaging its connectors and wiring when the screws are removed, be
sure to support the board.
(2) Place the main board on a safe and stable surface.
Reattaching the main board
(1) Reattach the board in the reverse order in which it was detached.
CS2000-UM-251-9370
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
M3L6 binding head screws M3L6 binding head scre ws
8-11
