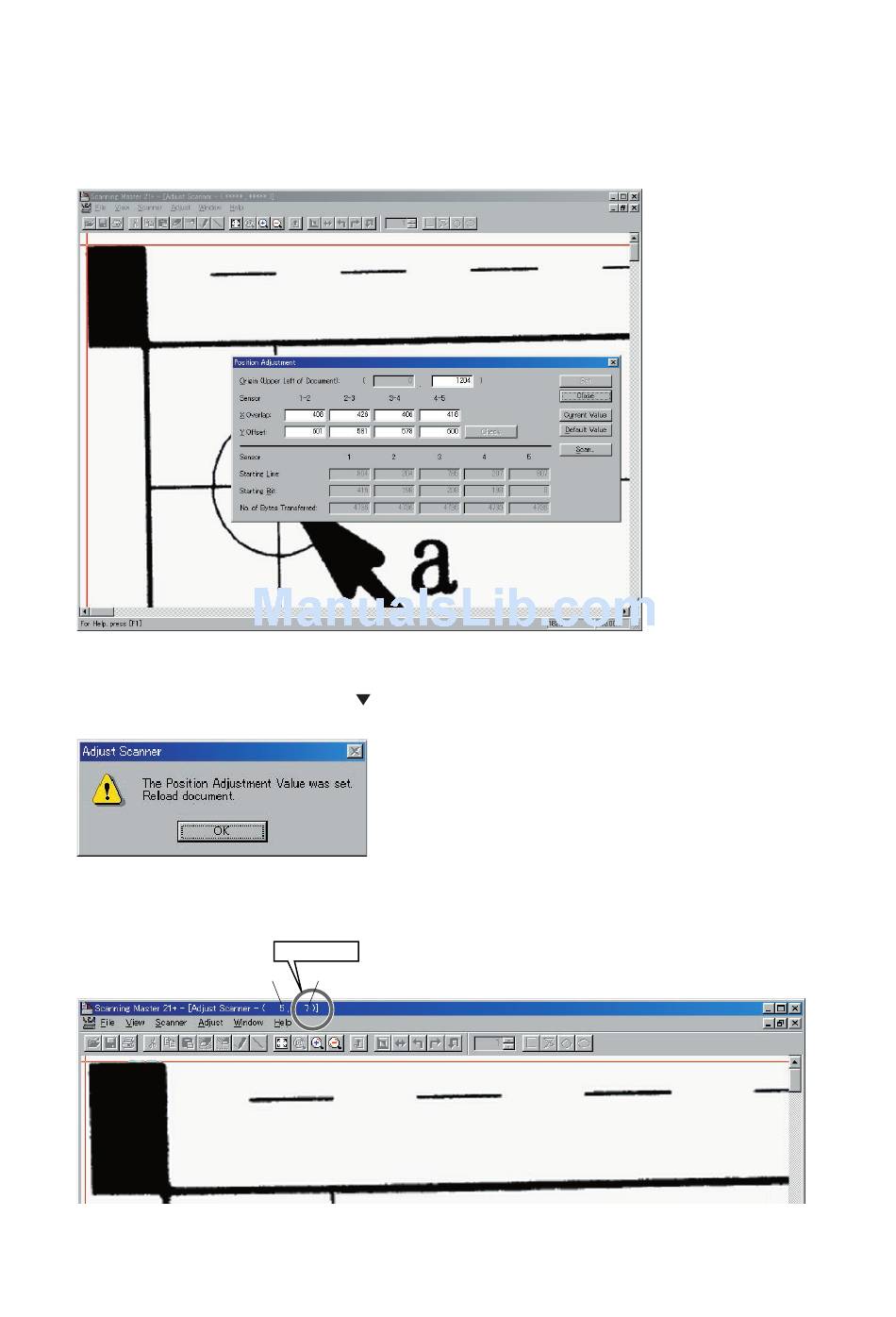

(5) A dialog box appears together with the Scanner window, as shown below.
Click anywhere within the Origin box. When the crosshair cursor appears in the Adjust Scanner window,
click on the dark rectangle at the top left of the Adjust Scanner window with the crosshair cursor.
Click anywhere within the Origin box and enter the coordinates displayed after subtracting 8.
(6) Click the "Check" button, then click the "Set" button. The following dialog box will appear.
Click the "OK" button, then press the " " button while pressing the "Stop" button. Reposition the
CS1000 test chart on the scanner.
(7) Click the "Scan" button to redisplay the scanned image. Confirm that the dark rectangle is between 6
and 11 pixels from the window edge.
(8) When the scanned image is between 6 and 11 pixels, you may proceed with sensor joint alignment.
CS2000-UM-251-9370
6 to 11 pixels
X Y
10-10
10. ADJUSTMENTS USING THE SOFTWARE
