4.7 Using the Carrier Sheet

Use the carrier sheet according to the condition of the document to be scanned.
In the case of scanning the following types of media, always place the document on the carrier sheet before
loading it into the scanner.
To scan a medium that is as limp as or limper than a newspaper
To scan paper that is badly curled
To scan a document that is smaller than A4 size or a document of non-standard size
To scan a medium that tears easily
When the target document cannot be properly advanced to the initial position of scanning (because the
target document is folded, wrinkled, or otherwise hard to load in the scanner)
To scan transparent or translucent documents

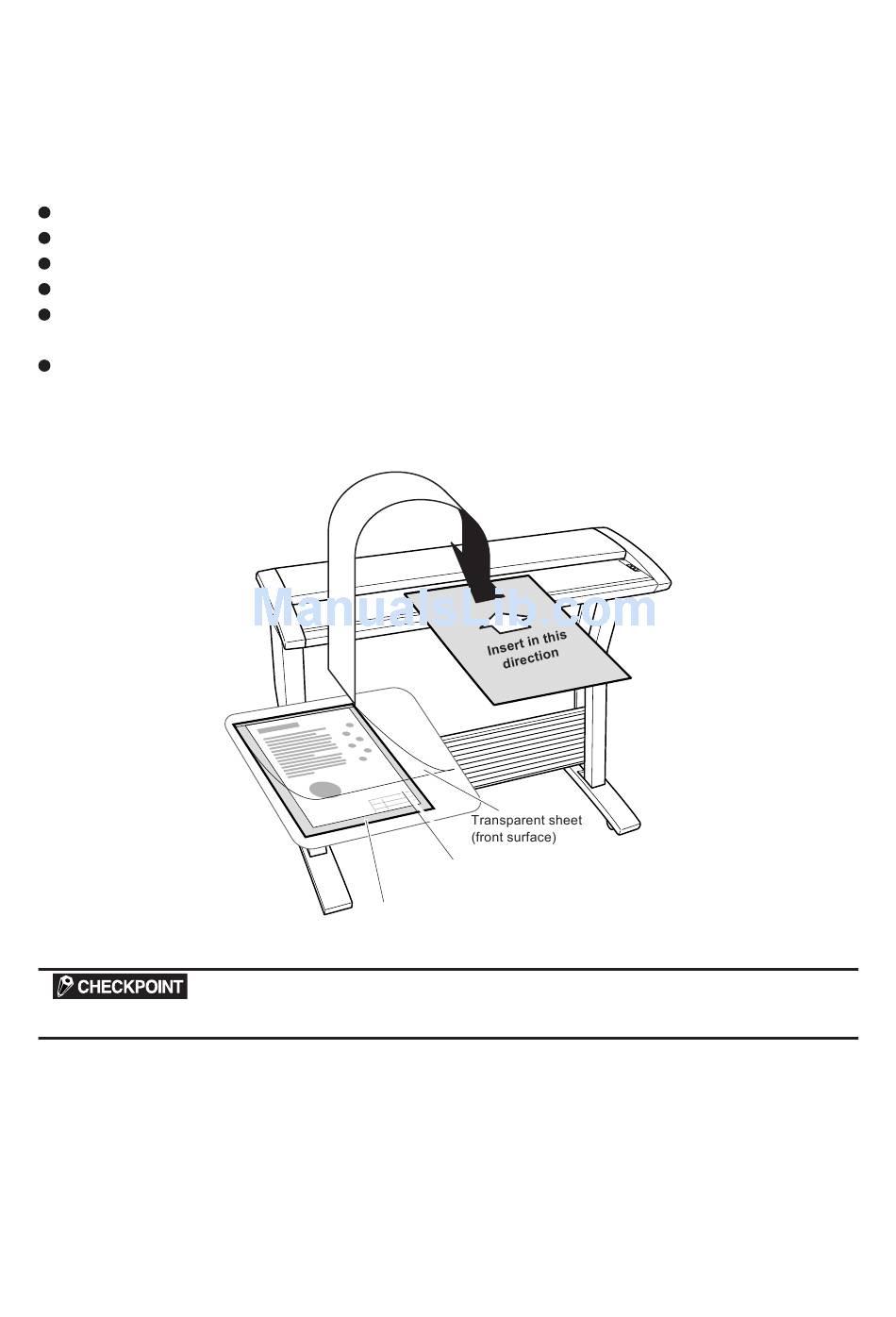

As shown in the figure below, place the document in the carrier sheet with the document's surface to be
scanned facing up (against the transparent top sheet). For scanning, load the carrier sheet into the scanner
with the document's target surface (the transparent top sheet) facing down.
When handling the carrier sheet, be very careful not to scratch it or otherwise damage it.
CS2000-UM-251-9370
Target document
(the surface to be scanned faces up)
White surface
(background surface)
