GRAPHTEC CS2000 Service Manual page 71

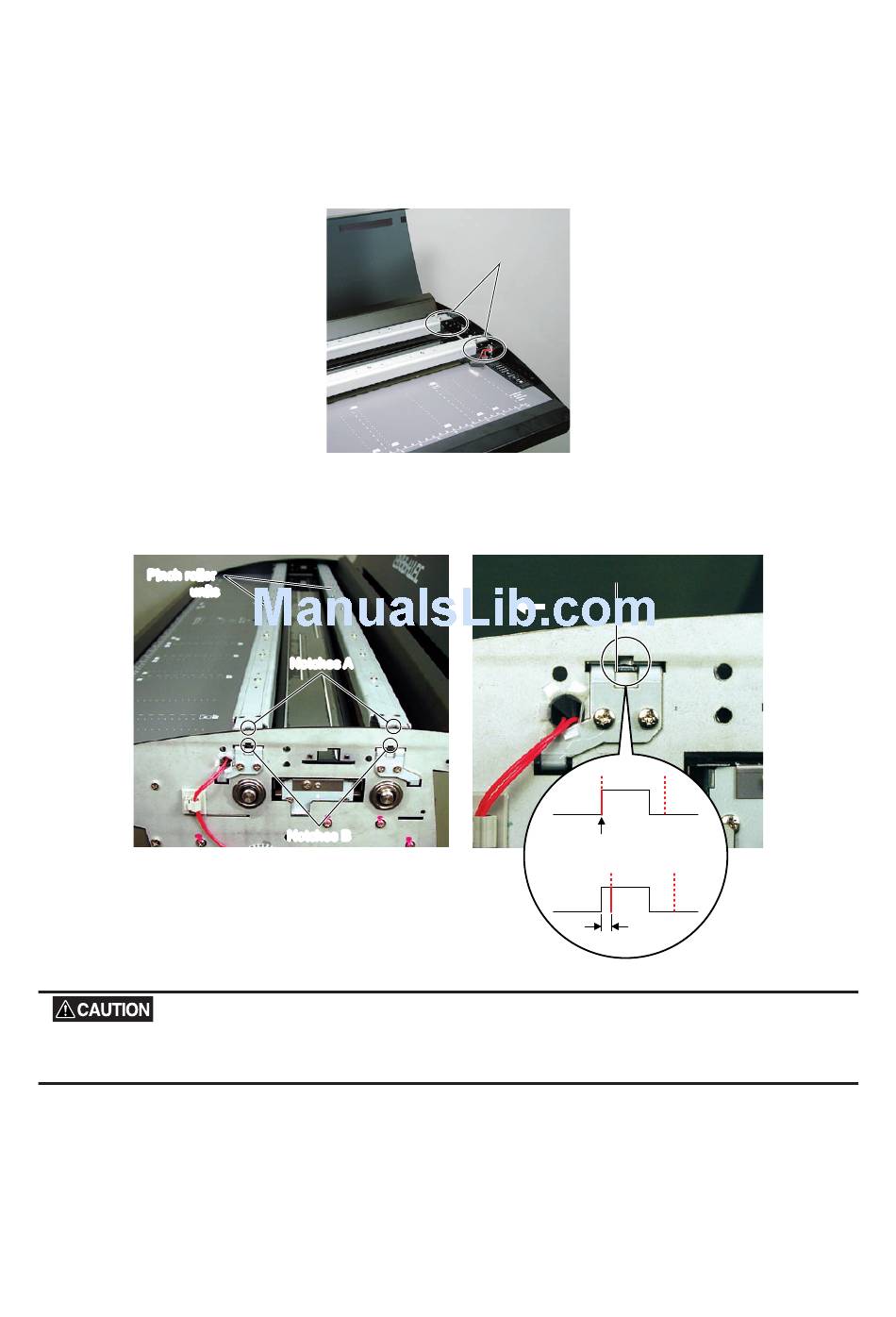

Reattaching the pinch roller units
(1) Reattach the pinch roller units in the reverse order in which they were detached.
(2) Make sure the large notch of each unit is at the right-hand side and faces forward.
(3) Align notch A of each pinch roller unit with the front section of notch B of the scanner unit when
reattaching the unit.
Pinch roller Pinch roller
The paper feed and scanning accuracy may be affected if the notches are not aligned. Step (3) in "Reattaching the
pinch roller units" above must be followed.
CS2000-UM-251-9370
units units
Notches A Notches A
Notches B Notches B
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
Large notches must
be on the right-hand
side and face forward.
Align notch A with notch B here.
Front
8-18
OK
Align
NG
Gap
