8.14 Pinch Roller Units

Disassembly procedure
8.2
p.8-2
Detaching the document
hold-down unit
Detaching the pinch roller units

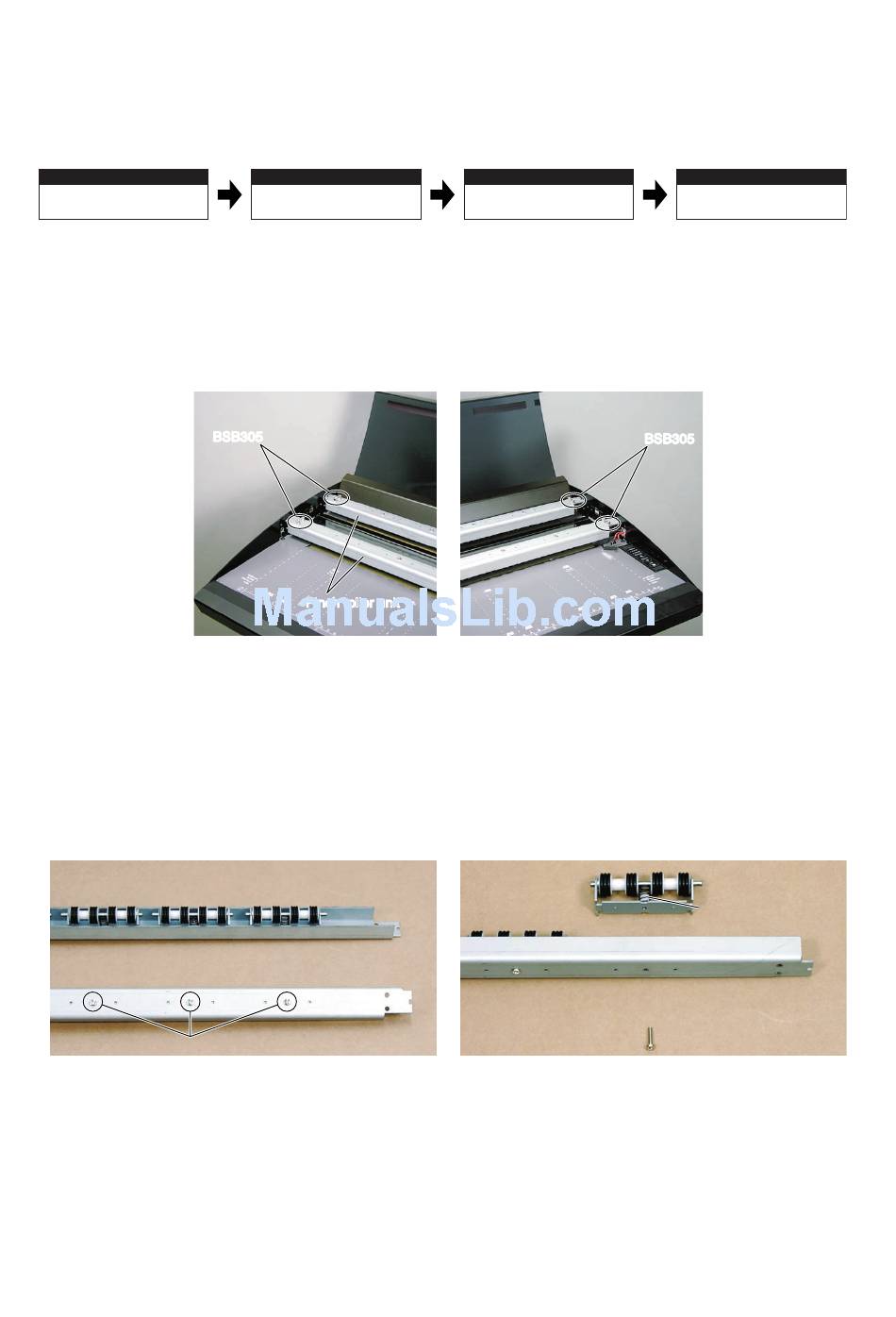

(1) Remove the two spacers (BSB305) from each side of the pinch roller units.
(You can detach the pinch roller units without removing the spacers (BSB305) in the center of the units.)
(2) Detach the pinch roller units.
Disassembling the pinch roller units
(1) Remove the three silver M3L14 binding head screws to disassemble each pinch roller unit.
Take care to keep the spring inside from flying out and becoming lost.
Rear surface of the pinch roller unit
Front surface of the pinch roller unit
M3L14 binding head screws
CS2000-UM-251-9370
8.4
Detaching the side covers
BSB305 BSB305
Pinch roller unit Pinch roller unit
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
8.13
p.8-5
Detaching the separator
plates
Pinch roller as
disassembled
8-17
This Section
p.8-15
Detaching the pinch roller
units
BSB305 BSB305
This spring may
fly out.
