(2) If the SCSI cable comes into contact with the document, use the cable clamp provided as a standard
accessory to fasten the cable to the underside of the scanner, at either the left or right side.
(3) Insert the cable's other end into the computer's connector.
(4) If this scanner will be a terminal within the network configuration, set Bit 4 of the DIP switch on the
scanner's rear panel to enable the internal terminator function.
Turn off the scanner before changing a DIP switch setting.
The scanner comes with the Terminator setting of "Enable" as its factory-preset default.
CS2000-UM-251-9370

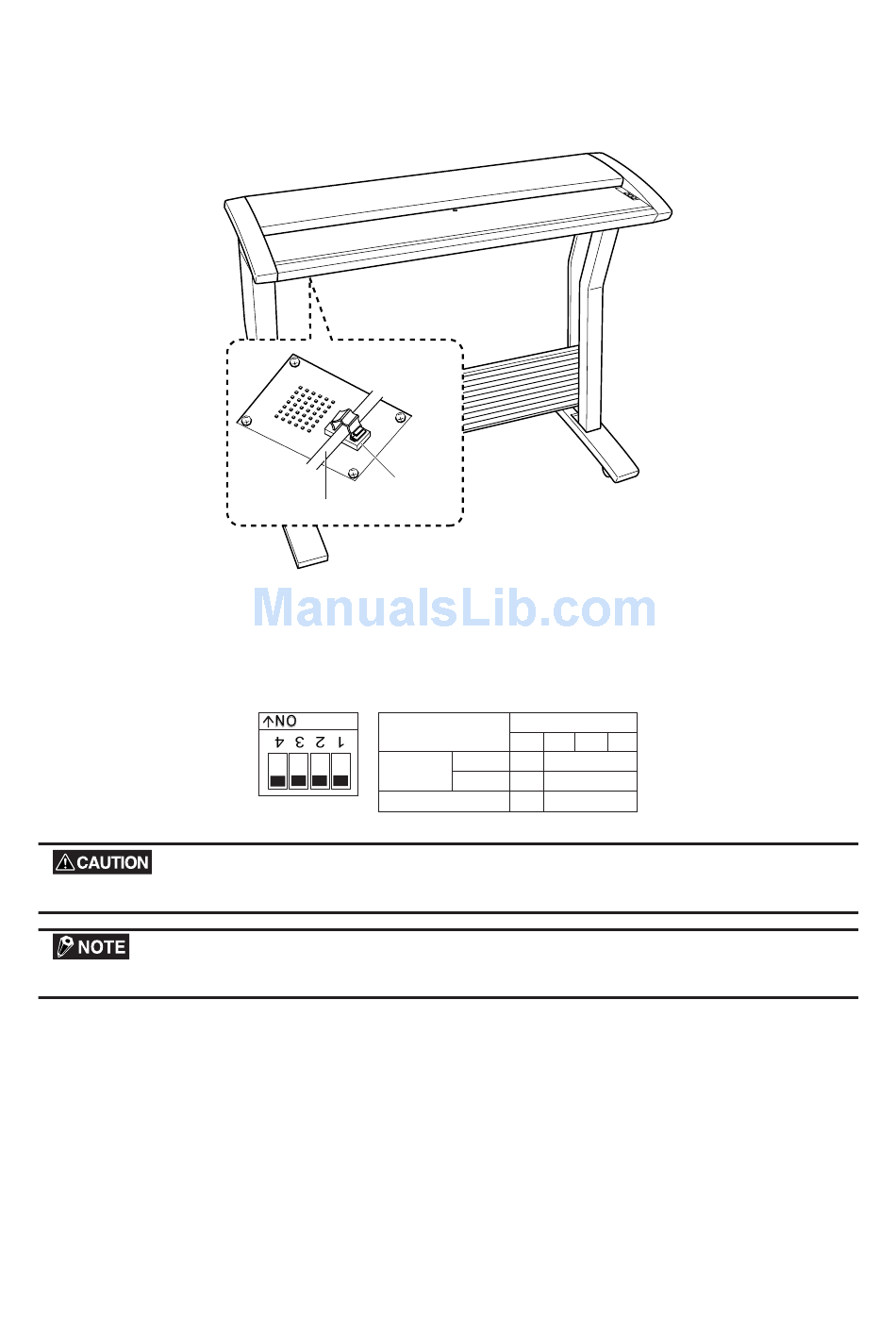

Cable clamp
SCSI cable
Terminator
3-5
3. PREPARING TO OPERATE THE SCANNER
DIP switch's bits
4 3 2 1
ON
Disable
OFF
Enable
Usually OFF
