Separator Plates - GRAPHTEC CS2000 Service Manual

8.13 Separator Plates

Disassembly procedure
8.2
p.8-2
Detaching the document
hold-down unit
Detaching the separator plates

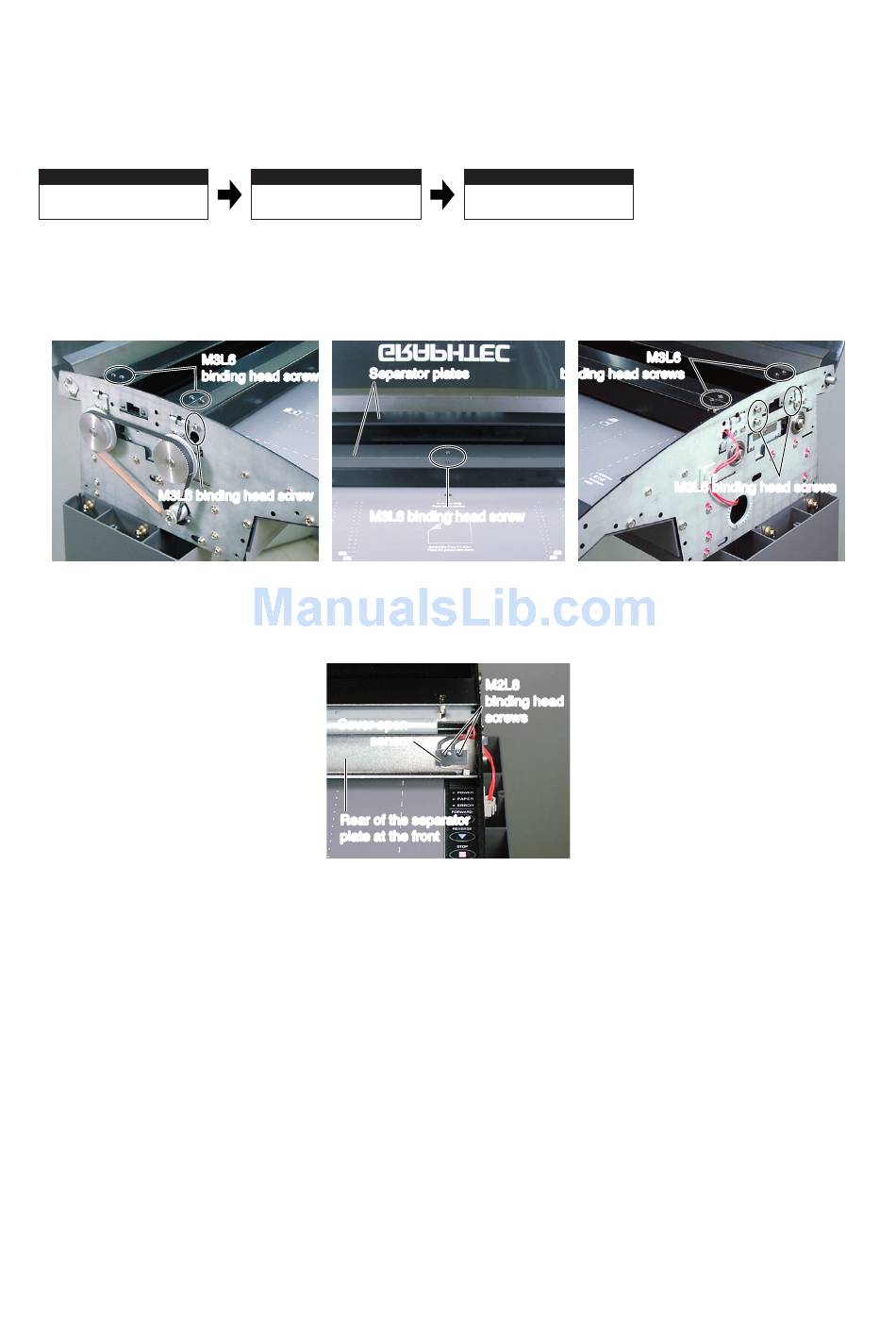

(1) Remove the ten black M3L6 binding head screws and three silver binding head screws.
M3L6 binding head screw M3L6 binding head screw
(2) Detach the cover open sensor from the separator plate at the front by removing the two black M2L8
binding head screws.
(3) Detach the separator plates.
CS2000-UM-251-9370
8.4
Detaching the side covers
M3L6 M3L6
Separator plates Separator plates
binding head screws binding head screws
M3L6 binding head screw M3L6 binding head screw
Cover open Co v er open
sensor sensor
Rear of the separator Rear of the separ ator
plate at the front plate at the front
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
This Section
p.8-5
Detaching the separator
plates
M2L8 M2L8
binding head binding head
screws scre ws
8-15
M3L6 M3L6
binding head screws binding head screws
M3L6 binding head screws M3L6 binding head screws
