13.1 Basket Assembly Procedure (PG0010)

Parts List

(1) Basket mounting bar guides .......................... x 2
(3) Basket mounting bar 2*................................... x 1
(5) M4 x 6 binding head screws (6-mm length) ...... x 4
(7) M4 x 20 binding head screws (20-mm length) ... x 2
*The basket sheet comes already affixed to the two basket mounting bars.

Assembly Procedure

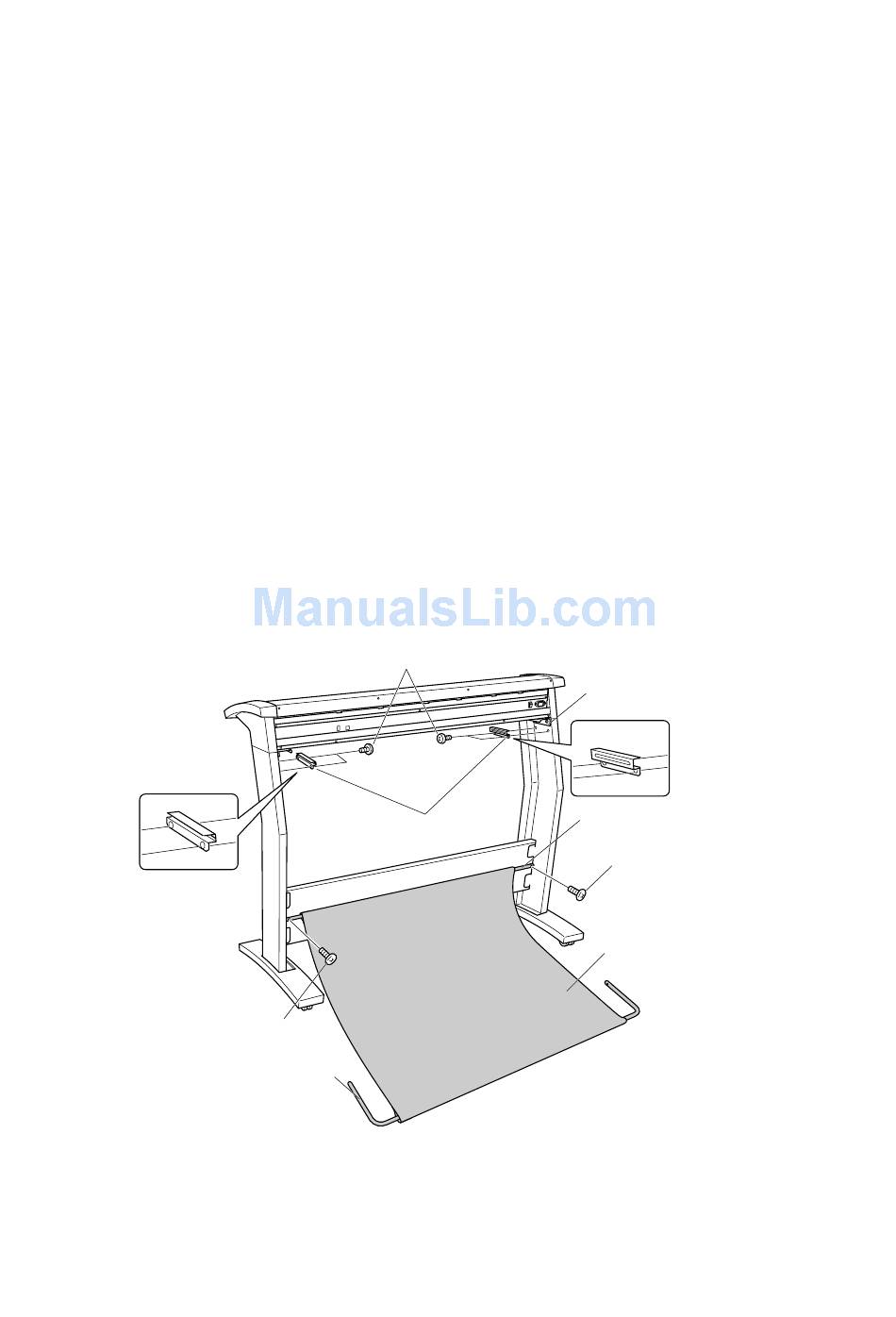

Step 1
(1) Attach the two basket mounting bar guides to the stand using the four M4 x 6 binding head screws,
making sure that they do not ride above the stand stays.
(2) With the basket sheet affixed to basket mounting bar 1 and basket mounting bar 2, attach basket
mounting bar 2 to the stand's center bar, using the two M4 x 20 binding head screws.
M4 x 20 binding head screws
CS2000-UM-251-9370
M4 x 6 binding head screws
Basket mounting bar guides
(20-mm length)
Basket mounting bar 1
(2) Basket mounting bar 1* ................................... x 1
(4) Basket sheet* .................................................. x 1
(6) Decorative screws ........................................... x 2
(8) Phillips screwdriver.......................................... x 1
(6-mm length)
13-1
Stand stays
Basket mounting bar 2
M4 x 20 binding head screws
(20-mm length)
Basket sheet
