8.11 CIS (Charge Coupled Device Imaging Semsor) Boards A, B, and C

Disassembly procedure
8.2
p.8-2
Detaching the document
hold-down unit

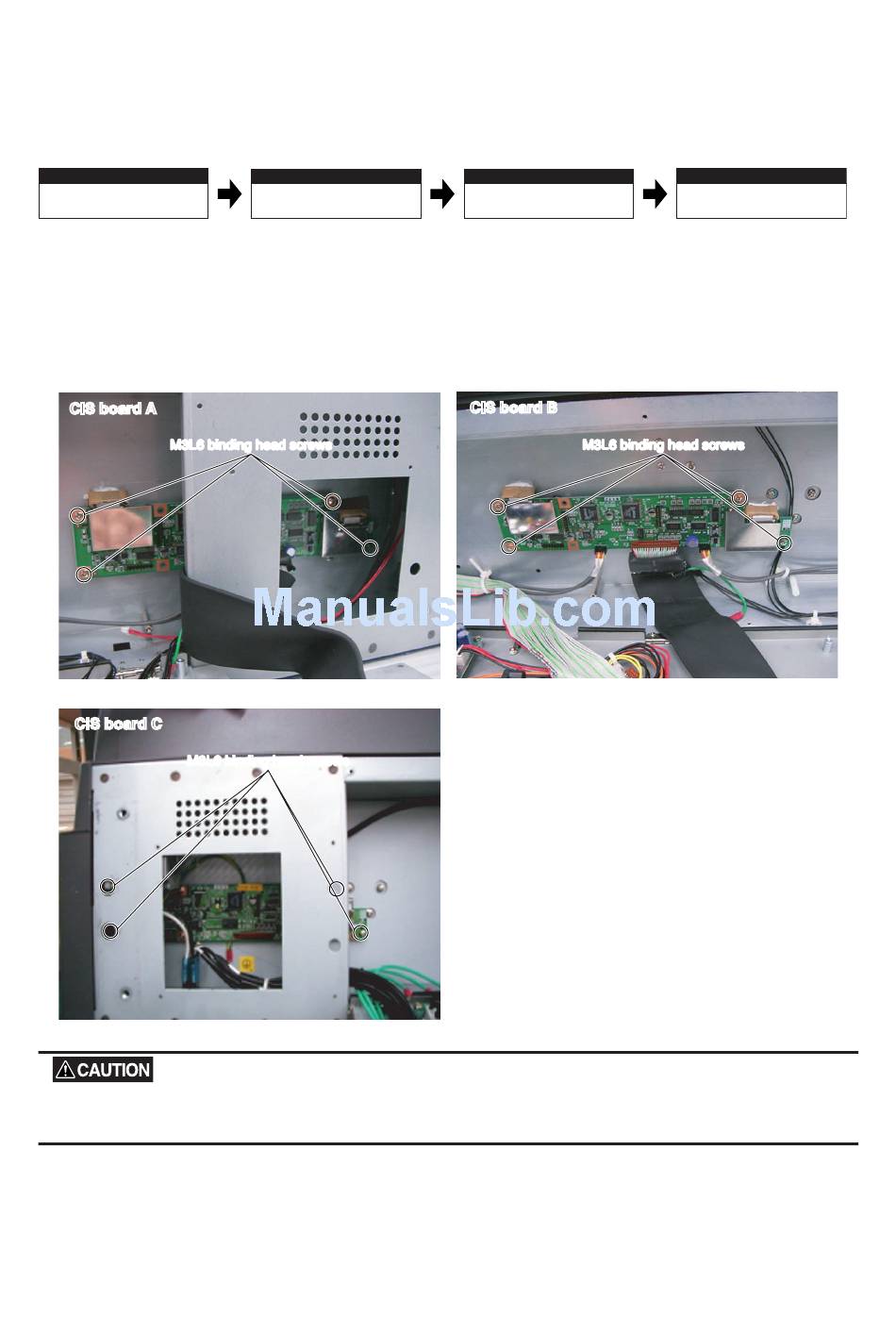

Detaching the CIS boards
(1) Remove all connectors and the four silver M3L6 binding head screws from each of the CIS boards while
supporting the board with one hand.
CIS board A CIS board A
M3L6 binding head screws M3L6 binding head screws
CIS board C CIS board C
To prevent the CIS boards from falling and becoming damaged when the screws are removed, be sure to support
each of the boards.
(2) Place the CIS boards on a safe and stable surface.
Reattaching the CIS boards
(1) Reattach the CIS boards in the reverse order in which they were detached.
CS2000-UM-251-9370
8.8
Detaching the large and
small bottom plates
M3L6 binding head screws M3L6 binding head screws
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
8.9
p.8-9
Detaching the main board completely
(not for securing it to the jig)
CIS board B CIS board B
8-13
This Section
p.8-11
Detaching the CIS boards
M3L6 binding head screws M3L6 binding head screws
