Adjusting the Tension Belt

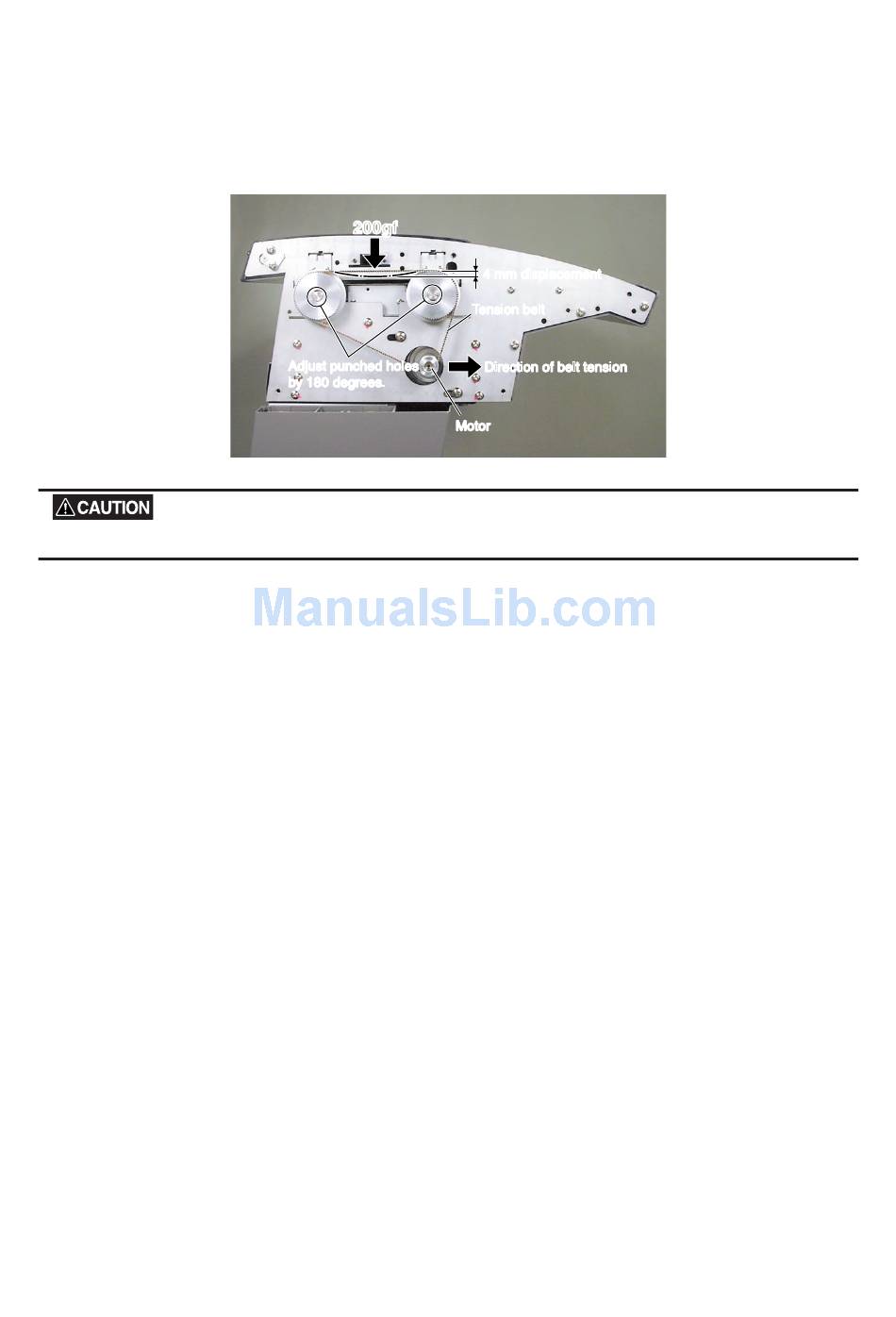

(1) Use the Colex gauge to adjust the belt tension so that the belt displacement is approximately 4 mm when
pressed with a force of 200 gf. To do this, attach the motor at different positions.
Always keep the belt under tension with respect to the 180-degree punched markings of the drive roller shaft.
CS2000-UM-251-9370
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
200gf 200gf
Adjust punched holes Adjust punched holes
by 180 degrees. b y 180 deg rees .
Motor Motor
8-26
4 mm displacement 4 mm displacement
Tension belt T ension belt
Direction of belt tension Direction of belt tension
