GRAPHTEC CS2000 Service Manual page 14

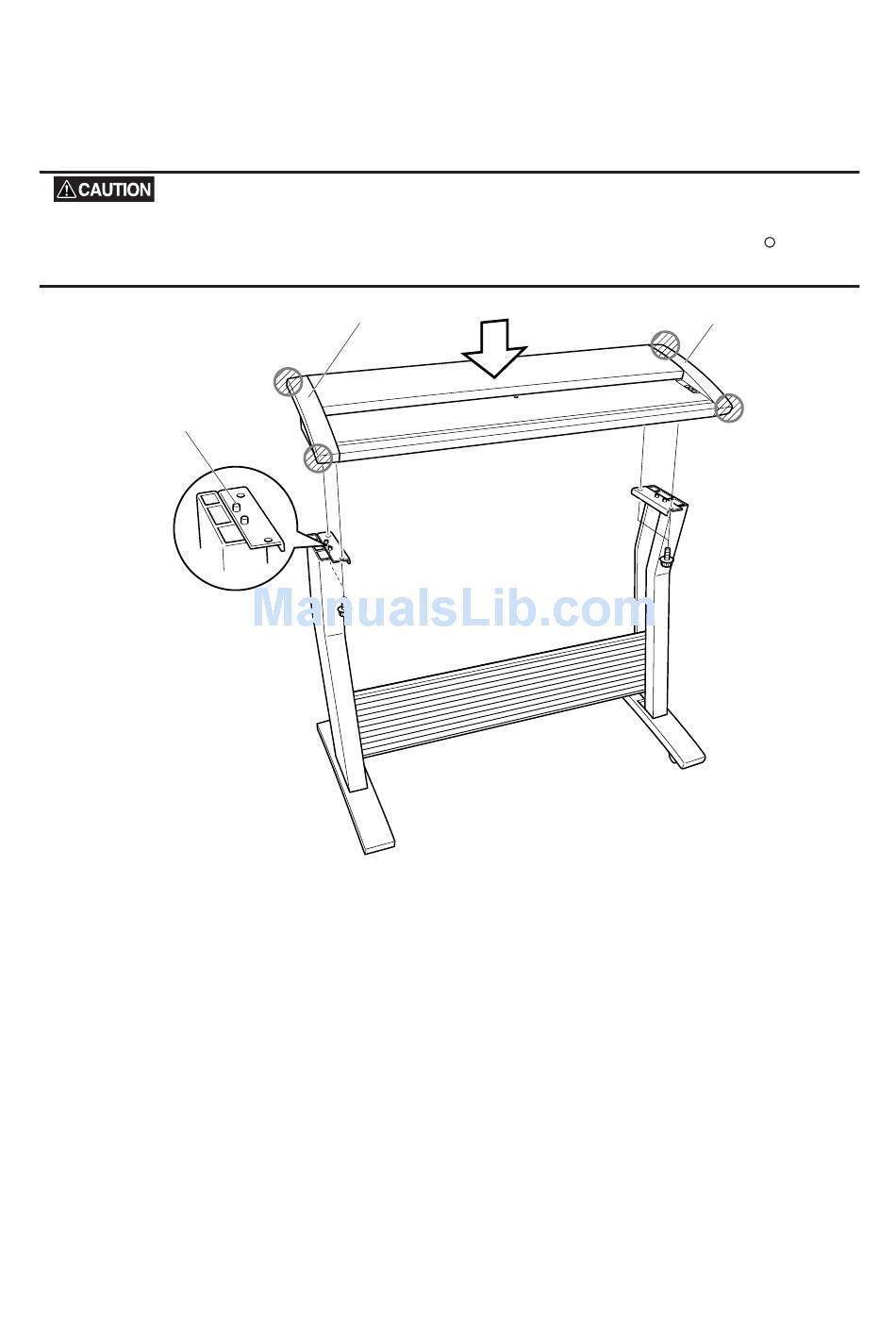

(2) Hold the scanner unit by the side covers on both sides, and mount the scanner so that the positioning
pins on the stand align with the positioning holes on the underside of the scanner. Secure using the four
bolts.
Holding the scanner by the rear part of the top cover may cause damage to the scanner or to the person doing the
installation. Always hold the scanner by the side covers, at the positions indicated by the shaded circles
ure below.
Positioning pin
(3) Fully tighten the four bolts on the center bar to secure the side stays (see the diagram for step (1)).
(4) Before beginning scanner operation, be sure to remove the plastic sheet from the bottom of the document
hold-down unit. Please refer to Section 8.2 "Document Hold-Down Unit" for the removal and mounting
procedures.
CS2000-UM-251-9370
Side cover
3-2
3. PREPARING TO OPERATE THE SCANNER
Side cover
in the fig-
