8.9 Main Board

Disassembly procedure
8.2
p.8-2
Detaching the document
hold-down unit
When securing the main board to the jig (BSB-335)

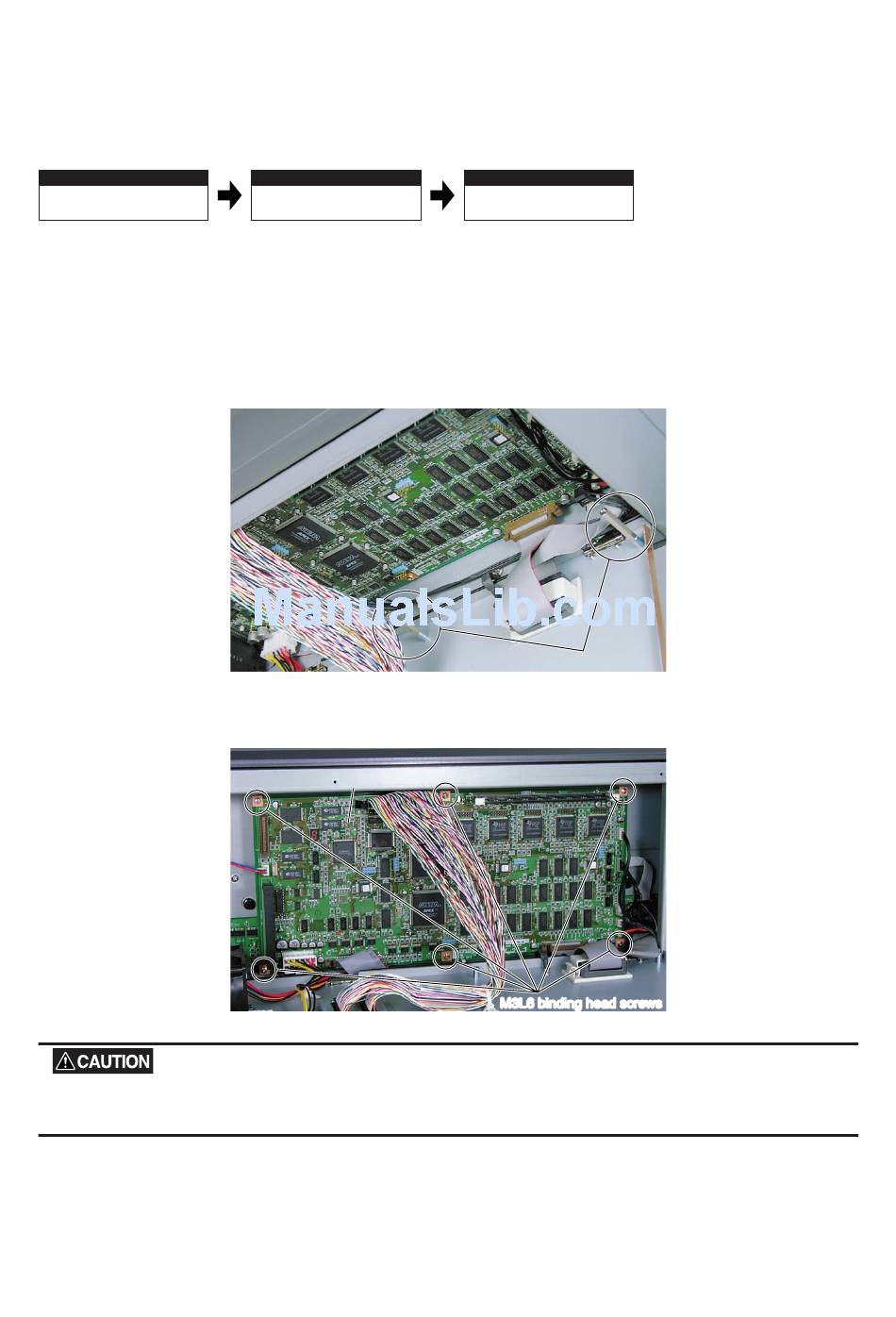

Detaching the main board
(1) Attach the jig (BSB-335) to the inside of the large bottom plate.
(2) Remove the six silver M3L6 binding head screws while supporting the main board with one hand.
To prevent the main board from falling and damaging its connectors and wiring when the screws are removed, be
sure to support the board.
CS2000-UM-251-9370
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
8.8
p.8-9
Detaching the large
bottom plate
Main board
8-10
This Section
Detaching the main board
BSB-335
M3L6 binding head screws M3L6 binding head scre ws
