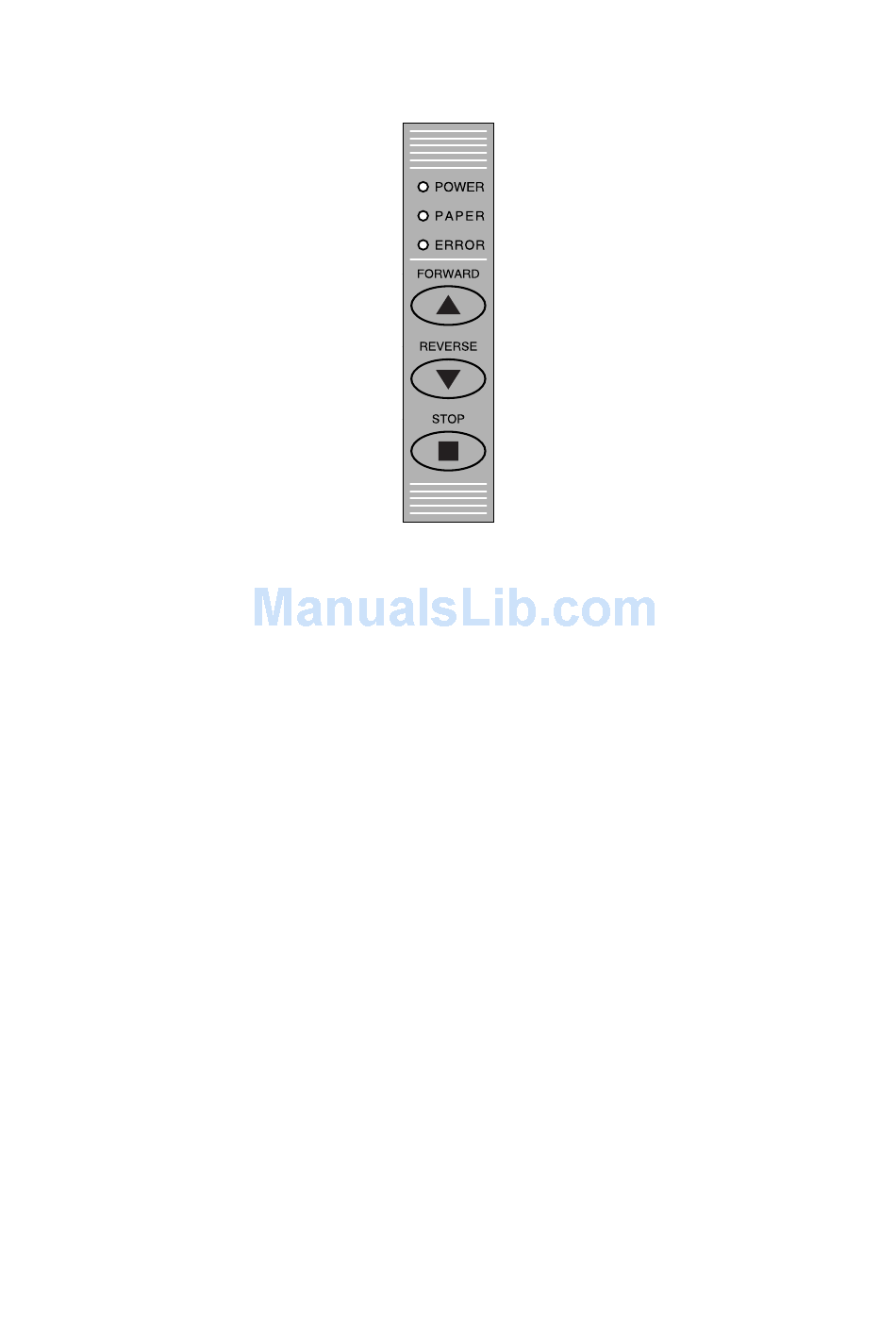

Control panel
POWER LED
Unlit : Is unlit while the scanner is turned off.
Lit : Lights (green) when the scanner is turned and remains lit while it is operating normally.
PAPER LED
Unlit : Normal status (Local status).
Lit : Lights (green) when the scanner enters Scan READY status.
Flashing : Flashes (green) while image data is being scanned.
ERROR LED
Lit : Lights (red) to indicate a hardware error.
Flashing : Flashes (red) when a document is detected during the self-test when the scanner is turned on or
when the scanning is suspended by pressing the STOP key.
Unlit : Normal status
FORWARD key
Advances the document into the scanner. When this key is pressed in Scan READY status, the Scan
READY status is cancelled and the document is ejected toward the rear of the scanner.
REVERSE key
Feeds the document toward you. When this key is pressed in Scan READY status, the Scan READY status
is cancelled and the document is ejected toward the front of the scanner.
STOP key
Compulsorily stops scanning of the document.
CS2000-UM-251-9370 2-2
2. PART NAMES AND FUNCTIONS
