8.4 Side Covers
Disassembly procedure
8.2
p.8-2
Detaching the document
hold-down unit

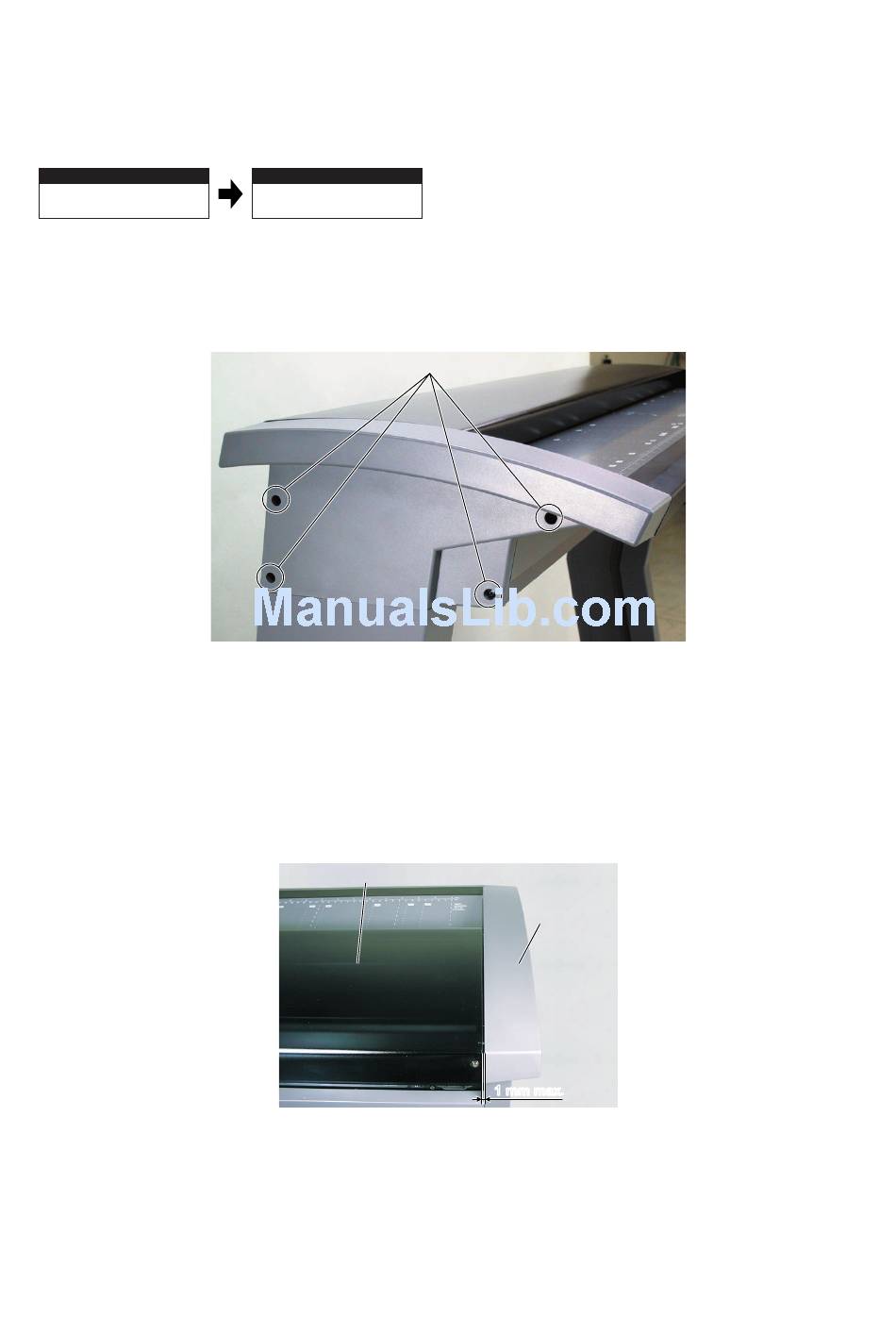

Detaching the side covers
(1) Remove the four black M4L6 binding head screws on each side of the scanner unit. (Both sides)
(2) Detach the side covers.
Reattaching the side covers
(1) Reattach the side covers in the reverse order in which they were detached.
(2) Make sure the clearance between the top cover and each of the side covers is 1 mm or less.
CS2000-UM-251-9370
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
This Section
Detaching the side covers
M4L6 binding head screws
Top cover
8-5
Side cover
1 mm max.
1 mm max.
