GRAPHTEC CS2000 Service Manual page 112

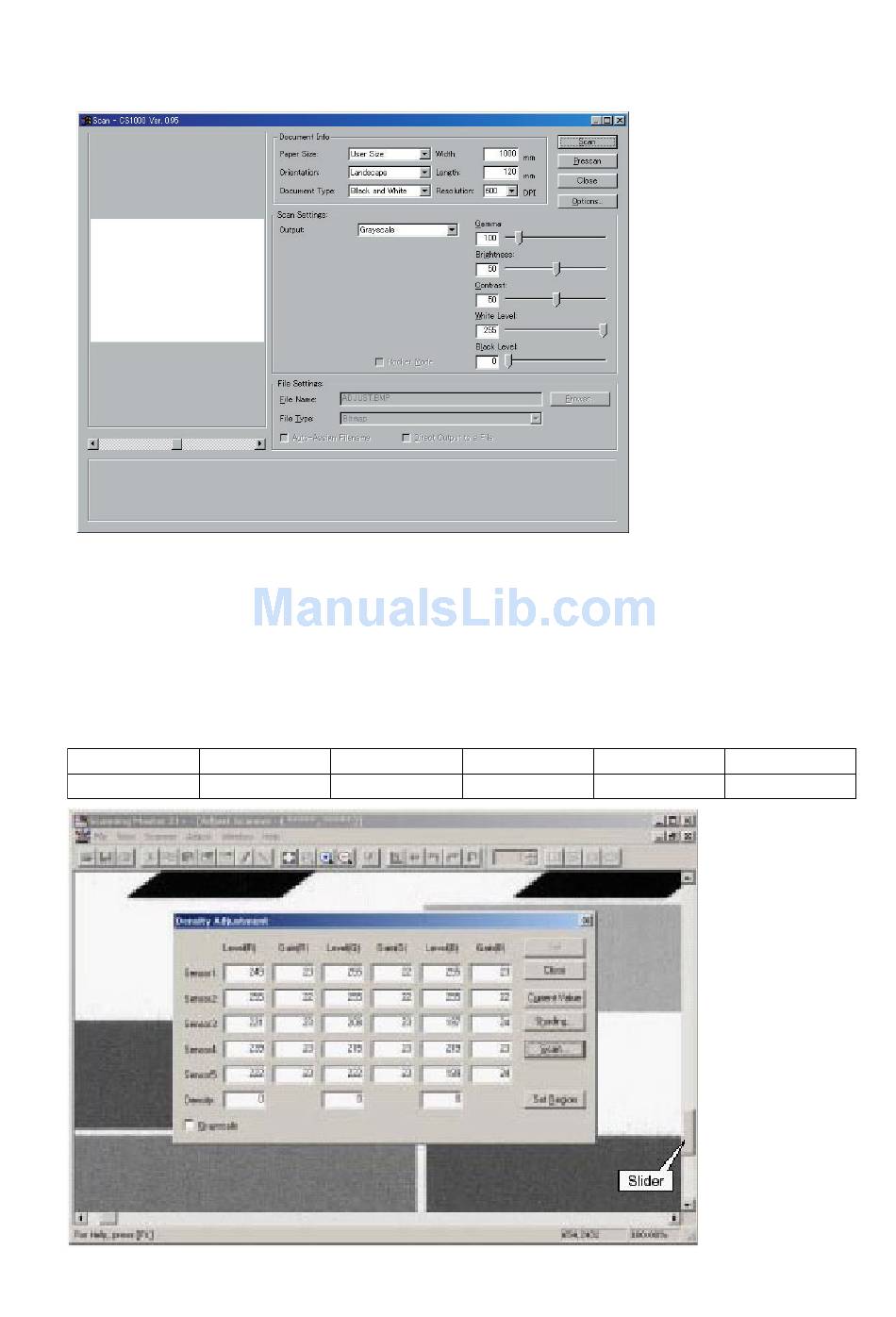

(5) Click the "Scan" button. The following dialog box will appear.
Select the following for "Document Info" and "Scan Settings":
Paper Size: User-defined, Width: 1000 mm, Length: 120 mm, Resolution: 600 dpi, Output: Grayscale,
Gamma: 100, Brightness: 50, Contrast: 50
(6) Click "Scan".
(7) Check the scanned results for the presence of undesired lines. If undesired black lines are present,
check which sensor they correspond to.
Table: X coordinate range scanned by each sensor
Sensor
X coordinates
CS2000-UM-251-9370
1 2
0 to 4704 4704 to 9440
10. ADJUSTMENTS USING THE SOFTWARE
3
9440 to 14176 14176 to 18912 18912 to 23616
10-18
4 5
