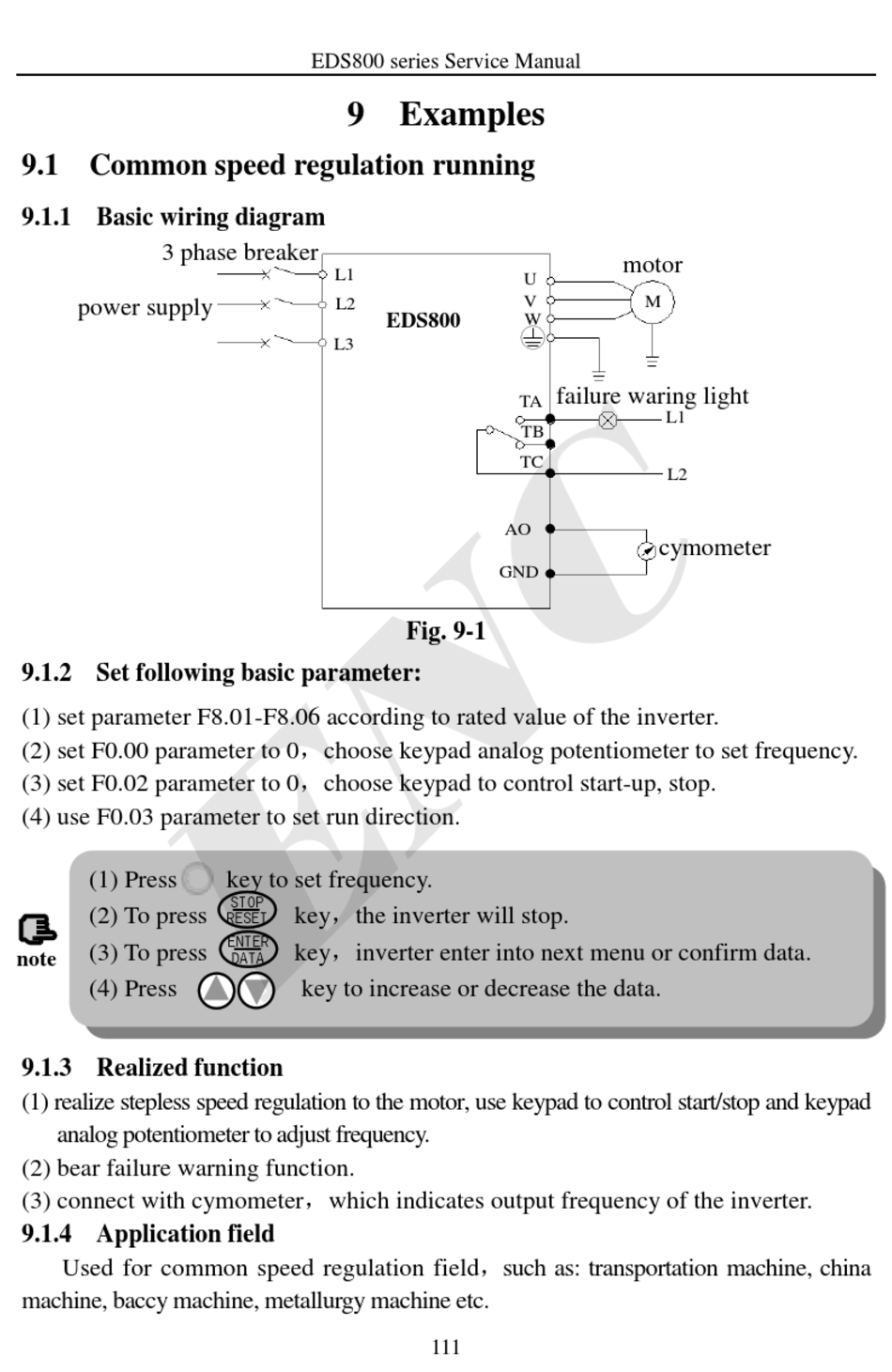

9.1 Common speed regulation running

9.1.1 Basic wiring diagram
3 phase breaker
power supply
9.1.2 Set following basic parameter:
(1) set parameter F8.01-F8.06 according to rated value of the inverter.
(2) set F0.00 parameter to 0，choose keypad analog potentiometer to set frequency.
(3) set F0.02 parameter to 0，choose keypad to control start-up, stop.
(4) use F0.03 parameter to set run direction.
(1) Press
(2) To press
(3) To press
note
(4) Press
9.1.3 Realized function
(1) realize stepless speed regulation to the motor, use keypad to control start/stop and keypad
analog potentiometer to adjust frequency.
(2) bear failure warning function.
(3) connect with cymometer，which indicates output frequency of the inverter.
9.1.4 Application field
Used for common speed regulation field，such as: transportation machine, china
machine, baccy machine, metallurgy machine etc.
EDS800 series Service Manual

9 Examples

L1
L2
EDS800
L3
key to set frequency.
STOP
key，the inverter will stop.
RESET
ENTER
key，inverter enter into next menu or confirm data.
DATA
key to increase or decrease the data.
U
V
W
failure waring light
TA
TB
ENTER
DATA
TC
AO
GND
Fig. 9-1
111
motor
M
L1
L2
cymometer
