and stops for exterior failure, output indicator signal.
9 : inverter zero speed running. When the inverter output zero frequency
but
in run status, output indicator signal.
10 : In PLC run process
11: Simple PLC segment run finished. After simple PLC current segment run
is finished，output indicator signal(single pulse signal，width 500ms).
12 : PLC finish one cycle run
13 : reserved
14 : Inverter is ready for run( RDY). If this signal is effective, shows that
bus-bar voltage is normal and run prohibition terminal is ineffective, the inverter can
receive start-up command.
15 : Inverter fault. If failure takes place when the inverter is running, the
inverter output indicator signal.
16 : Traverse high&low limit restriction. After choosing traverse
function, if frequency fluctuant range based on center frequency of traverse is above
high limit frequency F0.10 or under low limit frequency F0.11, the inverter will
output indicator signal, as shown in Fig. 6-19.
17 : Interior counter final value arrive
18 : Interior counter specified value arrive
17~18 please refer to function description of F5.25~F5.26.
19 : Set runtime arrive. When accumulative runtime of the inverter (F2.52)
reach set runtime(F2.51)，output indicator signal.
20 : Interior timer timing arrive. Refer to function description for F5.27.
21 : Reserved
22 : FWD running
23 : REV running
EDS800 series Service Manual
High limit
Low limit
OC: traverse
fluctuation

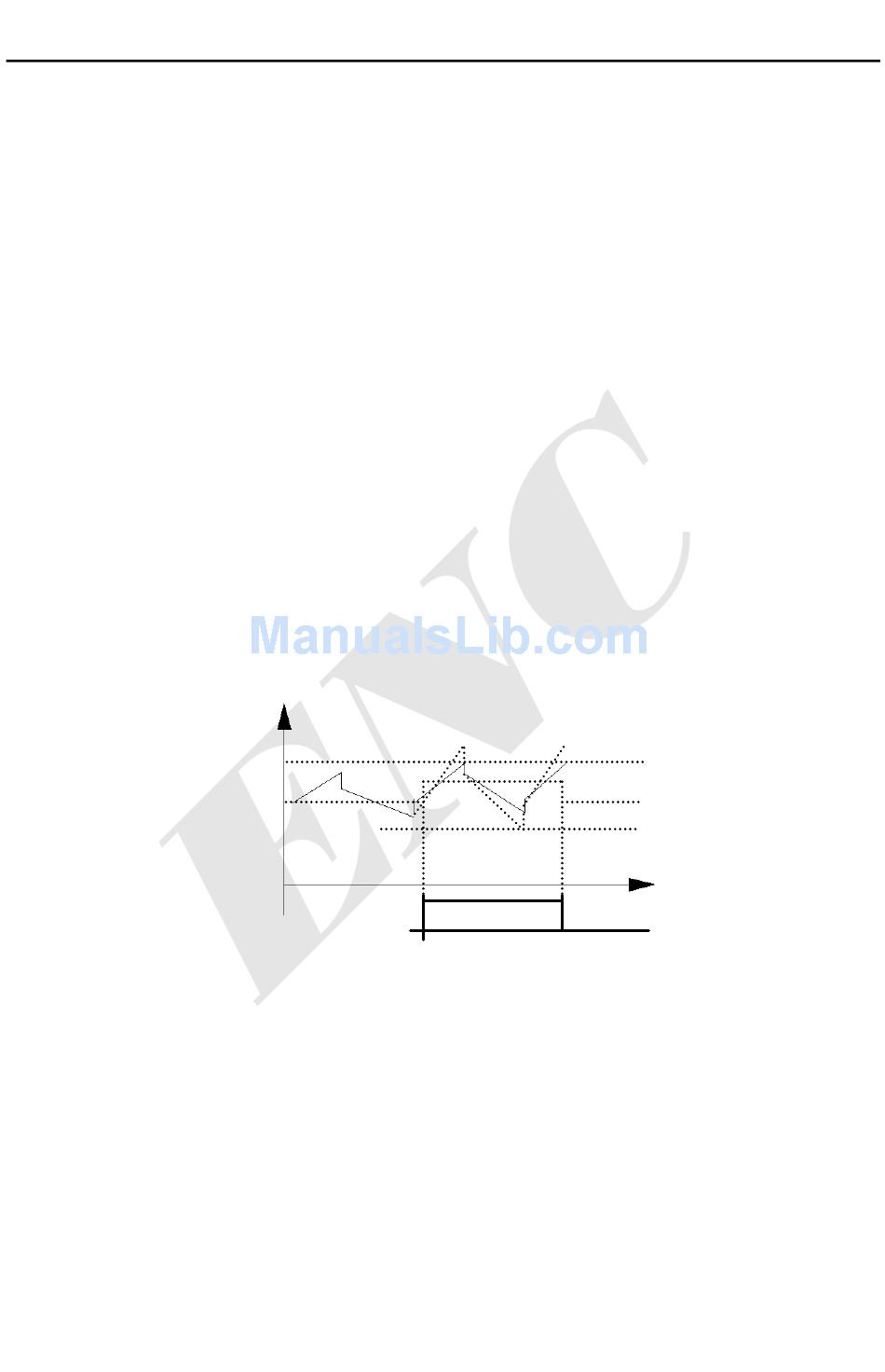

Fig.6-19 traverse range restriction
