exceeds 50m.But voltage drop of AC output reactor must be considered. Improve
input output voltage of the inverter or let the motor in lower volume to avoid
burning off the motor.
(8) Complete ground wire
Inverter and motor must be earthed and grounding resistor smaller than
10Ω.Grounding wire should be shorter enough and wire diameter be bigger
enough(not smaller than 3.5mm²):

3.4.2 Main loop terminal wiring

For main loop input output terminal, see table 3-1.

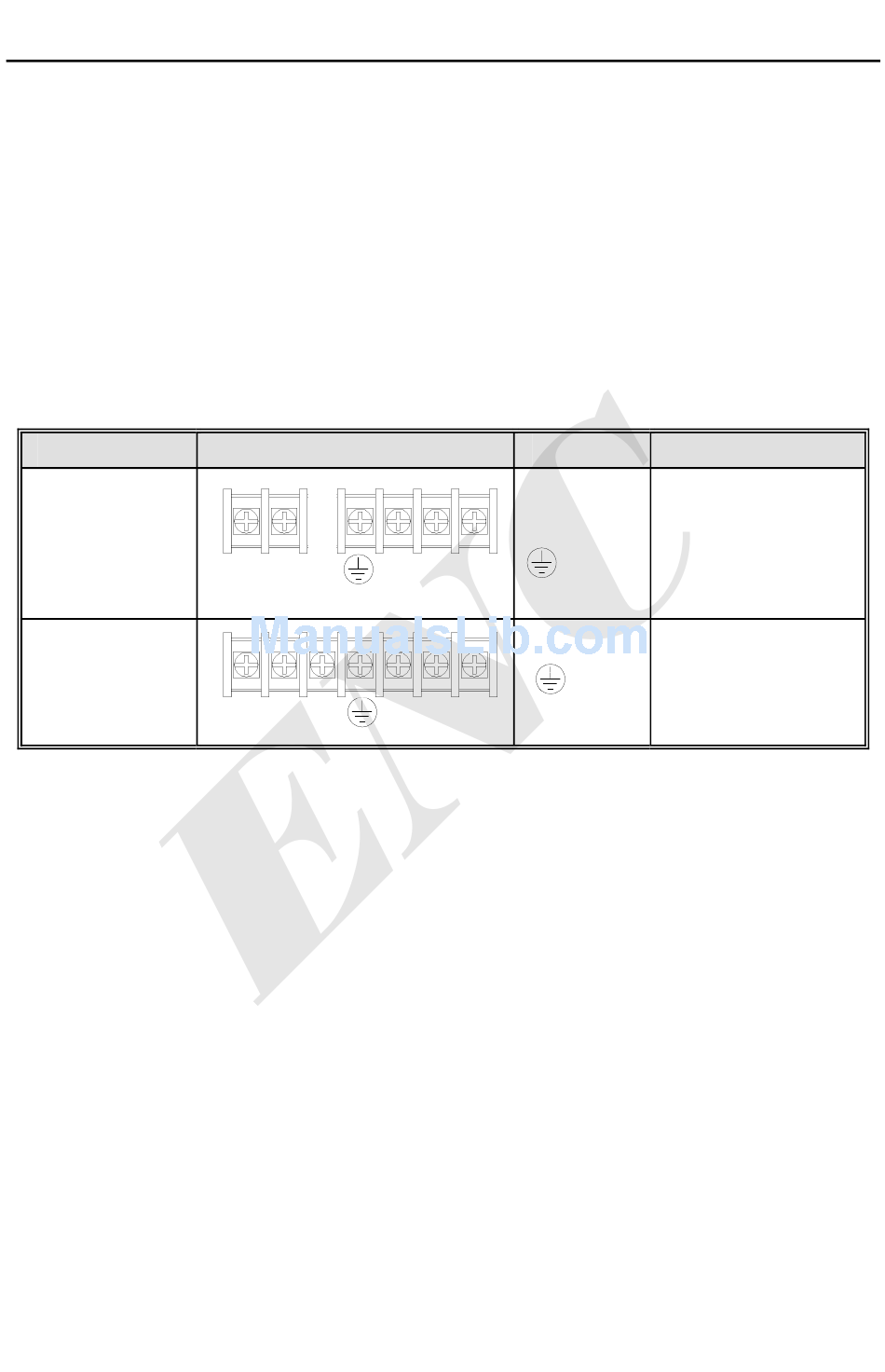

Table 3-1 main loop input output terminal description
Adapted type
EDS800-2S0002N
~
EDS800-2S0015N
EDS800-4T0007N
EDS800-4T0015N
EDS800 series Service Manual
Main loop terminal
L1 L2
U
L1 L2 L3
U
End name
L1
L2
W
V
U,V,W
L1,L2,L3
V W
U,V,W
13
Function description
Zero wire
live wire
Grounding terminal
3 phase AC output end
3 phase AC intput end
Grounding terminal
3 phase AC output end
