and function are the same as F2.30.
F2.45 Jumping freq. 1
F2.46 Jumping freq. 1 range
F2.47 Jumping freq. 2
F2.48 Jumping freq. 2 range
F2.49 Jumping freq. 3
F2.50 Jumping freq. 3 range
F2.45～F2.50 function is set for keeping inverter output frequency away from
resonance frequency of mechanical load.
Inverter set frequency can jump around some frequency point according to mode
shown in Fig. 6-12, at most 3 jumping range can be defined.
Jumping freq. 3
Jumping freq. 2
Jumping freq. 1
F2.51 Set run time
F2.52 Run time accumulation
After run accumulative time reach set run time (F2.51)，the inverter will output
indicator signal，please refer to F5.10 function introduction.
F2.52 denotes accumulative run time of the inverter from leaving factory to now.
Reserved
F2.53

6.4 Closed-loop run control parameter: F3

Analog feedback control system:
Input pressure specified value through VCI port, send 4~20mA feedback value
of pressure sensor to inverter CCI input port，make up of analog closed-loop control
EDS800 series Service Manual
Range：0.00－400.00Hz
Range：0.00－30.00Hz
Range：0.00－400.00Hz
Range：0.00－30.00Hz
Range：0.00－400.00Hz
Range：0.00－30.00Hz
Set freq. after adjusted
Jumping range 1

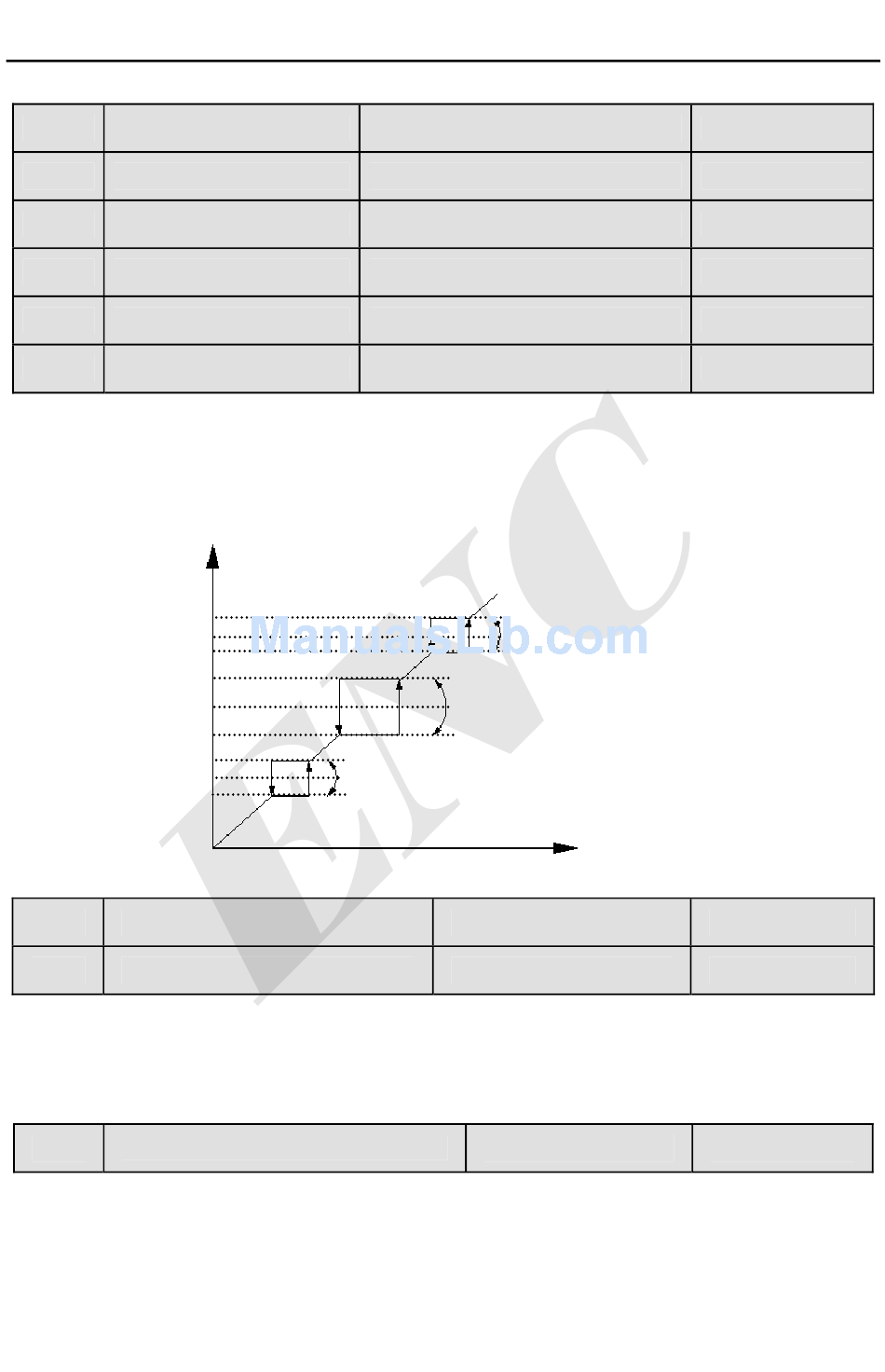

Fig.6-12 jumping frequency and range graph
Jumping range 3
Jumping range 2
Set freq.
Range：0－65535h
Range：0－65535h
