2: PLC run
The inverter will enter into PLC run mode and run according to run mode
preset(see F4 group function code description) through setting PLC function
effective parameter(F4.00 last bit≠0). Can make PLC run mode ineffective and
switch to lower level run mode by multi-function terminal (function 21).
3: multi-section speed run
By nonzero combination of multi-function terminal(1, 2, 3, 4 function)，choose
multisection frequency 1~15(F2.30~F2.44) to run at multisection speed.
4: traverse run
The inverter will enter into traverse run mode when traverse function effective
parameter（F6.00=1）is set. Set relevant traverse run special parameter according to
textile traverse craft to realize traverse run.
5: common run
Common open loop run mode of general inverter.
In above 6 kinds of run mode except "jog run" the inverter can run according to
kinds of frequency setting method. In"PID run""PLC run""multisection
run""common run"mode the inverter can also carry on pendular frequency
adjustment.

4.2 Operation and use of key board

4.2.1 Keypad layout

Keypad is main unit for receiving command, displaying parameter. Outer
dimension of EN-KB6 is as Fig.4-2:
Failure alarm indicator light
Mode indicator light
Digital display (LED)
Stop, reset key
supervision key
Program, exit key

4.2.2 Keypad function description

There are 8 key-presses and one adjusting button for analog potentiometer on
inverter Keypad and function definition of each key is as shown in table 4-1.
EDS800 series Service Manual
Run key

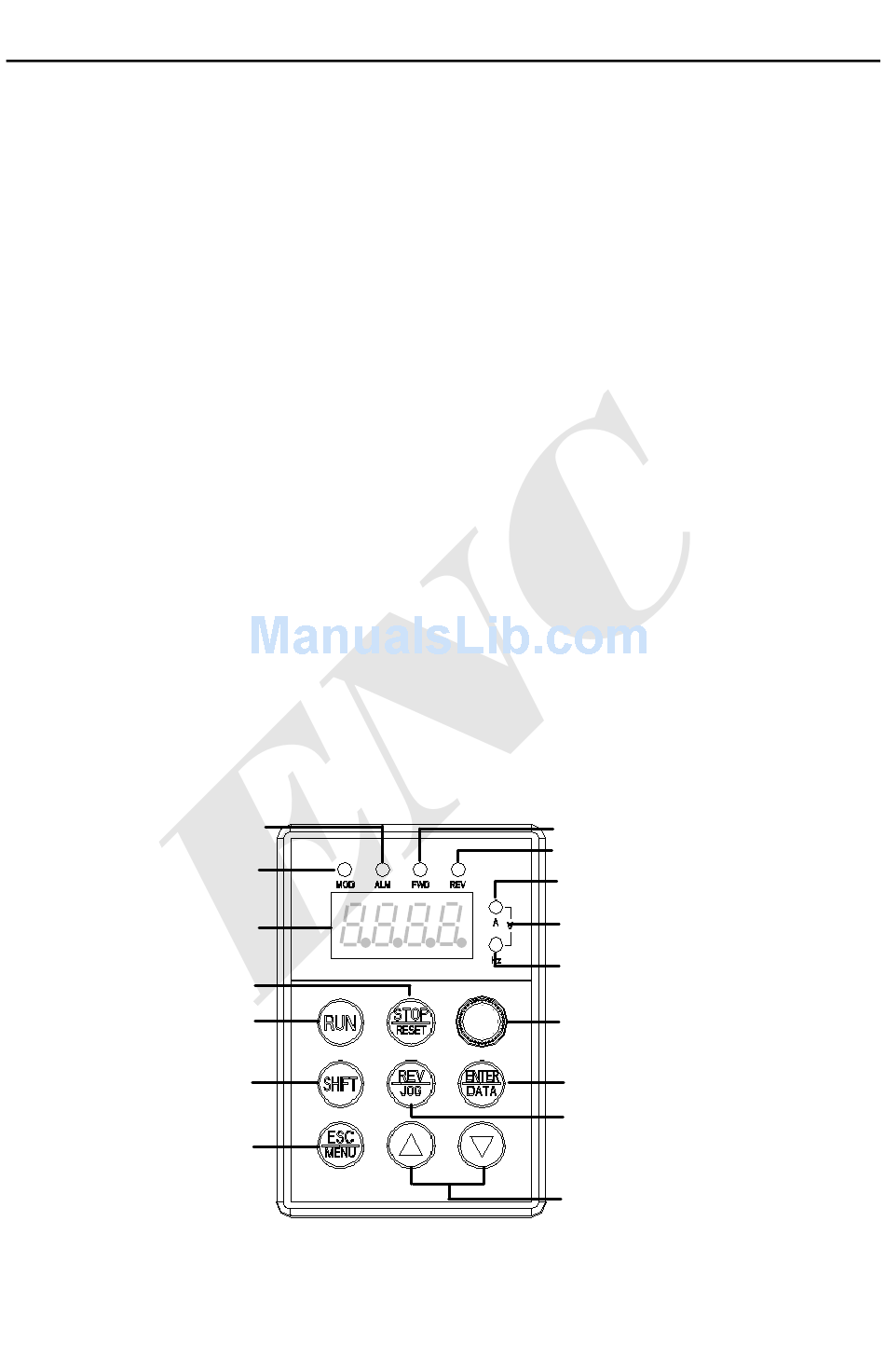

Fig.4-2 keypad layout sketch(EN-KB5)
Forward run indicator light
Reverse run indicator light
Current unit（A）
Voltage unit（V）
Frequency unit（Hz）
Analog potentiometer
Function, data key
Rev/Jog key
Data modification key
